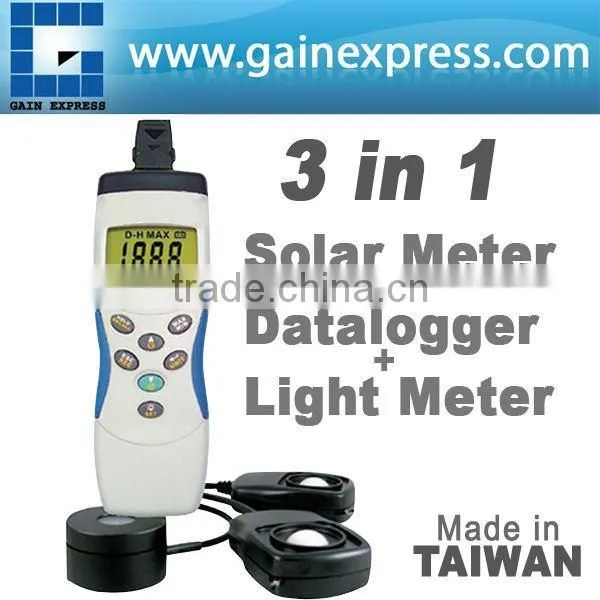

Portable 3 in 1 Digital Solar Power Light LUX UVA Meter and Data Logger Made in Taiwan

Portable 3 in 1 Digital Solar Power Light LUX UVA Meter and Data Logger Made in Taiwan thumbnail-1
Portable 3 in 1 Digital Solar Power Light LUX UVA Meter and Data Logger Made in Taiwan photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Model Number:
M0198208
Contact Supplier Request Quote Chat Now
Gain Express Holdings Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Model Number M0198208

Features:

  • 3 in 1 Max / Min / Average and data hold
  • Auto power off and adjustable from 0 to 99min
  • Backlight Function
  • Display Real-time clock
  • Real Zero function
  • REL (Relative) function
  • Great for test PV modules or arrays in the field
  • Various applications measuring light intensity at wafer plane of mask aligners
  • complies with all essential health and safety requirements set out in European Directives (CE marking)
  • Made in Taiwan



Specification:

  • Display :  3-3/4 digits Max.3999
  • Range
    • Solar power : 40W / cm², 400 W /cm².4000W / cm²,20m W / cm²
    • LUX:  40, 400, 4000, 40000, 400000 LUX
      • 40,400,4000,40000 Foot-Candle (FC)
    • UVA: 40, 400, 1000 W / cm
      • 13,127,634 Btu / ft ² h
  • Resolution
    • Solar Power : 0.01,0.1,1W/m
      • 1.0.1.1 Btu/ft²h
    • LUX : 0.01,0.1,1.10,100 LUX
      • 0.01,0.1, 1,10 Foot Candle (FC)
    • UVA : 0.01 W, 0.1W
      •  1W , 0.01mW
  • Accuracy
    • Solar Power : +/- 5%
    • LUX : +/-3% ( Calibrated to standard incandescent lamp.28556K)
      • +/-6% (Others visible light source)
    • UVA : +/-3%
  • Wave length :
    • Solar Power : -40~1100nm
    • Lux : 320~390nm
    • UVA : 320~390nm
  • Data logging capacity :  45000 records
  • Data Output : USB PC serial interface
  • Sampling Time :  Approx.0.4sec
  • Operating temp. & RH :  0°C to 50 °C below 80% RH
  • Dimension :  159 x 55 x 38mm



Set Inlcudes:

  • 1 x  3 in 1 Solar Power Light Meter Data logger
  • 1 x Instruction Manual
