Handheld Video Inspection Endoscope/ Snake Scope Pipe Camera 360 Image Rotation Borescope

Features

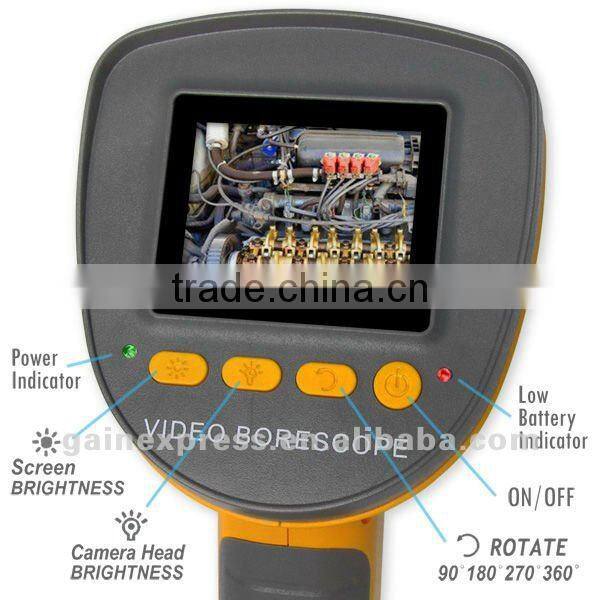

• 2.4" TFT LCD Monitor
• Camera Lens Diameter: 10mm

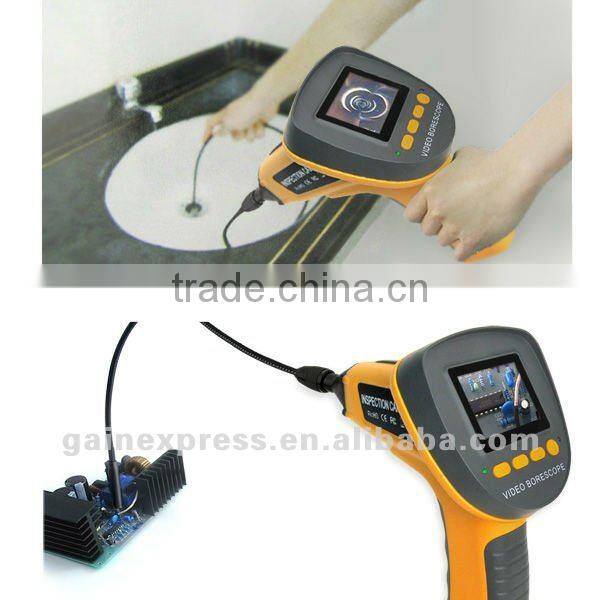

• Allows for easy surveying of small, hard-to-reach places
• Ergonomic advanced design, flexible and convenient to use
• Display resolution: 320 x 240 pixels
• Adjustable LCD screen brightness
• Adjustable camera head brightness
• With IP67 waterproof level rating
• Comes with mirror, hook and magnet tips
• Low battery & power indicator

Specifications

• Display :2.4" TFT LCD Screen 320 x 240 pixels with adjustable brightness
• Functions: Allows for visual inspection for hard-to-reach area
• Camera Head:
  • Lens Diameter: 10mm
  • Image Sensor: optical format 1/9 CMOS
  • Pixel Count: 320 x 240
  • Exposure: 30 ~ 80mm
  • Auto White Balance
  • Distortion: <3.7%
  • Power Consumption 3~5W
  • Housing: Aluminum
  • Field of View (FOV): 54°
  • Water Splash Resistance (IP67)
• Flexible Tube
  • Lenght : 1M Cable
  • Diameter : 6.8mm
  • Water Splash Resistance (IP67)
  • Removeable
• Light Source

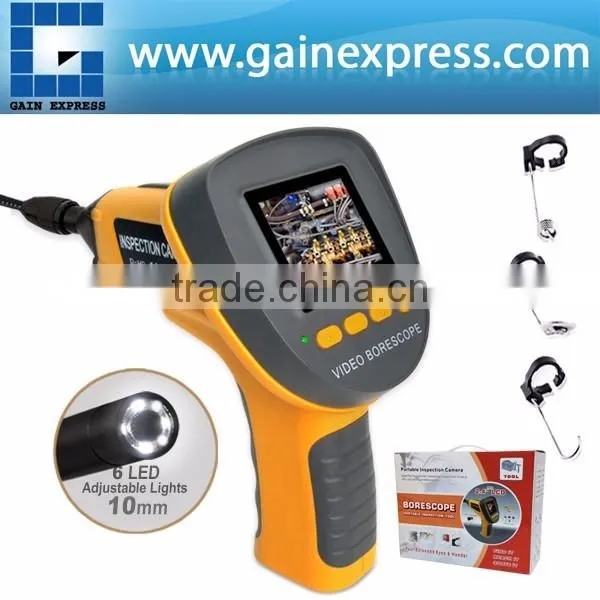

  • Lamps : 6pcs LED with 0Lux
  • Manual Brightness Control
  • Life Span : 8000hrs median
  • Weight : 8g
• Operating Environment
  • Tip Operating Temperature: -20 ~ 60°C (-4 ~ 140°F)
  • Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)
  • Relative Humidity: 15 ~ 85%RH
• Hazardous Environments: Not rated for use in hazardous environments

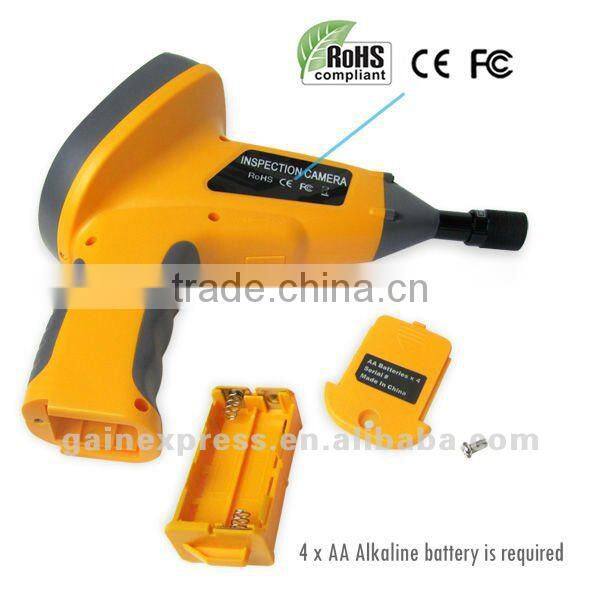

• Battery: 4 x 1.5 AA type Alkaline Batteries (not included)
• Weight (main unit): 245g (battery excluded)

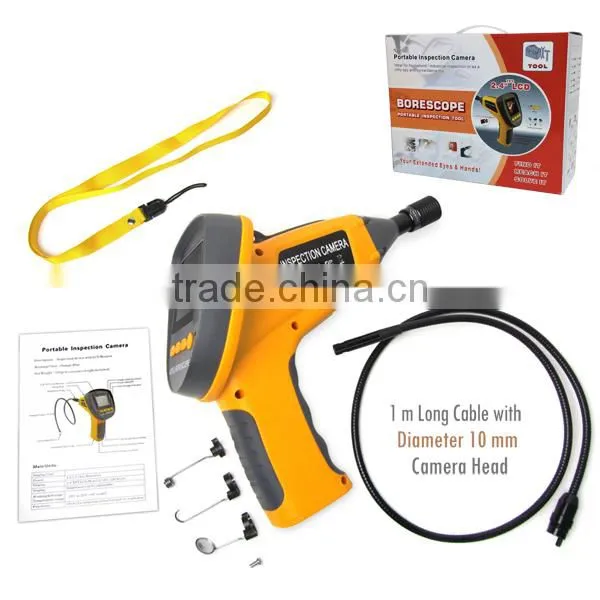

Set includes

• 1 x Handheld Industrial Endoscope
• 1 x Standard 1m Flexible Tube w/ 10mm dia. Waterproof Camera Head

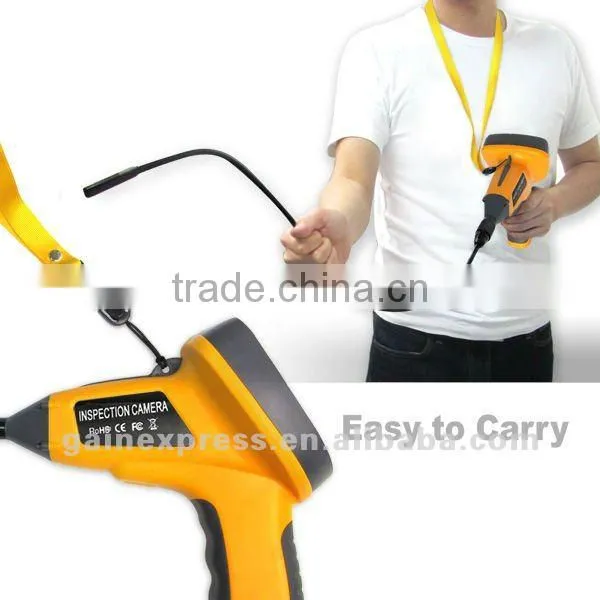

• 1 x Hand-strap
• 1 x Mirror Tip
• 1 x Magnet Tip
• 1 x Hook Tip
• 1 x Tiny Screw
• 1 x English User's Manual
• 1 x Colored Paper Box

Optional Item(s): (not included in set):

Please inform us if you want any of the following optional items to be included in your order

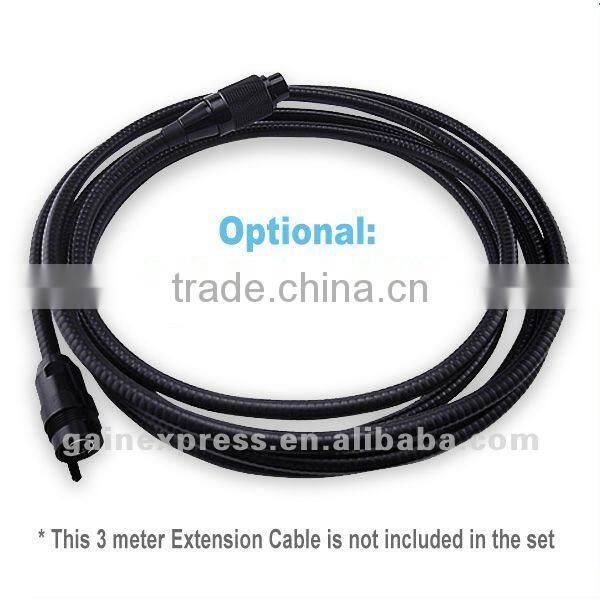

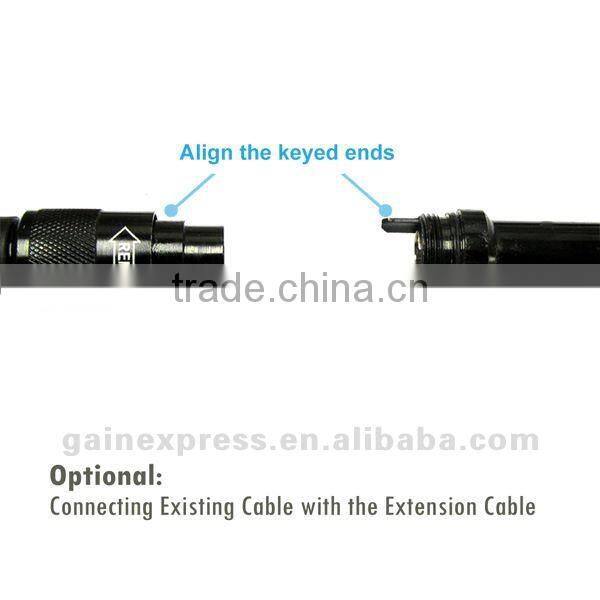

• 3m (9.9ft) extension cable







































Scan here to watch the video for this product:
