3.5" Video Inspection Waterproof Camera Endoscope/ Borescope Snake Scope Rotate 1 Meter Cable + 9.5 mm Diameter With LED

A versatile tool that comes with an ultra sharp LCD image and bright LED light with adjustable control so you always have a clear view in tight spots. With fully adjustable screen and handle angle means you always have a comfortable view no matter where you're using it.

Helps you find lost small or tiny objects and view the internals of a combustion engine for cracks. Its is great for both professional and home use. Built with high impact plastic and a durable screen, making it a great addition to anyones tool box. Meet your curiosity and Have fun!

Great Idea for:

• Checking through walls
• Construction Site Tools
• Parts Assembly
• Science Education
• Workshop
• Laboratories
• Engine repair and Maintenance
• Checking under vehicles
• Pipe review and repair
• Down the drains
• Hard-to-reach areas
• Tight Area Surveillance
• Explore under water or under water surveillance
• Industrial inspection

Features

• 3.5" TFT LCD Full Color Screen
• Adjustable Brightness value Contrast or Color in the LCD screen
• Built in variable brightness LED camera lights
• Fit your eye’s and hand’s angle with adjustable handle (0º, 45º, 80º) & changeable screen angle (0º to 90º)
• 1M flexible probe with IPX67 waterproof camera head & sensor
• 4 LED Lights with adjustable light intensity & 9.5mm outer lens
• User-friendly Graphic (icon) UI

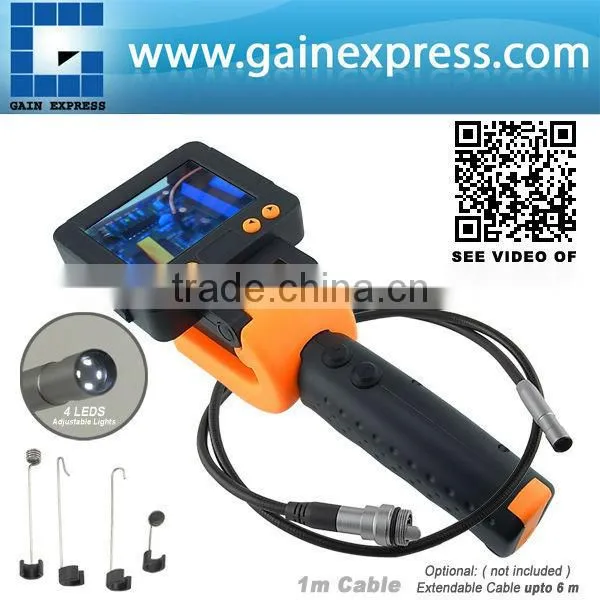

• Extendable cable length to upto 6 meters

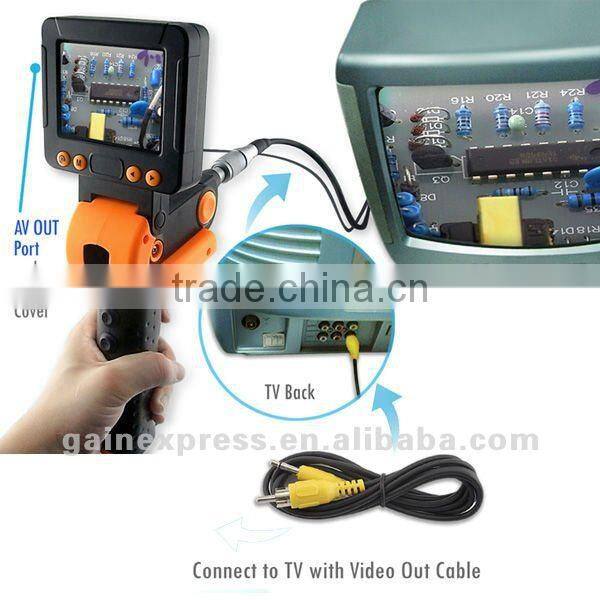

• With TV Out function
• Able to inspect under water, with waterproof camera head and tube
• Tough, but still clear and soft enough
• With FCC, CE & RoHS standards
• Stable and high quality products
• Maximum water depth of 1M for IPX67 waterproof camera head can be submerged

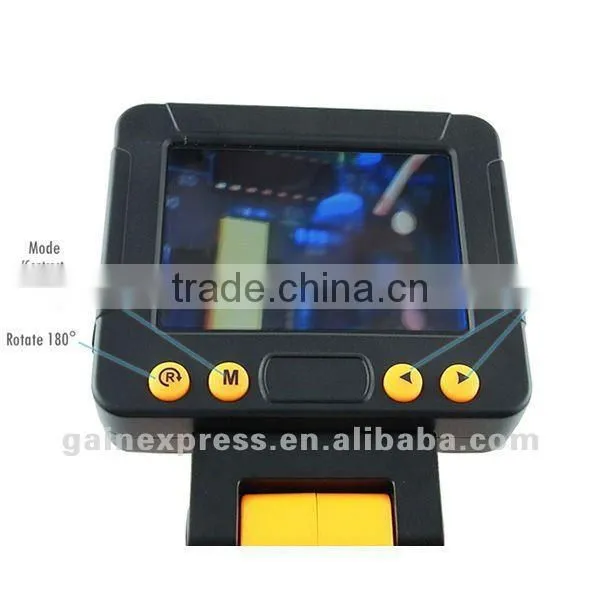

• Image rotation function
• Professional service

Specifications

• W 3.5" TFT LCD Screen (QVGA 320 x 240, 16.7M colors)
• TV Out Function
• Video Format/Sytem: PAL (It works for PAL & multi-system TV)
• Camera & Tube: water resistant (IPX67)
• Camera & Flexible Cable:

  • Outer Lens Diameter: 9.5mm
  • CMOS Camera Image Sensor: 1/9" VGA CMOS
  • Array Size: 640 x 480
  • Resolution: 0.3M pixels
  • Max Image Transfer Rate: 30fps for VGA
  • Sensitivity: 1800mv/(Lux.sec)
  • Focal Range: 2 ~ 15cm
  • Optimal Focal Range: 4cm
  • Flexible Cable

    • Length: 1m
    • Outer Diameter: 5.8mm
    • Minimum Bending Radius: 60°
  • LED Light: 4 LED with adjustable brightness control
  • Water Splash Resistance (IPX67)
• Lens: F2.8 2.2mm with 70-75° view angle lens
• Visual Distance Range: 20 ~ 150mm (recommended at 40mm)
• Display resolutions: Image: 640*480 pixels

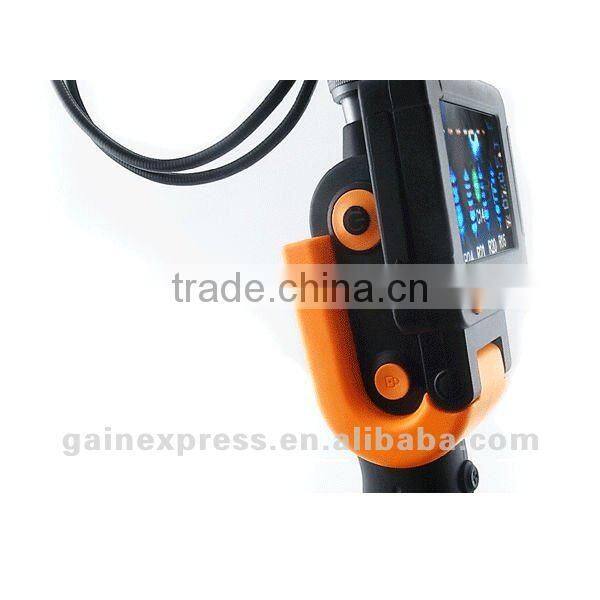

• Adjustable Handle: 0° 45° & 80°

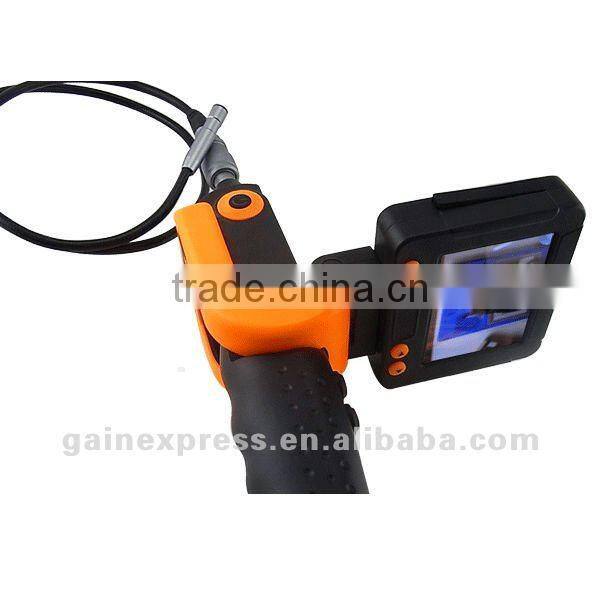

• Changeable Screen Angle: 0 ~ 90°
• Temperature & Humidity

  • Operating: 0~50°C T.B.D.
  • Storage: 20~65°C T.B.D.

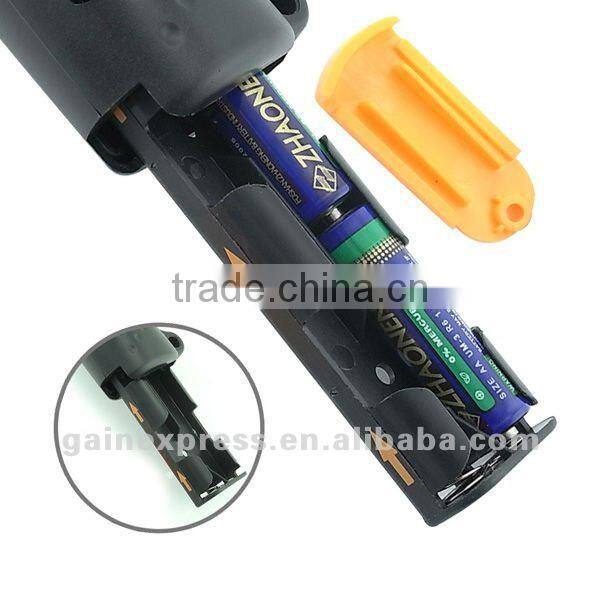

• Battery: 4 x 1.5V AA type Alkaline Battery (working time: approx. 3-4 hours) (included)
• Dimension

  • 3.5" Monitor (w/ Border only): 100 x 89 x 24mm (W x H x T)
  • Main Unit with Handle (straighten postition): 100 x 290 x 78mm ( W x H x T)
• Weight

  • main unit: 370g (battery excluded)
  • whole package: 1110g (extension cable not included)

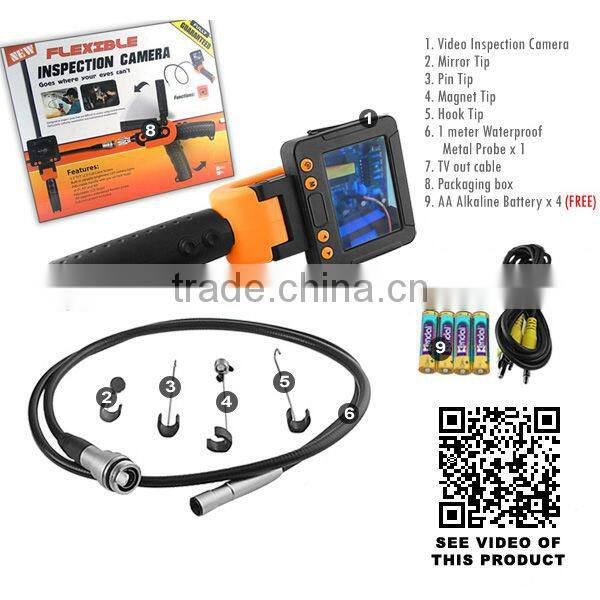

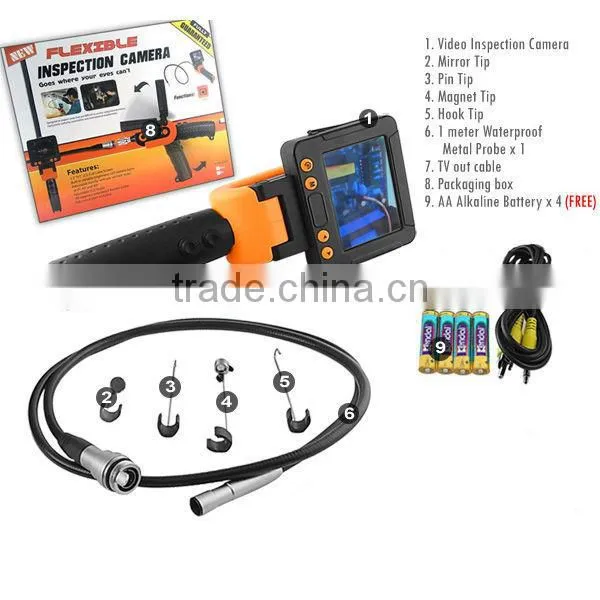

Set Includes

• 1 x 3.5" TFT LCD Video Inspection Camera
• 1 x Standard 1 meter Waterproof Metal Probe with 9.5mm Camera Head

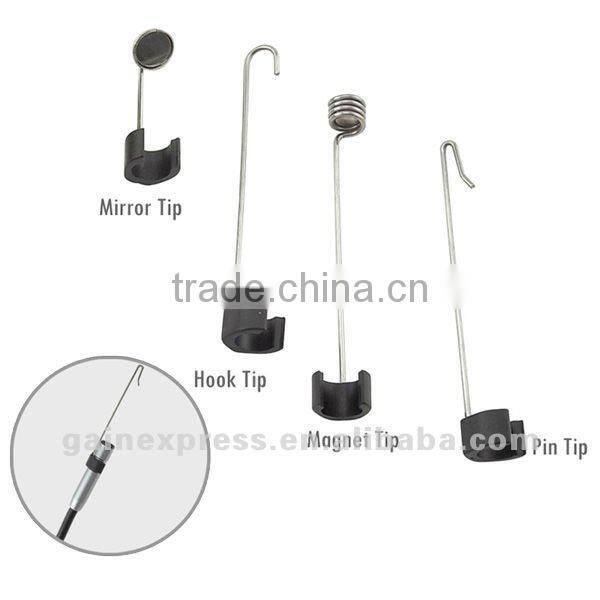

• 1 x Pin Tip
• 1 x Hook Tip
• 1 x Mirror Tip
• 1 x Magnet Tip
• 1 x TV Out Cable
• 4 x AA Alkaline Battery ( FREE )
• 1 x English Instruction Manual
• Standard Factory Packaging



  We sell this product everywhere, except South Korea. We are no longer shipping to South Korea.
