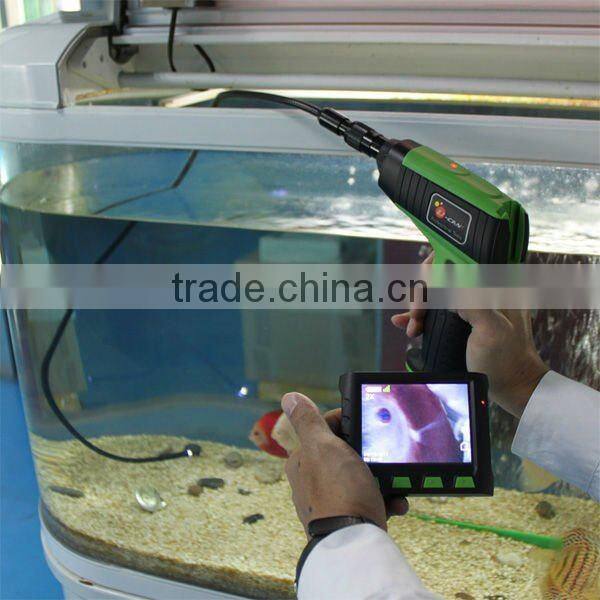

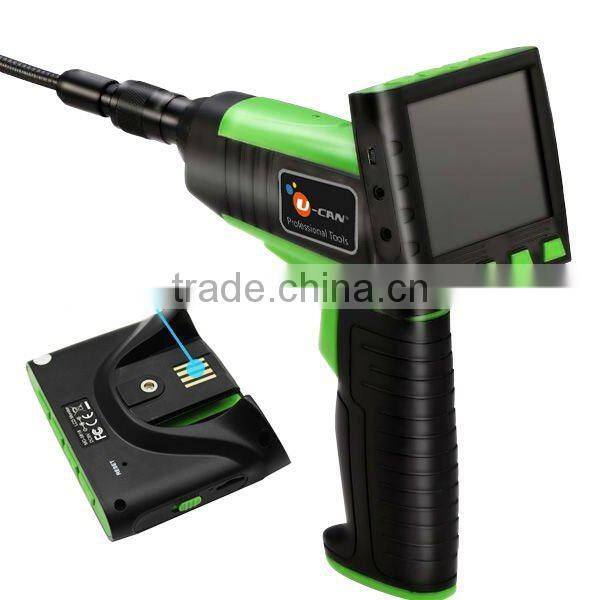

This Large 3.5" Color LCD Wireless Video Inspection Camera with USB uses opto-electronic technology to investigate hard-to-reach area. Compared with traditional inspection camera, the LCD receiver is detachable it can transmit the video signal between the camera grip and the receiver within 10m.The LCD Receiver has built-in Lithium battery which is rechargeable with AC adapter. It supports 4X zoom of image. It has microSD slot so that you can record the Real Time Video or capture photos and save data by micro SD card. It also has VIDEO OUT and USB interface for outputting video and image to TV and PC. The camera head of probe has 4 pcs of built-in LED light (with Brightness Control) to illuminate the inspection area. The 2m Flexible Tube with 9 mm diameter is waterproof so that you can inspect area under water, gaps and holes.
The tool set also includes accessory hook, magnet and mini mirror to be attached to the camera head for picking up small objects, viewing and hooking conveniently.This helps to diagnose broken part, weld point and released parts easily to save time and increase productivity. It has many applications including HVAC inspection, vent pipe, machine equipment, engine, cable routing, automotive / boat / aircraft inspection, etc. Ideal for industrial such as automotive, electrical, plumbing, heating, ventilation, air conditioning, refrigeration and general home inspection, building and home construction, aviation, vehicles maintenance.
Features
- With 2M Flexible Cable
- Records photos and videos wirelessly or while attached on the grip
- High visibility Color LCD display
- 3.5" TFT LCD Monitor with 320 x 240 pixels resolution and high visibility
- MicroSD slot, VIDEO OUT, USB interface
- Wireless distance up to 10m (more than 10m if no obstacle)
- Image on the screen can be zoomed and rotated 180°
- Photos and video playback function
- IP67 waterproof probe and camera head
- Built-in high power and adjustable LED light

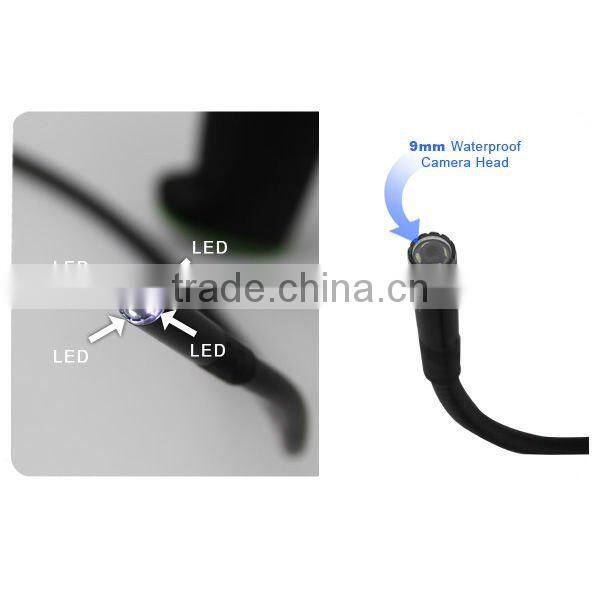

- 9 mm camera head diameter with Led lights for small cracks and dark areas
- Accessories including hook, mirror and magnetic tips
- 2M cable suitable for hard-to-reach remote inspection.
- Small in size and high image quality
- Flexible, portable, easy to operate and stable performance
- Built-in rechargeable Lithium battery in LCD Receiver
- Light weight and handheld design
- Camera
- Diameter: 9mm
- Imaging Sensor: 1/13 inch CMOS
- Pixel Pitch : 0.219 x 0.219mm
- Transmission Frequency: 2468MHz (2.468Ghz)
- Minimum illumination: 0 Lux
- Modulation Mode: FM
- Bandwidth: 18MHz
- Unobstructed Effective Range: 10m
- Waterproof Capacity: IP67 (Only for camera part)
- Monitor

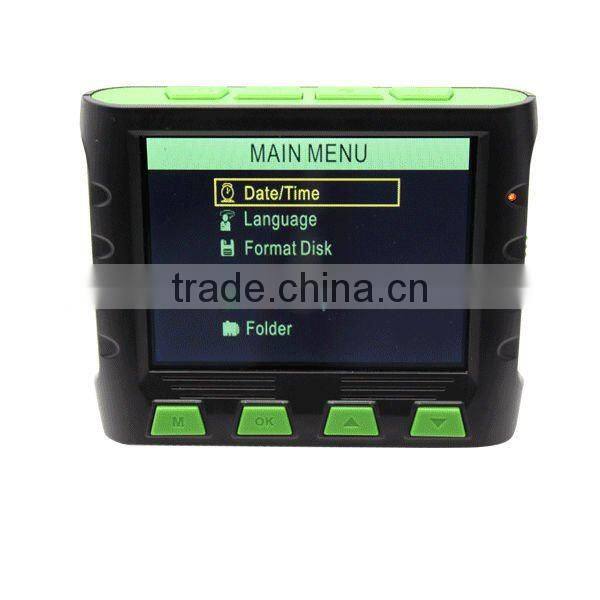

- LCD Screen Type: 3.5" TFT LCD
- Screen Resolution : 320 x 240
- Video System: PAL/NTSC
- Transmission Frequency: 2.468GHZ (2468MHz)
- Exterior Supply Voltage: 6V(DC)
- Consumption Current (Max): 490 mA
- Video Output Level: 0.9 ~ 1.3V at 75?(ohm)
- Capacity of Micro SD Card Slot : Support Micro SD Card up to 32GB
- Picture/Video File Resolution: 640 x 480
- Power Voltage : 100V-240V
- Operating Temperature : -10~50°C / -14~122°F
- Operating Humidity : 15~85%RH
- Color: Green & Black
- Power Supply (Main Unit) : 4 x AA batteries (not included)
- Dimension
- Main Unit : 170 x 52 x 163mm (excluded Flexible Tube)
- Monitor : 100 x 38 x 83mm
- Weight:
- Main Unit: 200g
- Monitor: 153g
- Diverse Applications:

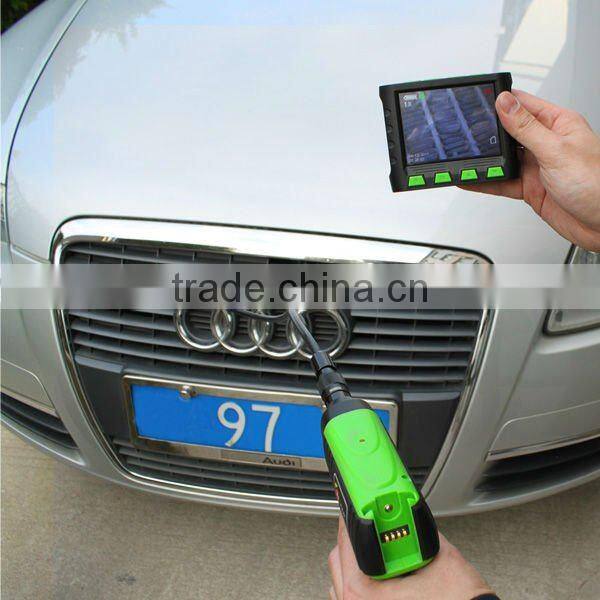

- Vehicle, Boat, Aircraft Repair & Maintenance
- Pipe Review & Repair
- See Hard-to-Reach Places
- Industrial Inspection
- Tight Area Surveillance
- Take Photo and Record Video for later Analysis
- Science Research
- Vehicle, Boat, Aircraft Repair & Maintenance

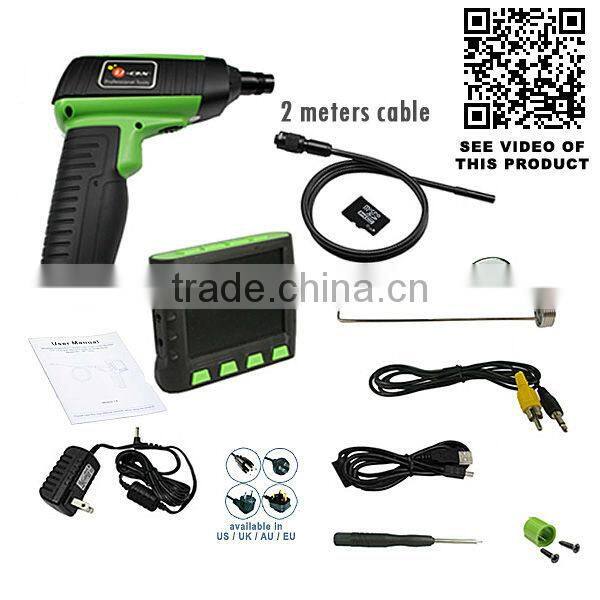

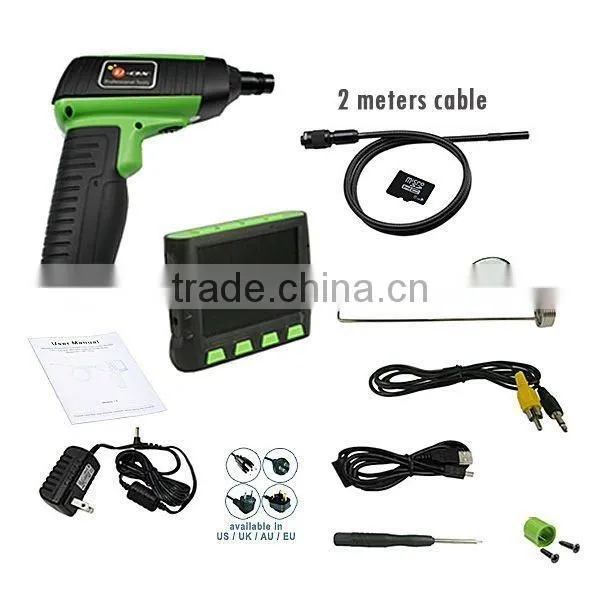

Set Includes:

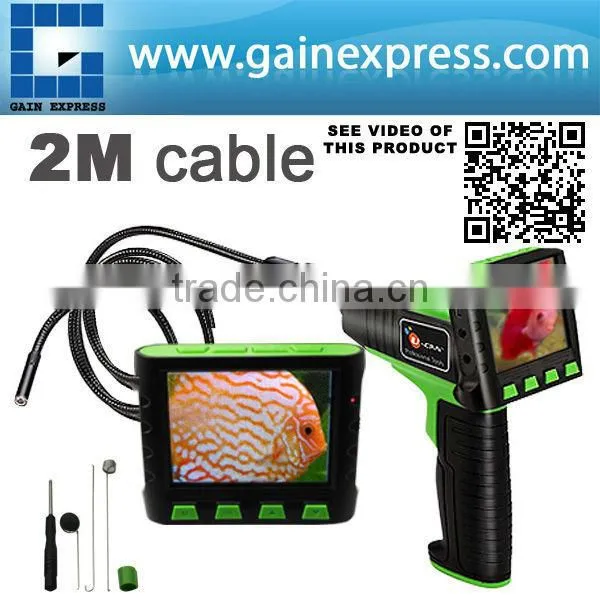

- 1 x 3.5" Color LCD Inspection Camera (main unit)
- 1 x 2m Flexible Cable with 9mm Waterproof Camera Head
- 1 x 3.5" Color LCD Monitor (Receiver)
- 1 x 2GB micro SD Card/TF Card (FREE)
- 1 x Video Cable
- 1 x USB cable
- 1 x Magnet Tip
- 1 x Hook Tip
- 1 x Mirror Tip
- 2 x Screws
- 1 x Screwdriver
- 1 x Tip Holder
- 1 x Power Adapter (available in US / UK / AU / EU power plug)
- 1 x English Instruction Manual
- Standard Packaging Box
