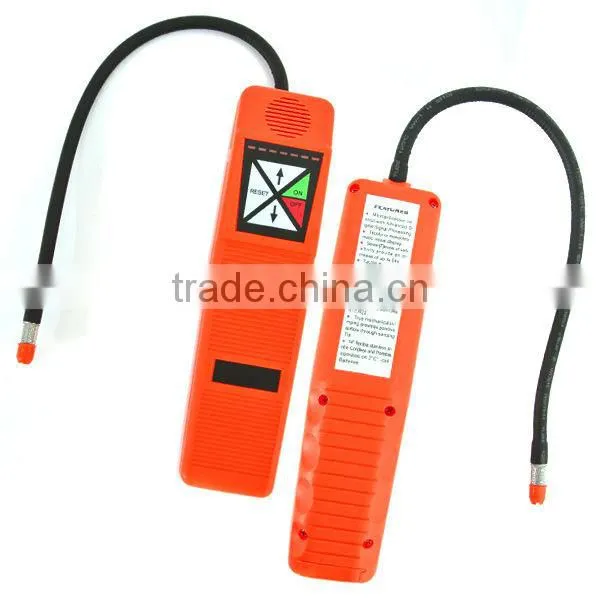

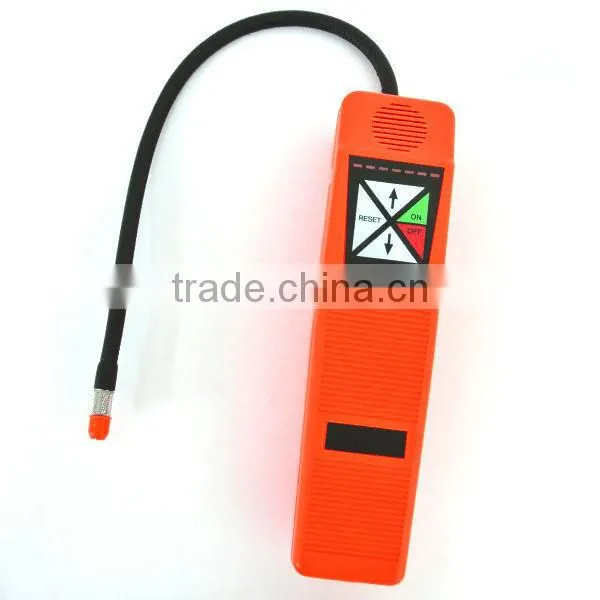

Automatic Microcomputer Processor Control Tactile Keypad Halogen Gas Leak Analyzers Detector R134a, R12, R22
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Halogen Electric Refrigerant Gas Leak Detector With Seven Level Leak Alarm + Negative Corona Sensor TypeNegotiableMOQ: 1 Piece -
Hand Held Carbon Dioxide (CO2) Meter With Temp. RH & Pressure Correction Made in TaiwanNegotiableMOQ: 100 Pieces
-
Hand Held Carbon Dioxide (CO2) Meter With Temperature Measurement Made in TaiwanNegotiableMOQ: 100 Pieces
-
Wallmount/Desktop VOC Monitor Tester Temperature Relative Humidity RH Volatile Organic Compound Meter 0~30ppm Range Taiwan MadeNegotiableMOQ: 1
-
Precision Combustible Methane Propane Gas Leak Detector Alarm Sensor 40-640ppm RangeNegotiableMOQ: 1
Model Number
E03CPU-1F
Specifications
Detect ALL hologenated refrigerants:MAX sensitivy 10g/yr
MIN sensitivy 3g/yr
3 color visual display
Application range:
- Detect halogen leak in lines of refrigeration, cold-storage and air conditioning
- Detect halogen Leak in serial of vehicle-use air conditioners
- Detect halogen Leak in other systems and storage/recovery vessel.
The product takes effect to all the halogenating refrigerating medium with chlorine and flourine included, which include but are not limited to:
- CFCs e.g. R12, R11, R500, R503 etc.
- HCFCs e.g. R22, R123, R124, R502 etc.
- HFCs e.g. R134a, R404a, R125 etc.
- It can also detect other mixers such as AZ-50, HP62, MP39, etc.
- Detect Ethylene Oxide gas leaks in hospital sterilizing equipment (it will detect the homogenate carrier gas).
- Detect SF-6 in high voltage circuit breakers.
- Detect most gases that include Cholrine, Flourine and Bromine (halogen gases).
- Detect cleaning agents used in dry-cleaning equipment such as carbon tetrachloride.
- Detect perchloroethyl in fire extinguishing system.

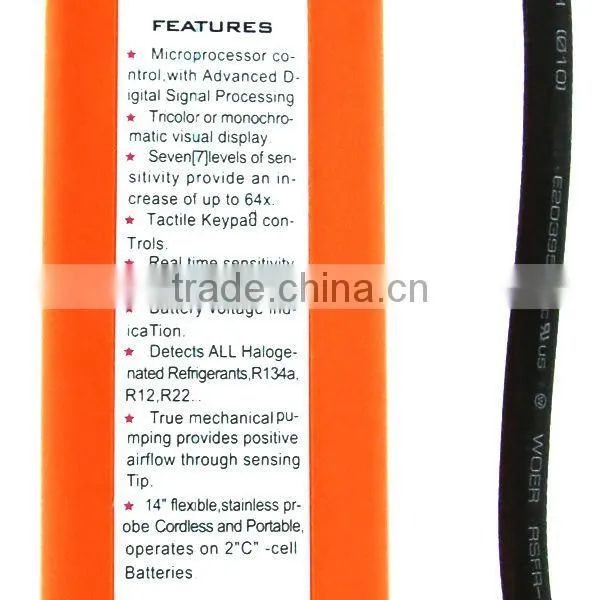

Features:
- Microprocessor control, Advanced Digital Signal Processing

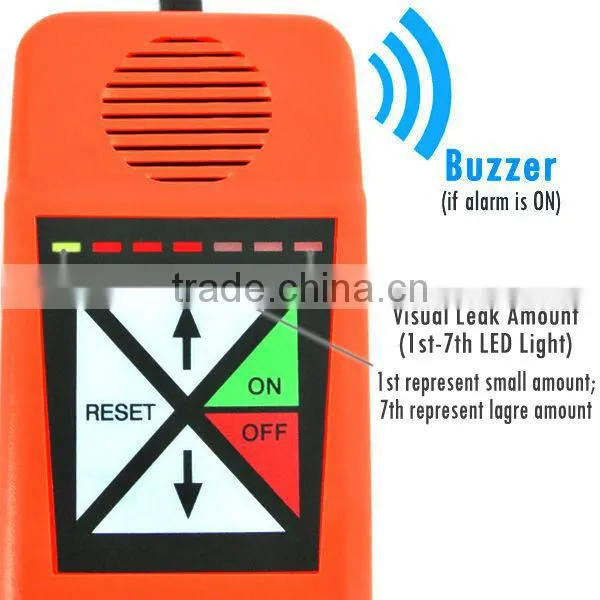

- Tricolor visual display

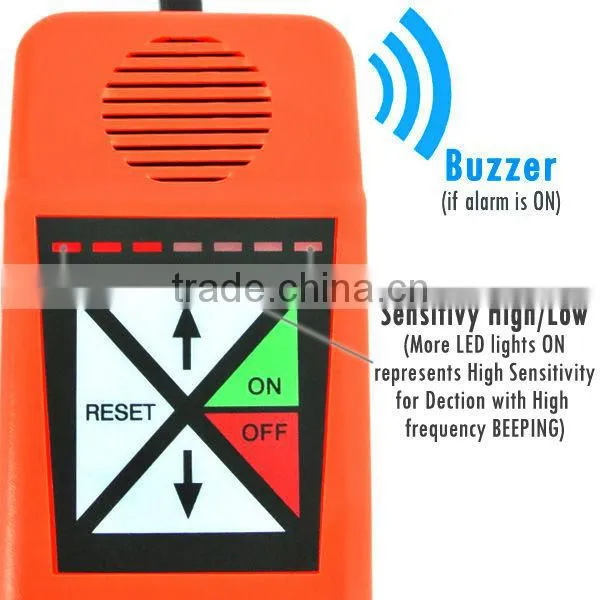

- Seven levels of sensitivity provide an increase of up to 64 times
- Warm-up time: 6s
- Trigger keypad
- Real time sensitivity adjustment

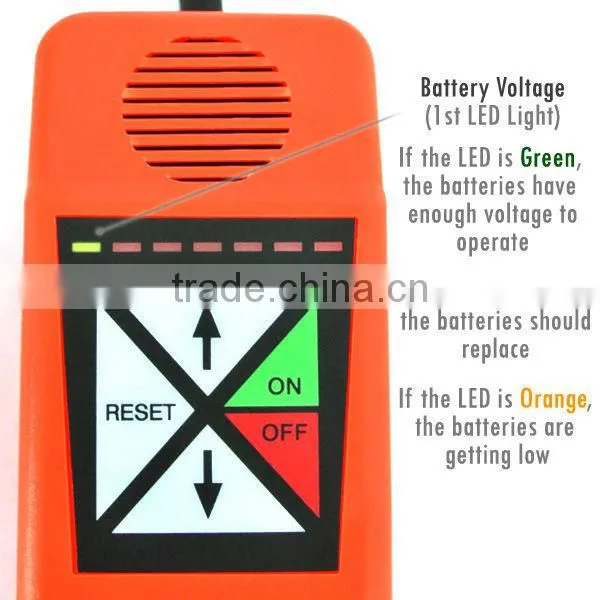

- Battery voltage indication
- Certified to DELICACY for detecting R134a, R12, R22, etc.

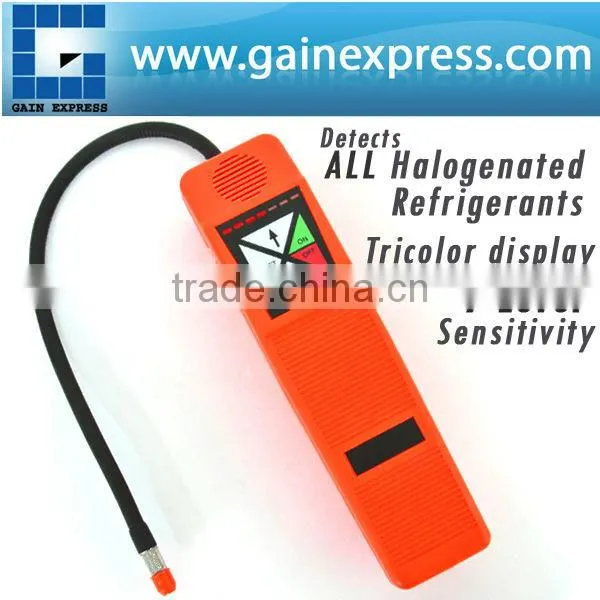

- Detect ALL Halogenated Refrigerants
- True mechanical pumping provides positive airflow through sensing tip
- Cordless and portable, operate on 2 C- cell batteries
- 14 (35.5cm) flexible, stainless probe
- Selective leak source
- Two-year warranty
Specifications:
- Power supply: DC3V, Size 2 Alkaline batteries(2)
- Maximum sensitivity: R12, R22 and R134a have got approved.14g/y
- Limit sensitivity: fitting for halogenating refrigeratingmedium 3g/yr
- Sensor life expectancy: about 20 hours
- Battery life expectancy: About 30 hours under normal condition
- Mode: Continous and no limit
- Reset time: 2 seconds
- Reaction time: Instantaneous
- Warm-up time: 6 seconds
- Weight: 560g
- Size :22.9cm×6.5cm×6.5cm
- Length of the probe: 35.5cm
- Gross Weight: 1575G/PC

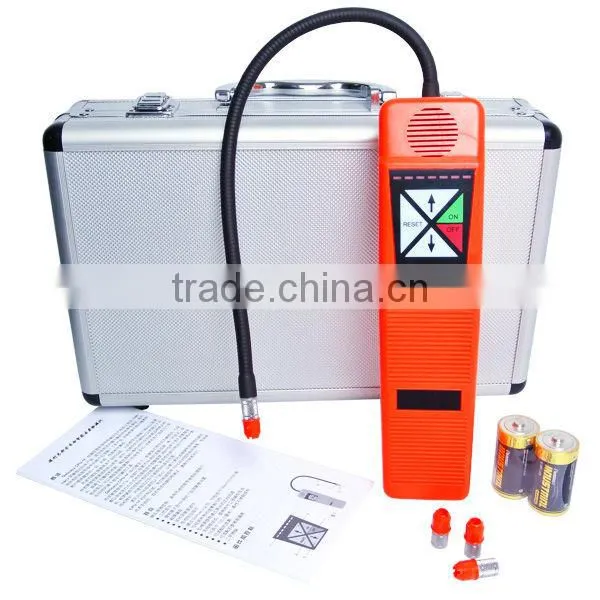

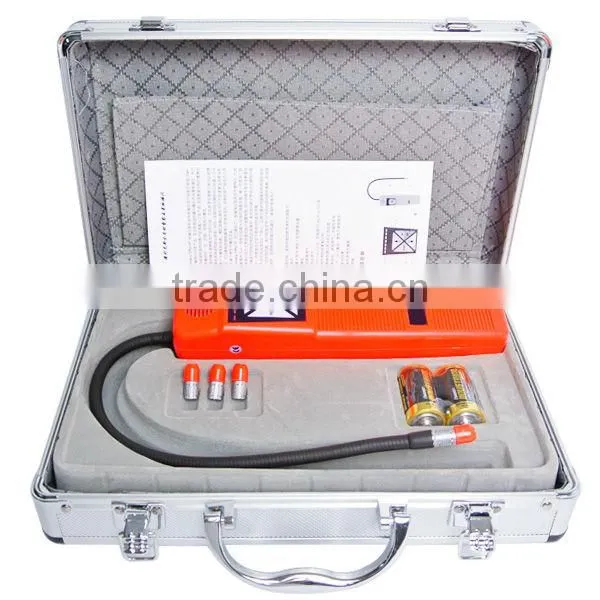

Set Includes:
- 1 x Halogenated Gas Leak Detector
- 2 x 1.5V Alkaline Batteries

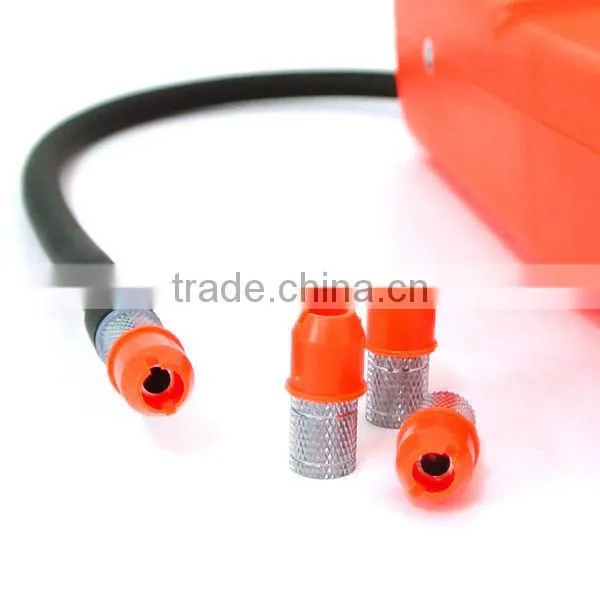

- 3 x Extra Probe Cover (FREE)
- 1 x Instruction Manual
- Carrying Case
