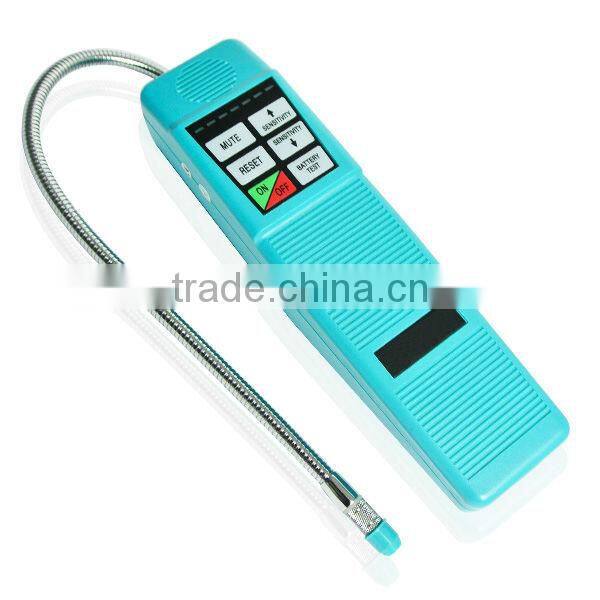

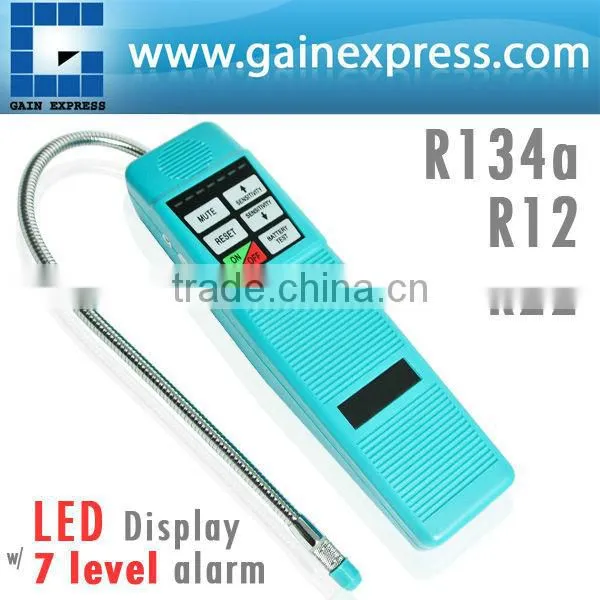

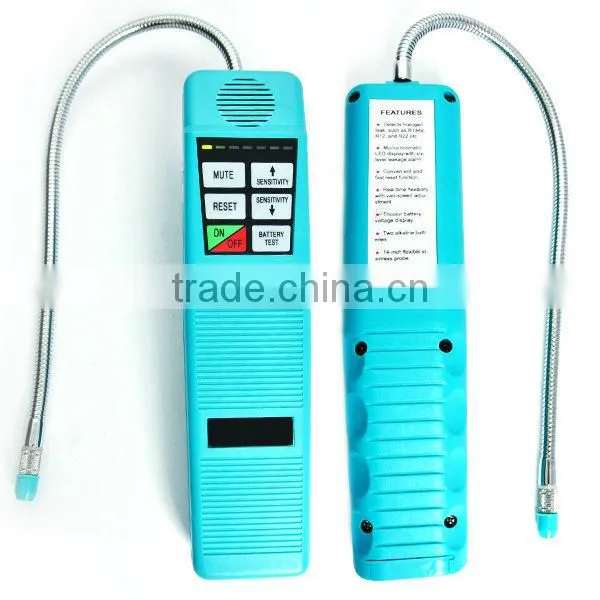

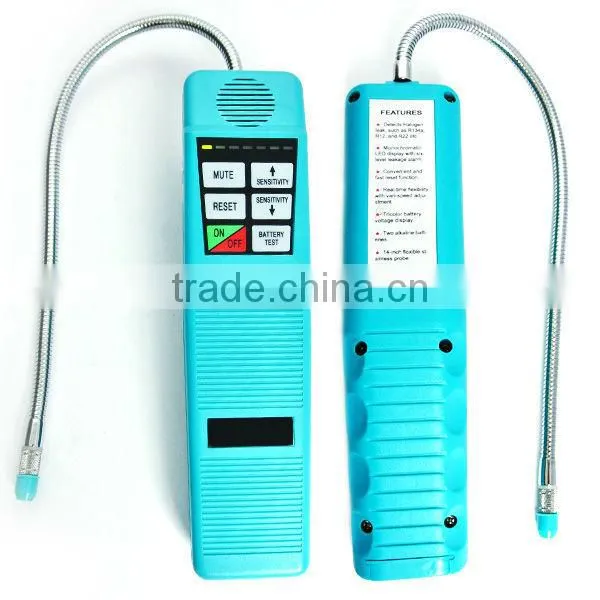

High Quality Halogen Electric Refrigerant Gas Leak Detector With Seven Level Leak Alarm + Negative Corona Sensor Type

Specifications

The sensitive elements adopt the advanced and reliable corona refrigirant sensor which has great sensitivity and excellent repeatedly; the test program is controlled by the artificial intellegent microcomputer, with reasonable work procedure, easy and convenient to operate, complete functions and multiple self-adaptive capabilities; dual-color LED indicator light, with visual and clear display; smart and portable design is convenient for your mobile operation. When is excessive refrigerant in the leak gas, this unit will automatically audio alarmed to effectively test the refrigerant leak.

Applications:

Detects leaks in other systems and filling vessels. It will respond to all halogenated (including Chlorine and Flourine) refrigerants.

This includes, buti is not limited to:

• • CFCs                 R12, R11, R500, R503 etc.
  • HCFCs               R22, R123, R124, R502etc.
  • HFCs                 R34a, R404a, R125 etc
  • Mixtures such as AZ-50.HP62.MP39 etc.

• Detect Ethylene Oxide gas leaks in hospital sterilizing equipment
• Detect SF-6 in high voltage circuit breakers.
• Detect most gases that contain Chlorine, Fluorine, and Bromine (halogen gases)
• Detect cleaning agents used in dry cleaning applications such as per chloroethylene.

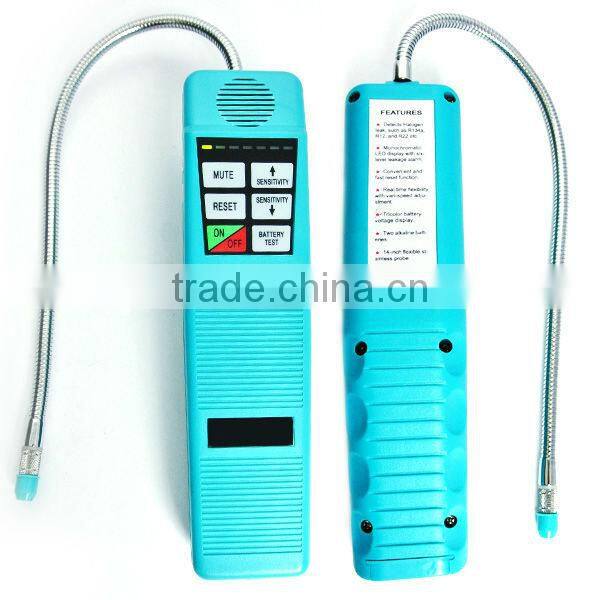

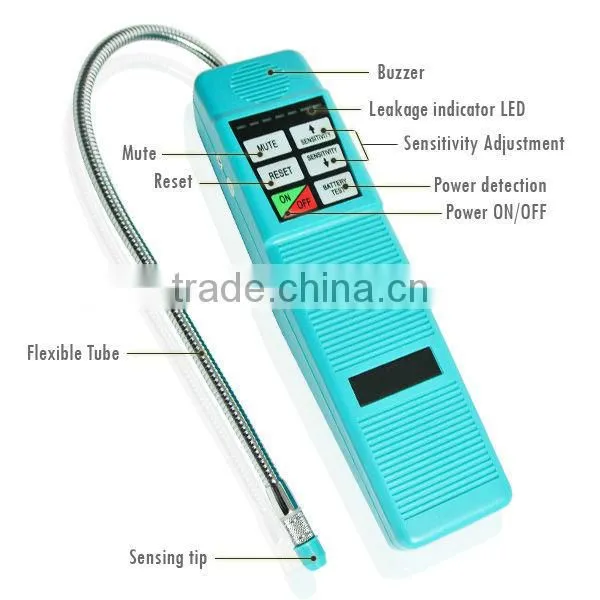

Features:

• Detects Halogen leak, such as R134a, R12, and R22 etc.
• Monochromatic LED display with seven-level leakage alarm
• Convenient and fast reset function
• Real-time flexibility with vari-speed adjustment.
• Tricolor battery voltage display.
• Two alkaline batteries
• 14-inch flexible stainless probe
• Quality sensor that can detect finely-leaked halogen gasses.
• Adopts advanced, low power consumed, eight-bit microprocessor controller

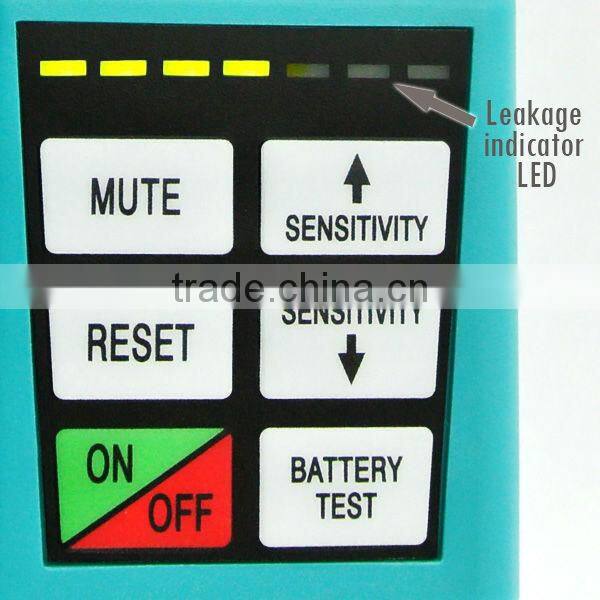

• Dual-color LED indicator light with progressive and real time display
• Modular sensor, convenient for maintenance
• Seven levels audible and visual alarm
• Auto reset testing when the detector is turned in
• Battery level indication

Specifications:

• Sensor Type : Negative corona sensor
• Ultimate sensitivity : 3g/yr
• Warm-Up Time : 3
• Operating Environment :
  • Temperature : 0°C ~ 50°C
  • Humidity : <95% RH (non-condensing)
• Power Supply : 2 x 1.5V Alkaline Batteries
• Sensor tip life under continous operation: more than 50 hours in normal detecting status
• Diamater : 230 x 60 x 55mm
• Probe length : 14 inches (36mm)

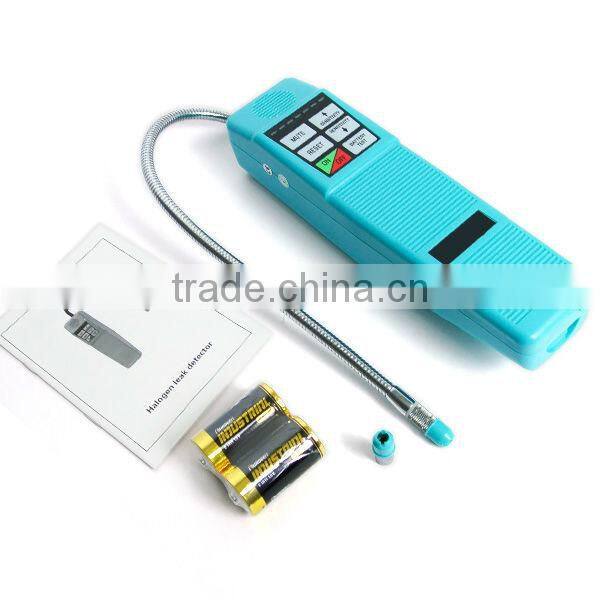

• 1 x Halogen Leak Detector

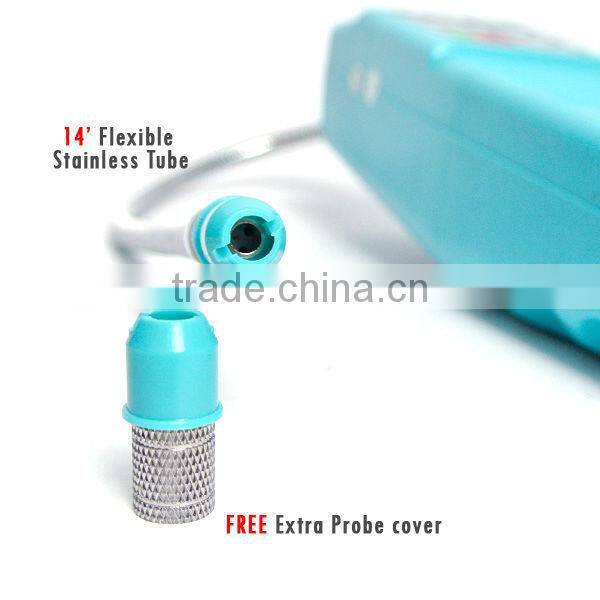

• 1 x Extra Probe Cover (FREE)
• 2 x 1.5V Alkaline Battery (FREE)
• 1 x Instruction Manual
• Standard Packaging box
