Home > Instruments & Meters > Meter for Liquid & Gas > Thermometer & Hygrometer > Portable Digital Carbon Dioxide CO2 Detector Level Monitor and Temperature Meter Tester 0 ~ 9999ppm Range

Portable Digital Carbon Dioxide CO2 Detector Level Monitor and Temperature Meter Tester 0 ~ 9999ppm Range

Gain Express Holdings Limited

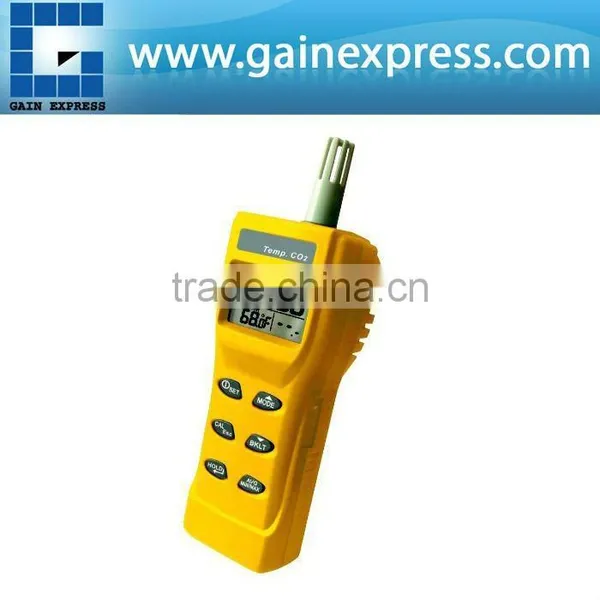

Portable Digital Carbon Dioxide CO2 Detector Level Monitor and Temperature Meter Tester 0 ~ 9999ppm Range photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Model Number:

A017752

Usage:

Indoor

Theory:

Temperature Sensor

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Model Number A017752

Usage Indoor

Theory Temperature Sensor

Accuracy +/- 75ppm +/- 5% of reading(CO2); +/-.6°C/+/-.9°F(Temperature)

Specifications

Measures :CO2 and Temperature
Warning Carbon Dioxide Level
With NDIR (Non-Dispersive Infrared) Waveguide Technology Sensor

A portable meter that measures CO₂ & air temperature. This is an ideal instrument for indoor quality (IAQ) diagnosis.

Poor indoor air quality is considered unhealthy because it causes tiredness, loss of ability to concentrate & even illness. IAQ monitoring & survey, especially in CO₂ level & air ventilation become widely applied in public areas such as offices, classrooms, factories, hospitals & hotels.

It uses NDIR (non-dispersive infrared) technology to ensure the reliablity and long term stability. It's useful in verifying HVAC system performance and air ventilation control.

Features:

Dual displays of CO₂ level, temperature
Stable NDIR sensor for CO₂ detection
Statistics of weighted averages TWA (8hrs weighted average) STEL (15minutes weighted average)
Backlight for working in dark areas
Audible CO₂ warning alarm
Battery and adaptor power supply
Easy manual calibration on CO₂
PC connect via RS232 interface. RS232 output every 2 seconds to pc for analysis (not included in the set)
Low cost portable meter checking indoor air quality
Design with NDIR (non-dispersive infrared) Waveguide technology sensor
Manual calibration is recommended
Warning carbon dioxide level
Backlight function for working in dark
Long time drift compensation
Audible alarm (~80db) threshold setting
Max, Min, Average functions included
Hold function freezes current readings
Display 8 hrs TWA value (time-weighted average) or 15 minutes STEL value (short-term exposure limit)
Housing designed surrounds with rails to help
Air ventilation for quick and accurate response
Easy to calibrate at fresh air around 380-420ppm

Specifications:

Measuring range :
- 0 ~ 9999ppm (CO₂)
- -10 ~ 60°C/14 ~ 140°F(Temp)
Accuracy :
- ± 75ppm ± 5% of reading(0 ~ 2000ppm)(CO₂)
- ±.6°C/±-.9°F(Temperature)
Resolution : 1ppm, .1°C/°F
Calibration : 380 ~ 420ppm
Pressure Dependence : 1.6% reading per kPa deviation from normal pressure. 100 kPa
LCD size : 26 x 44mm
Audible Alarm : -80DB
Operating Condition : 0-50°C, 0-95% RH
Storage Condition : -20-50°C
Power Supply : AA x 4pcs
Battery Life : > 24hours Alkaline battery
Meter size : 205 x 70 x 56mm
Weight : 200g
Warm up time : 30s

Set Includes:

1 x C02 Detector Level Meter
4 x AA batteries
1 x operation manual
1 x hard carrying case

Optional Items (not included in set):
Please inform us if you want any of the following optional items to be included in your order.
- Adaptor(9V/100-240 vac) (not included in the set)
- RS 232 cable and software (not included in the set)
