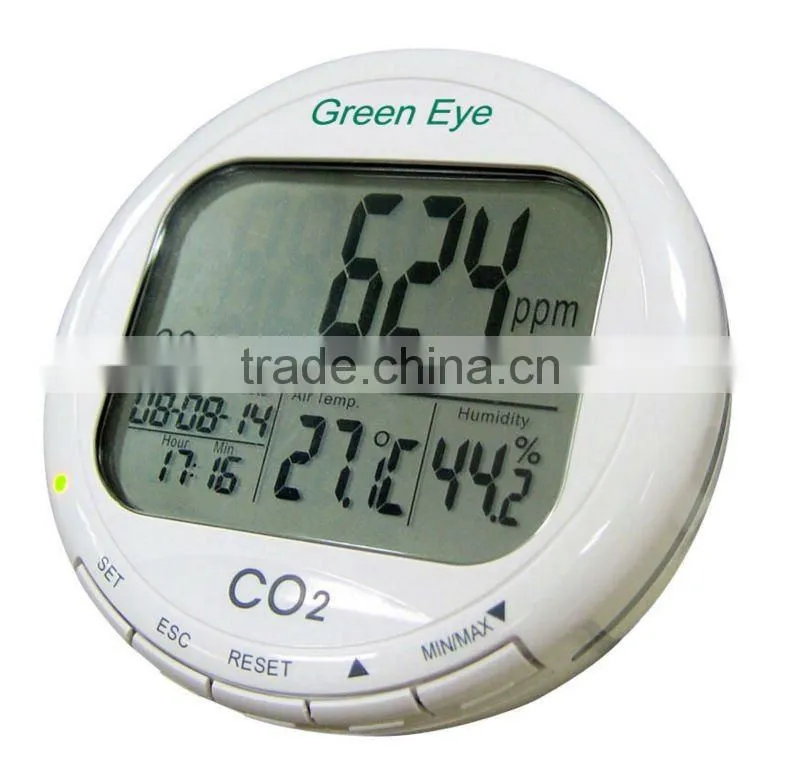

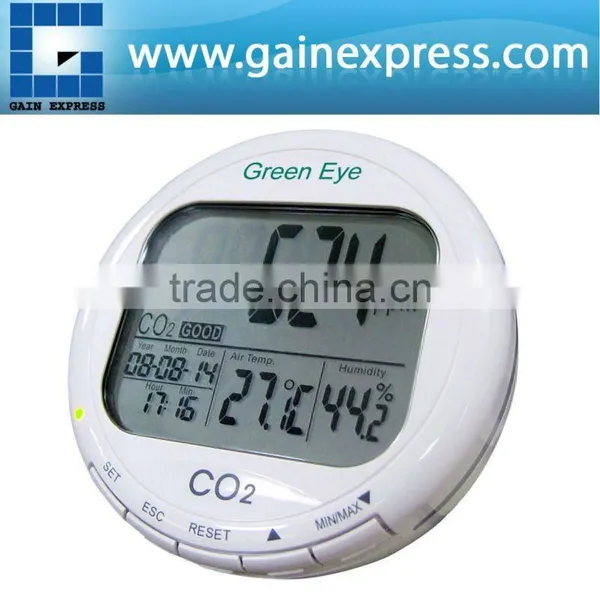

Desktop Carbon Dioxide CO2 Monitor and Logger

Specifications

Advanced CO2 monitor & datalogger
15Degree Tilt Angle
Warning CO2 Level:1000~5000ppm
CO2 ABC(Automatic Background Calibration

A portable instrument that  measures CO₂ level, air temperature, & humidity. It also do datalogging which also makes it an ideal instrument for indoor quality (IAQ) diagnosis and HVAC system performance verification.



Poor indoor air quality is considered unhealthy because it causes tiredness, loss of ability to concentrate & even illness. IAQ monitoring & survey, especially in CO₂ level & air ventilation become widely applied in public areas such as offices, classrooms, factories, hospitals & hotels.





Features:

• Super large display of CO₂ level, temp., humidity, date and time.
• Advanced CO₂ logger with 15 degree tilt angle. Easy to see and read.
• Indoor air quality level indication.(Good, Normal, Poor)
• Stable NDIR sensor for CO₂ detection
• Visible and Audile CO₂ warning alarm from 1000-5000ppm
• ABC (Automatic Baseline Calibration) and manual CO₂ calibration.
• Max & Min CO₂ value recall function
• Datalogging up to 15999 points
• Sampling Rate from 1 second to 4:59:59
• Up to 15333 points memory for each parameter
• One key touch to activate the logging mode
• Switchable Real time clock and Calendar are displayed
• Temperature unit is switchable
• NDIR (Non-Dispersive Infrared) Waveguide Tech.
• Long time drift compensation
• Bright Led visible indicates power is on
• Monitoring residential, commercial and home air quality
• Easy to connect with PC for data download



Specifications:

• Measuring Range:
  • CO₂:  0~9999ppm
  • Temp: -10°C ~ 60°C/14~140°F
  • Relative Humidity: 5.0%-95.0%
• Resolution:
  • CO₂: 1ppm
  • Temp: 1°C/.1°F
  • RH:  .1%
• Accuracy:Warm-up time: 30 seconds
  • CO₂: ±50ppm  ±5% of reading (0  ~ 2000ppm)
  • Temp: ±0.6 °C/ ±0.9 °F
  • Relative Humidity: ±3%~±5%
• Max/Min function: included
• Air Quality Level:

  • Good: <700ppm (programmable by user)
  • Normal: 700 - 1000ppm (programmable by user)
  • Poor: "Normal"
• Response Time:
  Sample Point: 15999 points (5333points for each parameter)
  • CO₂: <2mins (90% step change)
  • Temp: <2mins (90% step change)
  • RH: <10 mins (90% step change)
• Sampling rate: 1sec to 04:59:59
• LCD size(H x W): 60x82
• Operating Condition: -10~50°C, 5~80%RH (avoid condensation)
• Storage Condition: -20~60°C, 5~90%RH (avoid condensation)
• Power Supply: 5VDC adaptor ( ± 10%), >=500mA
• Meter size 120 x 80mm Diameter x Depth)
• Weight: 200g



Set Includes:

• 1 x main meter
• 1 x Universal adaptor (5V ±10%, >=0.5A)
• 1 x USB Cable
• 1 x Download software CD
• 1 x Operation Manual
• 1 x Plain white box
