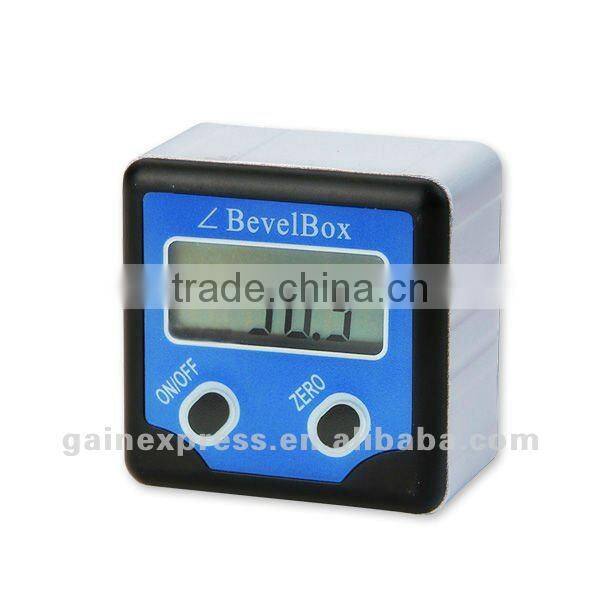

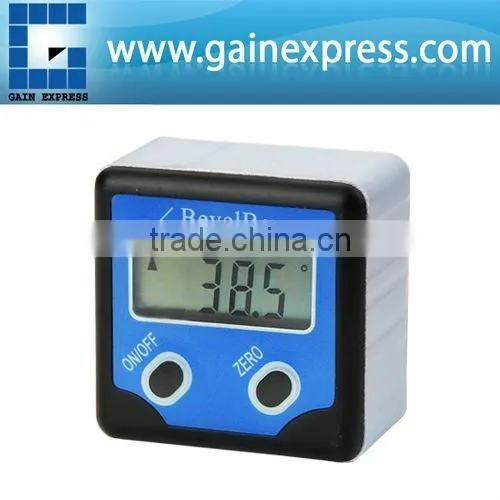

Digital Bevel Box Gauge Angle Protractor With 3 Strong Disk Magnet Waterproof Inclinometer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Generic
Model Number:
AG-0200BB
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Handheld Ultrasonic Laser Distance Meter/ Finder 20M 65FT RangeNegotiableMOQ: 1 Piece -
Digital Double Single Unit Range Finder Ultrasonic Laser Indicator Distance Meter/ Measurer 60M 197FT + 10 Memory UnitsNegotiableMOQ: 1 Piece
-
Digital Laser Range Finder Distance Meter/ 40M w/ +/-3mm Accuracy Length, Area, Volume, Width, Clearance, Pythagorean TheoremNegotiableMOQ: 1 Piece
-
Digital 100M Laser Range Finder Distance Meter/ w/ +/-2mm Accuracy Length, Area, Volume, Width, Clearance, Pythagorean TheoremNegotiableMOQ: 1 Piece
-
Digital Bevel Protractor Inclinometer Angle Meter Finder 360 Degrees w/ Alarm FunctionNegotiableMOQ: 1 Piece
Brand Name
Generic
Model Number
AG-0200BB
This Digital BevelBox provides reading between ±180.0° (0~360°)on table saws and other shop equipment instantly. Featuringzero setting to any position and 3 strong disk magnetmaterial can stick to the surface measured. Placing it to reference surface zero gives measured results within 0.1° accuracy.

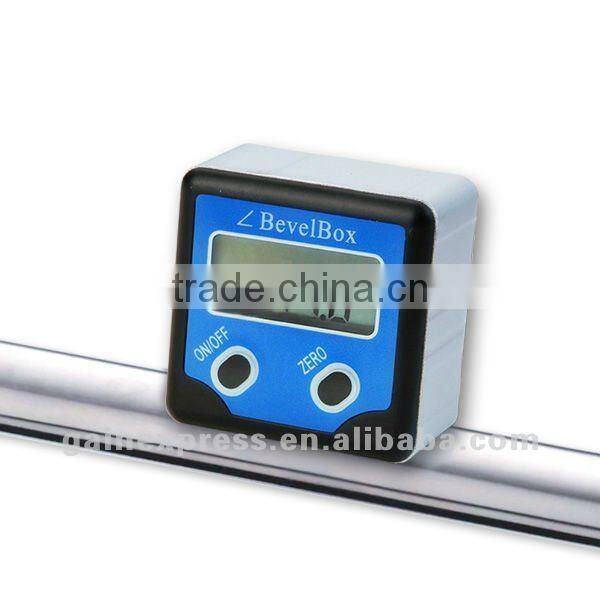

Easily measurebevel angle of miter saw, examine and repair the automobile,etc. with the 3 built-in magnetsstick securely to metal surface such as steel tables, fences,plane, bits, saw/bandsaw blades, machine tops and othershop equipment. With care you can also use it on aluminum or wood.
Applications
- Check drill press table setting, tablesaw, jointer table, band saw, jointer fence or bandsaw table
- Setting blade angle of Mitre Saws
- Setting blade angle of Circular Saws
- Tool setting on Lathes
- Setting workpiece angle for milling
- Drainage angles and run off slopes
- Grader and tractor work alignment
- Platform monitoring
Features
- Full range ±180° (0-360°)with ±0.1° repeatability
- IP54 waterproof rate
- Zero button calibrates the gauge toany reference surface
- Large & clear readout, great forviewing result even for those with failing eyesight

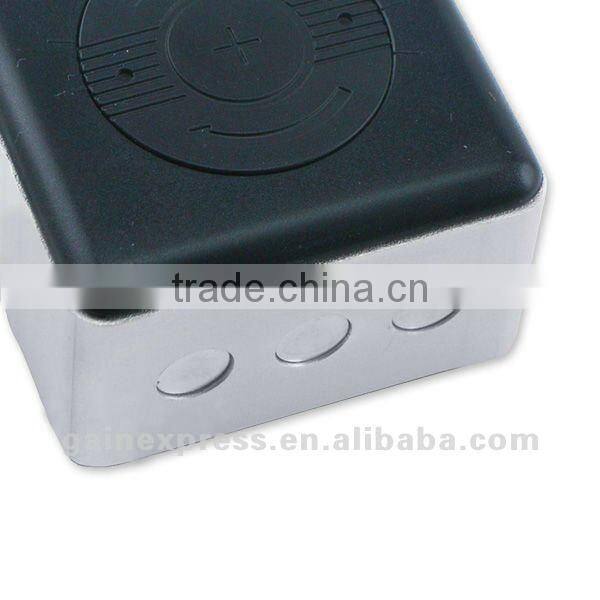

- Powerful 3 built-in magnets on thebase secure the attachment to any magnetic surfaces
- Guaranteed fast & accurate measurement
- Light weight and portable
Specifications
- Resolution: 0.1°
- Repeatability: ±0.1°
- Measuring range: ±180°(0-360°)
- Waterproof: IP54
- Working current: <100 µA
- Power: 3V CR2032 Lithium battery (included)
- Size: 50 x 50 x 33mm
- Weight: approx. 117g

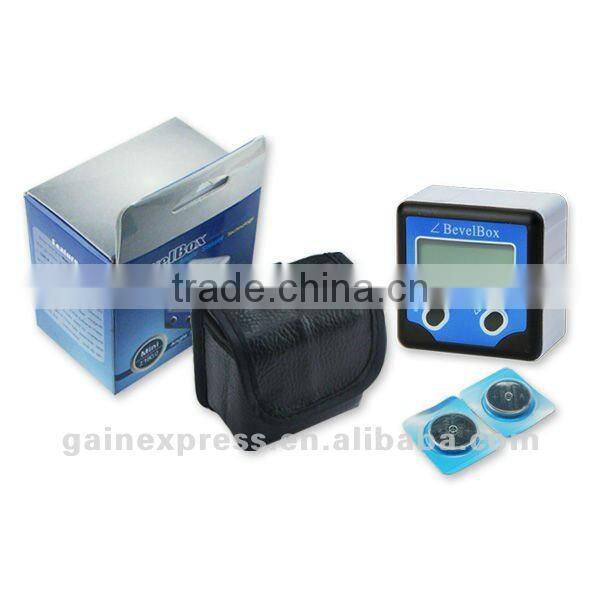

Set Includes
- 1 x Bevel Box
- 2 x 3V CR2032 Lithium Battery (FREE)

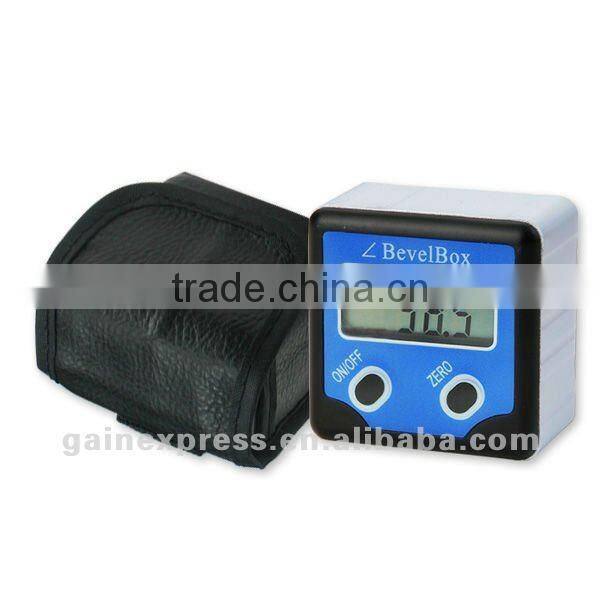

- 1 x Carrying Pouch (FREE)
- English Quick Start Guide
- Standard Factory Package
