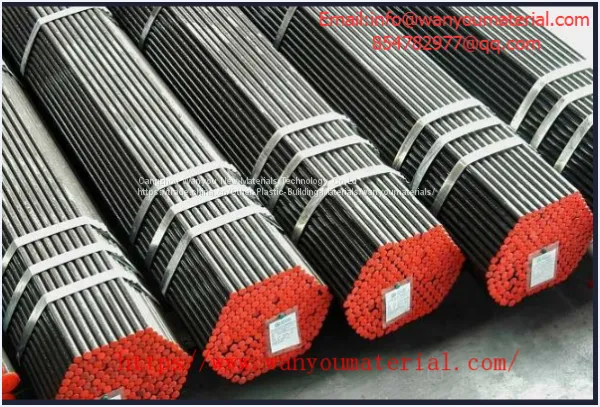

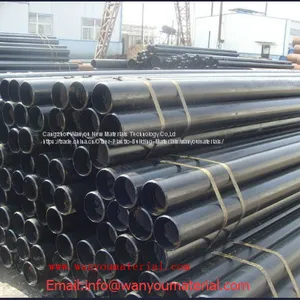

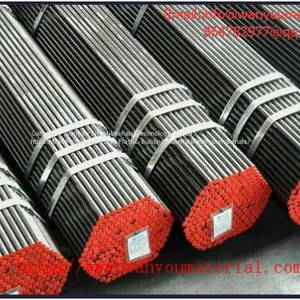

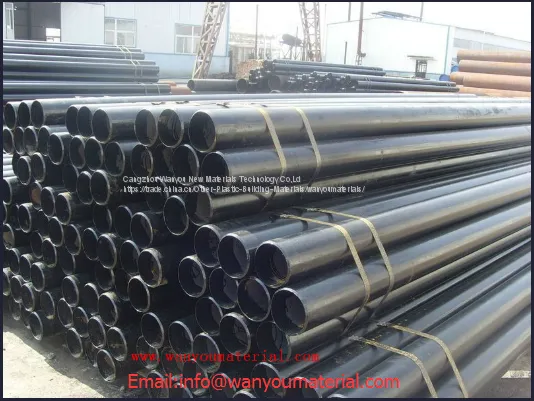

Help CenterBS3059-1 Carbon Steel Tube for Boiler Info@wanyoumaterial.com
Related Products
-
316/316L Stainless Steel Tubes for Condenser Tubes Info@wanyoumaterial.comUS$ 1 - 1MOQ: 1 Ton -
ASTM A312 Seamless Stainless Steel Tubes for Heat Exchanger Info@wanyoumaterial.comUS$ 1 - 1MOQ: 1 Ton
-
Galvanized Steel Tube for Construction Building Material Info@wanyoumaterial.comUS$ 1 - 1MOQ: 1 Ton
-
A106 Gr. B ASTM A36, SAE1020 Seamless Round Steel Pipe Info@wanyoumaterial.comUS$ 1 - 1MOQ: 1 Ton
-
2017 Good Quality High Quality Seamless Mild Steel Tube Info@wanyoumaterial.comUS$ 1 - 1MOQ: 1 Ton
| Name | BS3059-1 carbon steel tube for boiler |
| Thickness | 1-35mm |
| Size | 6-508mm |
| Material | 10, 20, 20G, 20MnG, 25MnG, 15MoG, 12Cr1MoVG, SA106B, SA335 P11, SA 335 P22, ST45-8, 15Mo3, SA210C, SA192, STB 340, P235TR2 etc. |
| Standard | GB5310, GB3087, ASTM A106, ASTM A213, ASTM A210, ASTM A179, ASTM A192, ASTM A333, ASTM A335, JIS G3461, JIS G3462, DIN17175, BS3059, EN 10216-1 |
| Designation | BK, BKW, BKS, GBK, NBK |
| heat treatment | Annealing/normalizing/stress relieving |
| Technique | Hot rolled,cold drawn,ERW,SAW |
| Thickness | 1-35mm |
| Manufacture Type | Seamless steel pipe |
| Application | for boiler service |
Boiler pipe is one of the seamless steel pipes. The method of manufacturing is same to seamless pipe,but this pipe has an requirement of the steel grades.Depending on the operating temperature,it can be divided into two kinds:
General boiler pipes and high-pressure boiler pipes.
1.General boiler pipes is suitable for under 450ºC.Its made of hot finished or cold rolled carbon steel pipes.
2.The general boiler pipe is used to produce water screen tube,boiling water tube,superheating steam tube,superheating steam tube of locomotive boiler,tobacco tube and generating tube etc.
3.High-pressure boiler pipe is used to produce high-pressure or ultrahigh pressure superheater tube,reheater tube,gas-guide tube,main steam pipe and so on.
Carbon Steel Seamless Tubes for High pressure Boiler.
For manufacture heating-pipelines,containers,coal-saving devices,superheaters
and reheaters of high pressure boilers(P>9.8Mpa, 450)
| Standard |
Grade |
Chemical Composition(%) | Mechenical Properties | |||||||||
| C |
Si |
Mn |
P |
S |
Cr |
No |
V |
(Mpa) Tensie strength |
(Mpa) Yield strength |
(%) Elongation |
||
| GB5310 | 20G |
0.17- 0.24 |
0.17- 0.37 |
0.35- 0.65 |
≤ 0.030 |
≤ 0.030 |
/ | / | / | 410-550 | ≥245 | ≥24 |
| 20MoG |
0.17- 0.24 |
0.17- 0.38 |
0.70- 1.00 |
≤ 0.030 |
≤ 0.030 |
/ | / | / | ≥415 | ≥240 | ≥22 | |
| 15MoG |
0.12- 0.20 |
0.17- 0.37 |
0.40- 0.80 |
≤ 0.030 |
≤ 0.030 |
/ | 0.25- 0.35 |
/ | 450-600 | ≥270 | ≥22 | |
| 15Cr1 MoG |
0.12- 0.18 |
0.17- 0.37 |
0.40- 0.70 |
≤ 0.030 |
≤ 0.030 |
0.80- 1.10 |
0.40- 0.55 |
/ | 440-640 | ≥235 | ≥21 | |
| 12Cr2 MoG |
0.08- 0.15 |
≤0.50 | 0.40- 0.70 |
≤ 0.030 |
≤ 0.030 |
2.00- 2.50 |
0.90- 1.20 |
/ | 450-600 | ≥280 | ≥20 | |
| 12Cr1 MoVG |
0.08- 0.15 |
0.17- 0.35 |
0.40- 0.70 |
≤ 0.030 |
≤ 0.030 |
0.90- 1.20 |
0.25- 0.35 |
0.15- 0.30 |
470-640 | ≥255 | ≥21 | |
