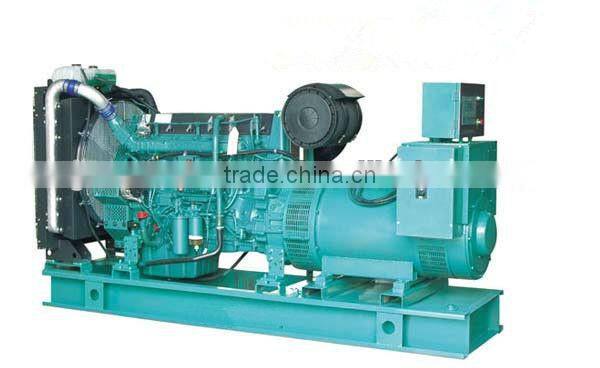

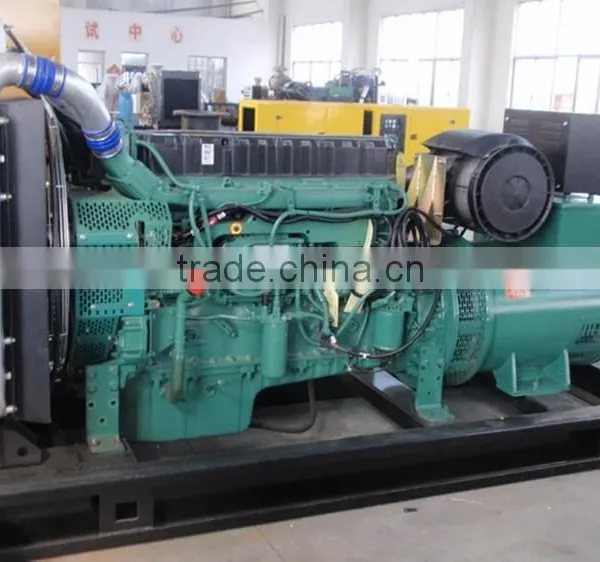

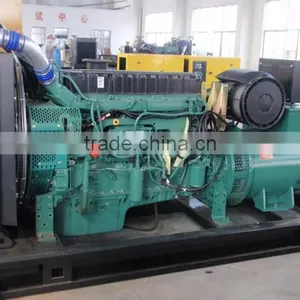

400kva Volvo Penta Generator

         400kva Volvo Penta Generator

volvo have been widely used in large and small automobiles, heavy-duty trucks, engineering machineries and ships. Moreover, they are the ideal drive force of power generation sets. Volvo engines have high load capability as well as fast and reliable cold start performance

 generator set :

Phase No.:3 phase, 4 wires

Voltage: 220V/380V, 230V/400V, 240V/415V

Frequency: 50/60HZ

Voltage adjusting: AVR

Power factor: 0.8/1.0

Hz-adjusting range: 0-5%

V-adjusting Range:  ≥95%-105%

Adjusting rate of sustained voltage: 1%

 Engine: VOLVO

Type: 4 strokes direct jetting pressure increased air-to-air inter-cooling

Arrangement-cylinder: Vertical arrangement

Type of Governor: Electronically

Model of Governor: PT fuel pump

Starting: By electricity

 Alternator: Stamford,LeroySomer, Marathon,Engga

Type: brushless

Bearing: single/ double bearing.

Damping windings: full damping

Safety Guard Grade: IP21-23

Insulation grade: H grade

Short-circuit protection: Air switch

 Control plane: Smartgen, Deepsea,ComAp

1) Automatic alarm system: the unit hasunit has the acousto-optics alarm system and arreand arrestor for anr for any situation as the start defeat, the water is over tempeer temperature, the oil pulls down, over speed, over load and over current

2) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible Audible and visual alarm lamps and buzzers
