Specifications
200kw Volvo Diesel Power Generator Set-OEM Volvo ,Stamford Leroy Somer
-Electronic Governor
-Globally warranty
-ISO9001

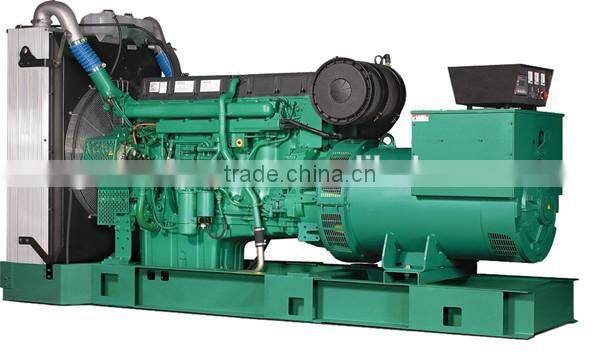

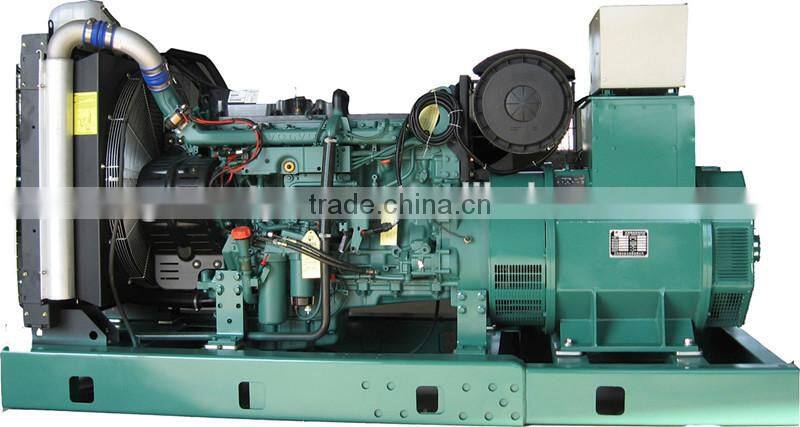

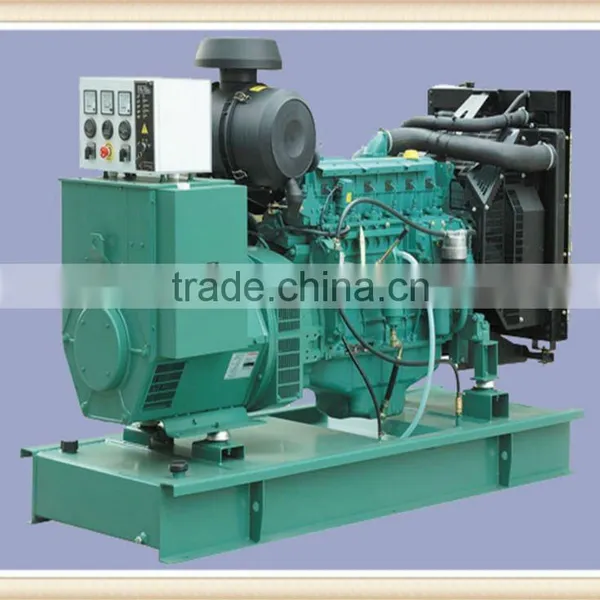

Original Sweden 200kw Volvo Diesel Power Generator Set
General Features of Diesel Generator Set:
*Powered by heavy duty industrial diesel engine,
*Radiator 40°C max, fans are driven by belt, with safety guard
*12//24V DC start motor and storage battery
*Brushless, self-excited, IP21-23, insulation H alternator
*Absorber to reduce vibration
*Dry type air filter, fuel filter, oil filter
*Main line circuit breaker
*Control system: Key start control panel as standard, digital auto start or ATS system is optional
*8 hours operation base fuel tank
*High efficient muffler to reduce noise
*Ripple flex exhaust pipe, exhaust siphon and flange etc.

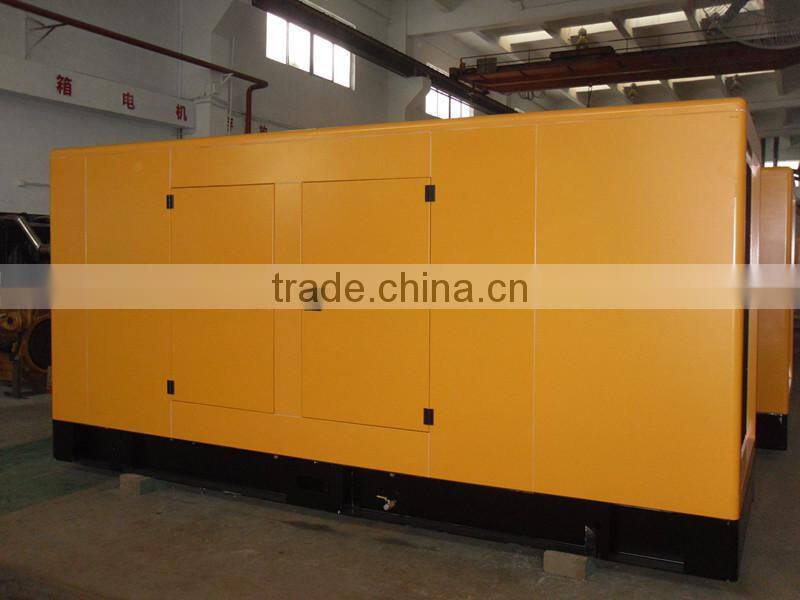

*Genset type: open type or soundproof/silent type, or trailer type
* Maintenance and operation manual, quality certificate, etc.
*Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110%
and all protection function(over speed stop, high water temperature, low oil pressure, battery
charging fail, emergency stop)
*Certificate: ISO9001:2000, CE (ESC/070119), BV
MAIN TECHNICAL DATA SHEET
GENERATOR SET | |
Genset model |
GNRV200 |
Prime power (KW/KVA) |
200/250 |
Standby power (KW/KVA) |
220/275 |
Frequency & voltage |
50HZ, 400V |
No. of Phase |
3 |
Genset type |
Open skid type |
DIESEL ENGINE | |
Engine brand & Model |
Volvo , TAD734GE |
Rated output |
220KW |
Rated Speed |
1500RPM |
Engine Type |
Vertical in-line, four stroke |
No. of cylinder |
6 |
Bore*stroke |
108*135 |
Aspiration method |
Turbocharged after air-air cooled |
Governor |
Electrical |
Starting method |
Electric starting |
Cooling method |
Forced water cooled |
Displacement |
7.28 |
Compression ratio |
17.0:1 |
Fuel consumption |
200g/kw.h |
Speed stability |
≤5% |
Total lubrication system capacity |
24L |
Coolant capacity(without radiator) |
12.3L |
Starter motor |
DC24V |
Alternator |
AC24V |
ALTERNATOR | |
Alternator brand & model |
Stamford,Lery Some ,Engga |
Type |
Brushless & self-excited |
No. of phase |
3 |
Voltage |
400V |
Frequency |
50HZ |
Power Factor |
0.8 |
Insulation Grade |
H |
Protection Grade |
IP21-23 |
Altitude |
≤1000m |
| |
Control plane: Smartgen, Deepsea,ComAp
1) Automatic alarm system: the unit hasunit has the acousto-optics alarm system and arreand arrestor for anr for any situation as the start defeat, the water is over tempeer temperature, the oil pulls down, over speed, over load and over current
2) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible Audible and visual alarm lamps and buzzers
Supply standard collocation:
Diesel engine with all accessories, 3 filter, electric systems
Alternator
Steel structure
Fan and water tank(Fan and water tank cooling system)
Flange connector
12 / 24V starting motor and charge engine
Air cleaner, fuel cleaner, oil cleaner
On-board control panel
MCCB air conservation switch
12 / 24V starting accumulator and Battery line
Set shock absorber
High-efficient silencer
