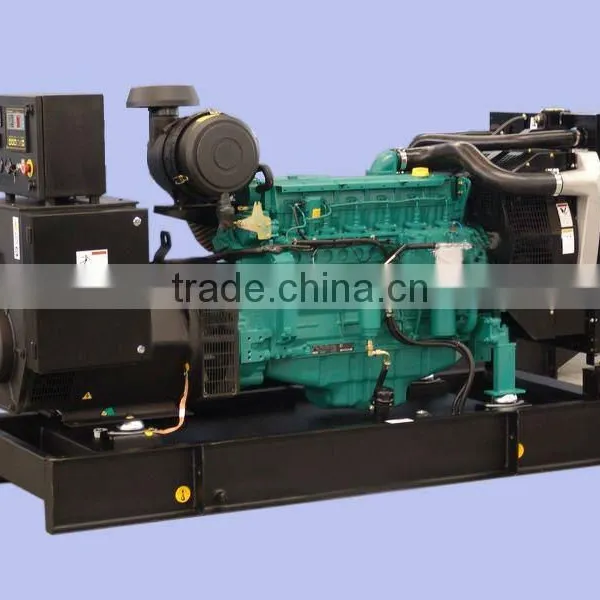

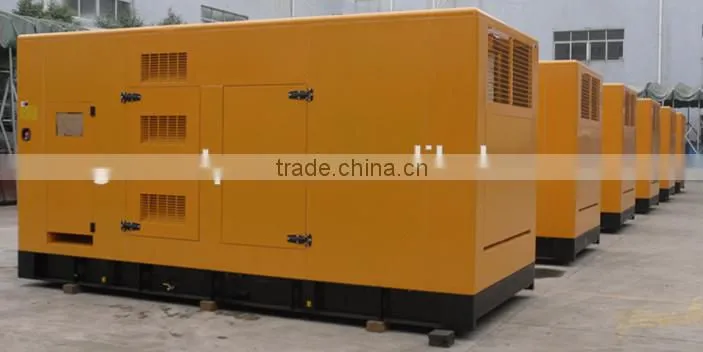

250kw to 550kw School Volvo Power Generation Equipment
volvo have been widely used in large and small automobiles, heavy-duty trucks, engineering machineries and ships. Moreover, they are the ideal drive force of power generation sets. Volvo engines have high load capability as well as fast and reliable cold start performance
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNRV95 | 68 | 85 | 76 | 95 | TD520GE | ≤213 | 4 | 4.67 | 108*130 |
| GNRV110 | 80 | 100 | 88 | 110 | TAD531GE | ≤211 | 4 | 4.67 | 108*130 |
| GNRV137 | 100 | 125 | 110 | 137 | TAD532GE | ≤204 | 4 | 4.67 | 108*130 |
| GNRV165 | 120 | 150 | 132 | 165 | TAD731GE | ≤204 | 6 | 6.51 | 108*130 |
| GNRV200 | 144 | 180 | 160 | 200 | TAD732GE | ≤204 | 6 | 6.73 | 108*130 |
| GNRV225 | 160 | 200 | 180 | 225 | TAD733GE | ≤204 | 6 | 7.28 | 108*130 |
| GNRV275 | 200 | 250 | 220 | 275 | TAD734GE | ≤200 | 6 | 7.28 | 108*135 |
| GNRV350 | 250 | 312 | 280 | 350 | TAD941GE | ≤198 | 6 | 9.36 | 131*150 |
| GNRV413 | 300 | 375 | 330 | 413 | TAD1241GE | ≤198 | 6 | 12.3 | 131*150 |
| GNRV450 | 320 | 400 | 360 | 450 | TAD1242GE | ≤198 | 6 | 12.3 | 131*150 |
| GNRV500 | 360 | 450 | 400 | 500 | TAD1640GE | ≤198 | 6 | 16.12 | 144*165 |
| GNRV560 | 400 | 500 | 450 | 560 | TAD1641GE | ≤198 | 6 | 16.12 | 144*165 |
| GNRV625 | 450 | 563 | 500 | 625 | TAD1642GE | ≤198 | 6 | 16.12 | 144*165 |
| GNRV688 | 500 | 625 | 550 | 688 | TAD1643GE | ≤198 | 6 | 16.12 | 144*165 |
generator set :
Phase No.:3 phase, 4 wires
Voltage: 220V/380V, 230V/400V, 240V/415V
Frequency: 50/60HZ
Voltage adjusting: AVR
Power factor: 0.8/1.0
Hz-adjusting range: 0-5%
V-adjusting Range: ≥95%-105%
Adjusting rate of sustained voltage: 1%
Engine: VOLVO
Type: 4 strokes direct jetting pressure increased air-to-air inter-cooling
Arrangement-cylinder: Vertical arrangement
Type of Governor: Electronically
Starting: By electricity
Alternator: Stamford,LeroySomer, Marathon,Engga
Type: brushless
Bearing: single/ double bearing.
Damping windings: full damping
Safety Guard Grade: IP21-23
Insulation grade: H grade
Short-circuit protection: Air switch
Control plane: Smartgen, Deepsea,ComAp
1) Automatic alarm system: the unit hasunit has the acousto-optics alarm system and arreand arrestor for anr for any situation as the start defeat, the water is over tempeer temperature, the oil pulls down, over speed, over load and over current
2) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible Audible and visual alarm lamps and buzzers
Supply standard collocation:
Diesel engine with all accessories, 3 filter, electric systems
Alternator
Steel structure
Fan and water tank(Fan and water tank cooling system)
Flange connector
12 / 24V starting motor and charge engine
Air cleaner, fuel cleaner, oil cleaner
On-board control panel
MCCB air conservation switch
12 / 24V starting accumulator and Battery line
Set shock absorber
High-efficient silencer
Warranty and Maintenance
1) Do the full power load test for five hours before package.
2) One year or 1000 working hours, whichever comes first.
3) After expiration, we provide spare parts maintenance with low price.
