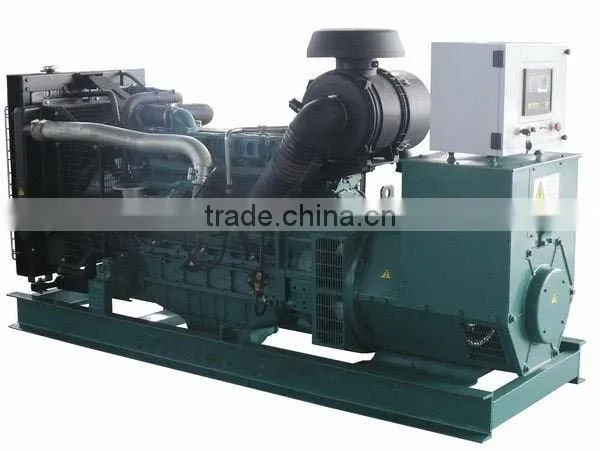

Sweden Volvo Penta Diesel Generator

Sweden Volvo Penta Diesel Generator thumbnail-1
Sweden Volvo Penta Diesel Generator photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Volvo
Model Number:
GNRV
Contact Supplier Request Quote Chat Now
Shenzhen Genor Power Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Volvo
Model Number GNRV
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50Hz or 60Hz
Rated Power 85kva to 625kva
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 122A to 900A

Specifications

-Sweden volvo diesel engine
-world famous Stamford alternator
-Smartgen controller
-Globally warranty

     volvo have been widely used in large and small automobiles, heavy-duty trucks, engineering machineries and ships. Moreover, they are the ideal drive force of power generation sets. Volvo engines have high load capability as well as fast and reliable cold start performance



Genset ModelPrime PowerStandby PowerEngineFuel ConsumptionCylinder No.DisplacementBore X Stroke
KWKVAKWKVA(g/kwh) (L )(mm)
GNRV9568857695TD520GE≤21344.67108*130
GNRV1108010088110TAD531GE≤21144.67108*130
GNRV137100125110137TAD532GE≤20444.67108*130
GNRV165120150132165TAD731GE≤20466.51108*130
GNRV200144180160200TAD732GE≤20466.73108*130
GNRV225160200180225TAD733GE≤20467.28108*130
GNRV275200250220275TAD734GE≤20067.28108*135
GNRV350250312280350TAD941GE≤19869.36131*150
GNRV413300375330413TAD1241GE≤198612.3131*150
GNRV450320400360450TAD1242GE≤198612.3131*150
GNRV500360450400500TAD1640GE≤198616.12144*165
GNRV560400500450560TAD1641GE≤198616.12144*165
GNRV625450563500625TAD1642GE≤198616.12144*165
GNRV688500625550688TAD1643GE≤198616.12144*165





generator set :



Phase No.:3 phase, 4 wires



Voltage: 220V/380V, 230V/400V, 240V/415V



Frequency: 50/60HZ



Voltage adjusting: AVR



Power factor: 0.8/1.0



Hz-adjusting range: 0-5%



V-adjusting Range:  ≥95%-105%



Adjusting rate of sustained voltage: 1%





Engine: VOLVO



Type: 4 strokes direct jetting pressure increased air-to-air inter-cooling



Arrangement-cylinder: Vertical arrangement



Type of Governor: Electronically



Starting: By electricity







Alternator: Stamford,LeroySomer, Marathon,Engga



Type: brushless



Bearing: single/ double bearing.



Damping windings: full damping



Safety Guard Grade: IP21-23



Insulation grade: H grade



Short-circuit protection: Air switch







 Control plane: Smartgen, Deepsea,ComAp


1) Automatic alarm system: the unit hasunit has the acousto-optics alarm system and arreand arrestor for anr for any situation as the start defeat, the water is over tempeer temperature, the oil pulls down, over speed, over load and over current


2) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible Audible and visual alarm lamps and buzzers



Supply standard collocation:




Diesel engine with all accessories, 3 filter, electric systems




Alternator


Steel structure


Fan and water tank(Fan and water tank cooling system)


Flange connector


12 / 24V starting motor and charge engine


Air cleaner, fuel cleaner, oil cleaner


On-board control panel


MCCB air conservation switch


12 / 24V starting accumulator and Battery line


Set shock absorber


High-efficient silencer



Warranty and Maintenance

1) Do the full power load test for five hours before package.

2) One year or 1000 working hours, whichever comes first.

3) After expiration, we provide spare parts maintenance with low price.
