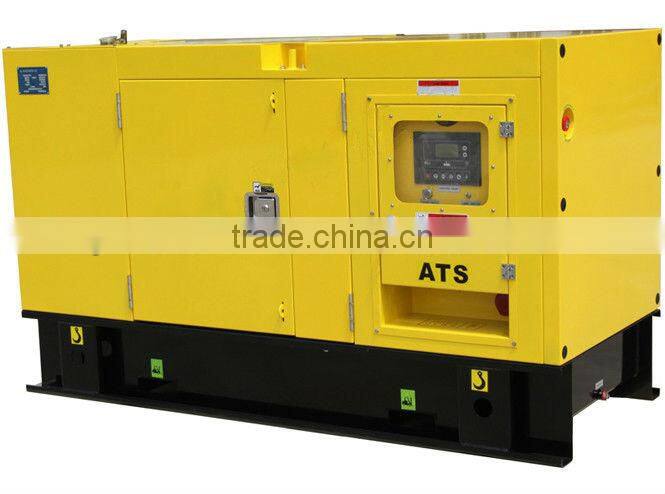

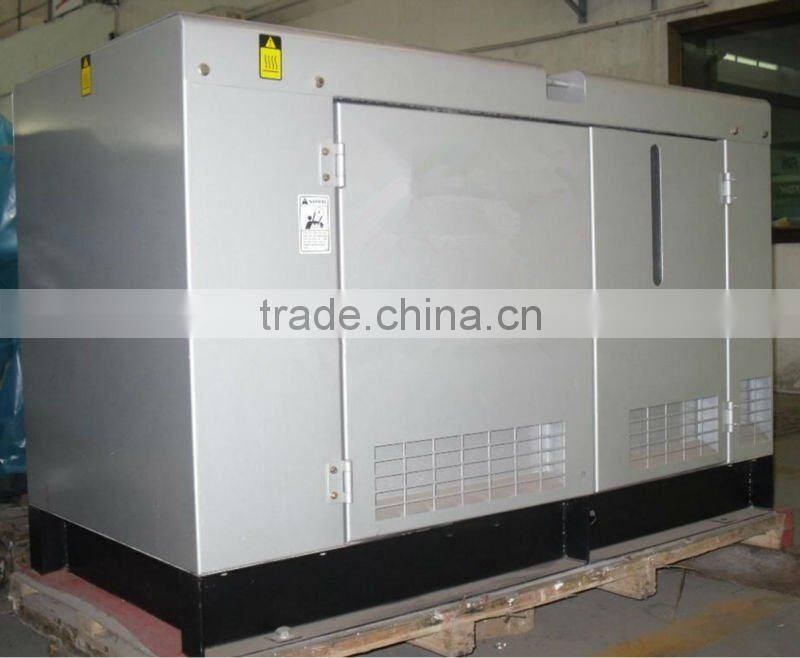

China Brand Engine Silent 7 Kva Power Generator

Specifications

     China Brand Engine 7 kva Power Generator

Be up to the GB2820.3&ISO8525 G3 class standard, and meet the requirement of YD/T502

Technical requirement of special diesel generating set for telecom.

Voltage Regulation(%):Steady state≤±1 Transient state -15~+20

Frequency Regulation(%):Steady state≤±1 Transient state -7~+10

Voltage Fluctuation ratio(%):≤0.5

Frequency Fluctuation ratio(%):≤0.5

Voltage stabilization time(When the load changes suddenly): ≤1S

Frequency stabilization time(When the load changes suddenly): ≤3S

Waveform Distortion(%):≤5

Radio interference suppression: Be accordant with the standard of VDE0875-N Class&GB2820

To meet the customer need, we can also provide 60HZ generator set which is accordant with the international regulation.

Diesel Engine

Stroke: 4

Combustion system: Direct spray or Electronic spray

Start: DC start

Cooling: Coolant radiator with fan

AC Generator

Structure Characteristics: Single bearing, automatic voltage regulation (AVR)

Excitation: Brushless & self-excited

Insulation: H grade

Level of protection: IP21 or IP23

Control Box

Manual/Automatic start & stop controller

Various Monitor Meter and Optional Switch

Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional)

MCCB for Short circuit & Overload (optional)

High water temperature alarm, Low oil pressure alarm, over speed alarm and other kind of alarm

Standard scope of supply

Diesel generating set include:

Diesel engine (with all standard accessories, filters and electric system)

Radiator (with water tank and fan)

Alternator

Control panel

Steel base frame

All above parts are assembled into a whole

Other standard parts:

Effective muffle

Exhaust elbow

Bellows

Storage battery and connection wires

Shock absorber

Technical documents

Optional equipments

Auxiliary device for starting at low temperature

ATS(Automatic transfer switch)

Genset combined device

Water fore warmer

Moisture eliminator of alternator

Various kind of monitoring system

Remote monitoring system

Fuel tank for daily use or base frame fuel tank

Other kinds of special equipment

Soundproof canopy

Mobile Diesel Generating Set

Container Generating Set

Power Station for refrigerated container generating set

Gantry Diesel Generating Set

Note:

1.  The above data is only for the customer’s reference.

2.  Those above data are for 50HZ, 1500RPM, 400V/230V, 3 PHASE 4 WIRES. Please contact with us if you need 60HZ specification or else.

3.  We reserve the rights to amend the technical specification here without prior notice.
