Specifications
Hand Start Generator1.Yangdong Engine With Stamford Alternator
2.Water Cooled
3.Deepsea Control Panel
4.CE

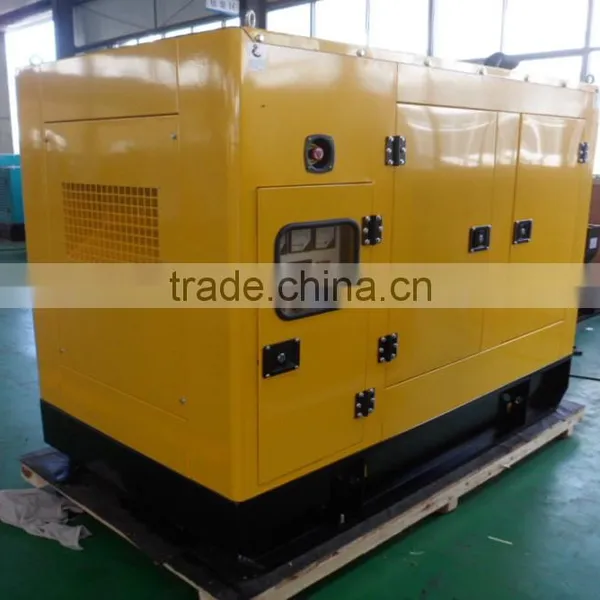

6kw to 24kw Silent Hand Start Generator With China Engine
Yangdong diesel generator set widely used in the area of industry, railway and construction. The global service net of Superwatt and Kubota can provide our customers with reliable and guaranteed service.
| Genset Model | Prime Power | Engine Model | Cynlinder No. | Packing (mm) (L x W x H) | |
| KW | KVA | ||||
| GNRY8 | 8 | 10 | YSAD380D | 3 | 1460*730*1170 |
| GNRY10 | 10 | 12.5 | Y385D | 3 | 1500*730*1170 |
| GNRY12 | 12 | 15 | YD480D | 4 | 1460*730*1170 |
| GNRY15 | 15 | 18.75 | YND485D | 4 | 1650*730*1170 |
| GNRY18 | 18 | 23 | YSD490D | 4 | 1650*730*1170 |
| GNRY20 | 20 | 25 | YND485ZLD | 4 | 1650*730*1170 |
| GNRY25 | 25 | 31 | Y4100D | 4 | 1910*730*1170 |
| GNRY28 | 28 | 35 | YSD490ZLD | 4 | 1910*730*1170 |
| GNRY30 | 30 | 37.5 | Y4102D | 4 | 1910*730*1170 |
Engine Features:
1. China most famous brand diesel engine: Yangdong
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate:≤±1%
Control system:
1) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current.
2) Operation display:
a) Unit voltage, tri-phase load current and frequency display
b) Water temperature, oil pressure display
c) Fuel level, fuel temperature display
d) Audible and visual alarm lamps and buzzers
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80 dB/7m<70dB
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
