Highest Quality ! Diesel Generator Set 10kv

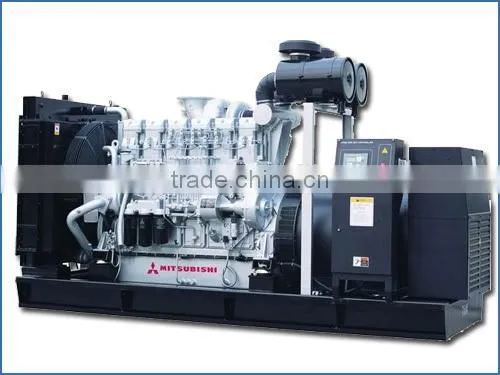

Our company install Original Mitsubishi diesel engine from Japan with Stamford or Marathon alternator and Auto-start controller.
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNRM413 | 300 | 375 | 330 | 413 | S6B3-PTA | ≤211 | 6 | 14.6 | 135*170 |
| GNRM500 | 360 | 450 | 400 | 500 | S6A3-PTA | ≤213 | 6 | 18.6 | 150*175 |
| GNRM550 | 400 | 500 | 440 | 550 | S6A3-PTAA | ≤213 | 6 | 18.6 | 150*175 |
| GNRM650 | 480 | 600 | 520 | 650 | S6R-PTA | ≤206 | 6 | 24.5 | 170*180 |
| GNRM750 | 520 | 650 | 600 | 750 | S6R2-PTA | ≤205 | 6 | 30 | 170*220 |
| GNRM825 | 600 | 750 | 660 | 825 | S6R2-PTAA | ≤211 | 6 | 30 | 170*220 |
| GNRM908 | 660 | 825 | 726 | 908 | S12A2-PTA | ≤214 | 12 | 33.9 | 150*160 |
| GNRM1125 | 800 | 1000 | 900 | 1125 | S12H-PTA | ≤206 | 12 | 37.1 | 150*175 |
| GNRM1375 | 1000 | 1125 | 1100 | 1375 | S12R-PTA | ≤205 | 12 | 49 | 170*180 |
| GNRM1500 | 1100 | 1375 | 1200 | 1500 | S12R-PTA2 | ≤205 | 12 | 49 | 170*180 |
| GNRM1650 | 1200 | 1500 | 1320 | 1650 | S12R-PTAA2 | ≤205 | 12 | 49 | 170*180 |
| GNRM1650 | 1200 | 1500 | 1320 | 1650 | S16R-PTA | ≤207 | 16 | 65.4 | 170*180 |
Electric capability of VERYPOWER diesel generator sets.
Be up to the GB2820.3&ISO8525 G3 class standard, and meet the requirement of YD/T502
Technical requirement of special diesel generating set for telecom.
Voltage Regulation(%):Steady state≤±1 Transient state -15~+20
Frequency Regulation(%):Steady state≤±1 Transient state -7~+10
Voltage Fluctuation ratio(%):≤0.5
Frequency Fluctuation ratio(%):≤0.5
Voltage stabilization time(When the load changes suddenly): ≤1S
Frequency stabilization time(When the load changes suddenly): ≤3S
Waveform Distortion(%):≤5
Radio interference suppression: Be accordant with the standard of VDE0875-N Class&GB2820
To meet the customer need, we can also provide 60HZ generator set which is accordant with the international regulation.
Diesel Engine
Stroke: 6-16
Combustion system: Direct spray or Electronic spray
Start: DC start
Cooling: Coolant radiator with fan
AC Generator
Structure Characteristics: Single bearing, AVR or DVR
Excitation: Brushless & self-excited
Insulation: H grade
Level of protection: IP21-23
Control Box
Manual/Automatic start & stop controller
Various Monitor Meter and Optional Switch
Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional)
MCCB for Short circuit & Overload (optional)
High water temperature alarm, Low oil pressure alarm, over speed alarm and other kind of alarms
Standard scope of supply
Diesel generating set include:
Diesel engine (with all standard accessories, filters and electric system)
Radiator (with water tank and fan)
Alternator
Control panel
Steel base frame
All above parts are assembled into a whole
Other standard parts:
Anti-condensation heater for alternator
Effective muffle
Exhaust elbow
Bellows
Storage battery and connection wires
Shock absorber
Technical documents
Optional equipments
High voltage switchgear
DC Power System or Inverter
Auxiliary device for starting at low temperature
ATS (Automatic transfer switch)
Genset combined device
Water forewarmer
Moisture eliminator of alternator
Various kind of monitoring system
Remote monitoring system
Fuel tank for daily use or base frame fuel tank
Other kinds of special equipment
Soundproof canopy
Mobile Diesel Generating Set
Container Generating Set
Power Station for refrigerated container generating set
Gantry Diesel Generating Set
Note:
1. The above data is only for the customer’s reference.
2. Those above data are for 50HZ, 1500RPM, 6KV or 10KV, 3 PHASE 4 WIRES.
3. We reserve the rights to amend the technical specification here without prior notice.
1. what is the warranty ?
the standard warranty is 12months or 1000 running hours, subject to the earlier mature term.
but we will offer life-time and free technological support and problem solutions.
During warranty , if any problem , the spare parts supplying will be free .
2. how do we install the generator in our place ?
before delivering the generators , our engineers have installed and checked everyhing well.
when you receive the generator , you just need to fill the cooling water ,lube oil and fuel ,
then you just push the start button ,the generator will be running automatically. your local technician also know it well .
3. What is the generator maintenance period ?
you should do the maintenances according to the manual book , your local technician can do it easily .
4.What is your MOQ, payment method, delivery time?
Our MOQ is only 1 set.
Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering. Or 100% L/C.
Welcome to place the order through the trade assurance of Alibaba.
Delivery period normally will be 15~20 days after receiving customers' deposit.
5. Can you offer OEM service and print our logo in your genertator ?
Yes. Please inform us formally before our production.
FOR MORE DETAILS AND QUOTES, CONTACT US!
