Home > Products > Mitsubishi generator set > Industrial Construction Container Soundproof Type Diesel Generator
Industrial Construction Container Soundproof Type Diesel Generator
- 200 Set / Sets per Month
- Shenzhen
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Mitsubishi | Model Number: | GNRM |
Output Type: | AC Three Phase | Speed: | 1500rpm or 1800rpm | Frequency: | 50Hz or 60Hz |
Rated Power: | 300kw to1200kw | Rated Voltage: | 220V/380V, 230V/400V, 240V/415V | Rated Current: | 540A to 2160A |
Product Description

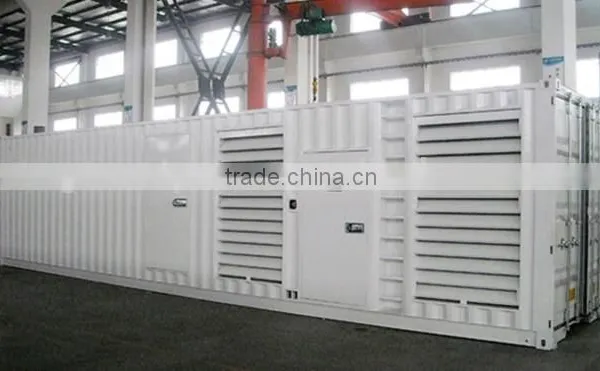

Industrial Construction Container Soundproof Type Diesel Generator
Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
GNRM413 | 300 | 375 | 330 | 413 | S6B3-PTA | ≤211 | 6 | 14.6 | 135*170 |
GNRM500 | 360 | 450 | 400 | 500 | S6A3-PTA | ≤213 | 6 | 18.6 | 150*175 |
GNRM550 | 400 | 500 | 440 | 550 | S6A3-PTAA | ≤213 | 6 | 18.6 | 150*175 |
GNRM650 | 480 | 600 | 520 | 650 | S6R-PTA | ≤206 | 6 | 24.5 | 170*180 |
GNRM750 | 520 | 650 | 600 | 750 | S6R2-PTA | ≤205 | 6 | 30 | 170*220 |
GNRM825 | 600 | 750 | 660 | 825 | S6R2-PTAA | ≤211 | 6 | 30 | 170*220 |
GNRM908 | 660 | 825 | 726 | 908 | S12A2-PTA | ≤214 | 12 | 33.9 | 150*160 |
GNRM1125 | 800 | 1000 | 900 | 1125 | S12H-PTA | ≤206 | 12 | 37.1 | 150*175 |
GNRM1375 | 1000 | 1125 | 1100 | 1375 | S12R-PTA | ≤205 | 12 | 49 | 170*180 |
GNRM1500 | 1100 | 1375 | 1200 | 1500 | S12R-PTA2 | ≤205 | 12 | 49 | 170*180 |
GNRM1650 | 1200 | 1500 | 1320 | 1650 | S12R-PTAA2 | ≤205 | 12 | 49 | 170*180 |
GNRM1650 | 1200 | 1500 | 1320 | 1650 | S16R-PTA | ≤207 | 16 | 65.4 | 170*180 |
The specification of engine:
1)engine model: mitsubishi
2)engine part :water tower,fan,fuel tank
3)governor system:electrical or mechanical governor
4)aspiration mode:natural, turbocharged
5)start method: 12V/24V DC electric starting
6)low fuel cnsumption,low noise,small volume,light weight
7)3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions
The specification of alternator:
1)alternator model: stamford, Leroy, Marathon
2)regulator: AVR automatic voltage regulating
3)insulation degree: H degree
4) Protection class :IP21-23
5)power factor:3 phase 4 wire
6)Motor: bronze brushless
7) rated voltage: 220V/380V, 230V/400V, 240V/415V .
8)rate frequency:50/60 HZ
control panel
1)automatic cutter which is suitable for the generator power.
2)Turn on key
3)A device to measure the generators speed
4)Counter for measuring the Operating hours
5)Device to measure the current overload with a switched current
6)A device to measure the battery voltage
7)Voltmeter with a voltage exchanger
8)A device to measure the frequency
9)Thermostat to regulate the voltage
10)A device to measure the oil pressure
11)Alerting lamps indicating low and high temperature
12)Controller of the current increase and short circuit
13)Emergency stop button
Accessories
1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers’ request
3. Polyester varnish for appearance protecting for shining and raining
4. Four hours testing before out factory and CCIB inspection
5. ISO9001:2000 and CE certification
