Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 375kva to 2000kva Mitsubishi Power Generator

375kva to 2000kva Mitsubishi Power Generator

375kva to 2000kva Mitsubishi Power Generator thumbnail-1
375kva to 2000kva Mitsubishi Power Generator photo-1
US$ 2,959 - 13,589 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Mitsubishi
Model Number:
GNRM
Contact Supplier Request Quote Chat Now
Shenzhen Genor Power Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Mitsubishi
Model Number GNRM
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50Hz or 60Hz
Rated Power 375KVA to 2000KVA
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 540A to 2880A

Specifications

1 Mitsubishi Diesel Generator
2 Low consumption
3 High efficiency and reliability
4 Original Japan

Our company  install Original Mitsubishi diesel engine from Japan with Stamford or Marathon alternator and Auto-start controller.



Genset Model Prime Power Standby Power Engine Fuel Consumption Cylinder No. Displacement Bore X Stroke
KW KVA KW KVA (g/kwh)  (L ) (mm)
GNRM413 300 375 330 413 S6B3-PTA ≤211 6 14.6 135*170
GNRM500 360 450 400 500 S6A3-PTA ≤213 6 18.6 150*175
GNRM550 400 500 440 550 S6A3-PTAA ≤213 6 18.6 150*175
GNRM650 480 600 520 650 S6R-PTA ≤206 6 24.5 170*180
GNRM750 520 650 600 750 S6R2-PTA ≤205 6 30 170*220
GNRM825 600 750 660 825 S6R2-PTAA ≤211 6 30 170*220
GNRM908 660 825 726 908 S12A2-PTA ≤214 12 33.9 150*160
GNRM1125 800 1000 900 1125 S12H-PTA ≤206 12 37.1 150*175
GNRM1375 1000 1125 1100 1375 S12R-PTA ≤205 12 49 170*180
GNRM1500 1100 1375 1200 1500 S12R-PTA2 ≤205 12 49 170*180
GNRM1650 1200 1500 1320 1650 S12R-PTAA2 ≤205 12 49 170*180
GNRM1650 1200 1500 1320 1650 S16R-PTA ≤207 16 65.4 170*180
GNRM1875 1300 1625 1500 1875 S16-PTA ≤207 16 65.4 170*180
GNRM2100 1500 1875 1680 2100 S16-PTA2 ≤207 16 65.4 170*180
GNRM2250 1600 2000 1800 2250 S16-PTAA2 ≤207 16 65.4 170*180



 The feature of Mitsubishi series diesel generating sets



Steady $ credible running, high shock resistance, strong load resistance, sufficient output power.



Low oil consumption, low emission;



Easy and cheap maintenance;



Small and light figure



 Electric capability of  diesel generator sets.



Be up to the GB2820.3&ISO8525 G3 class standard, and meet the requirement of YD/T502

Technical requirement of special diesel generating set for telecom.

Voltage Regulation(%):Steady state≤±1 Transient state -15~+20

Frequency Regulation(%):Steady state≤±1 Transient state -7~+10

Voltage Fluctuation ratio(%):≤0.5

Frequency Fluctuation ratio(%):≤0.5

Voltage stabilization time(When the load changes suddenly): ≤1S

Frequency stabilization time(When the load changes suddenly): ≤3S

Waveform Distortion(%):≤5

Radio interference suppression: Be accordant with the standard of VDE0875-N Class&GB2820

To meet the customer need, we can also provide 60HZ generator set which is accordant with the international regulation.



 Diesel Engine

Stroke: 6-16

Combustion system: Direct spray or Electronic spray

Start: DC start

Cooling: Coolant radiator with fan



AC Generator

Structure Characteristics: Single bearing, automatic voltage regulation (AVR)

Excitation: Brushless & self-excited

Insulation: H grade

Level of protection: IP21 or IP23



control Box

Manual/Automatic start & stop controller

Various Monitor Meter and Optional Switch

Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional)

MCCB for Short circuit & Overload (optional)

High water temperature alarm, Low oil pressure alarm, over speed alarm and other kind of alarm



Standard scope of supply

 Diesel generating set include:

Diesel engine (with all standard accessories, filters and electric system)

Radiator (with water tank and fan)

Alternator

Control panel

Steel base frame

All above parts are assembled into a whole

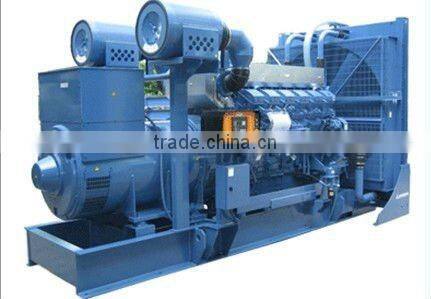

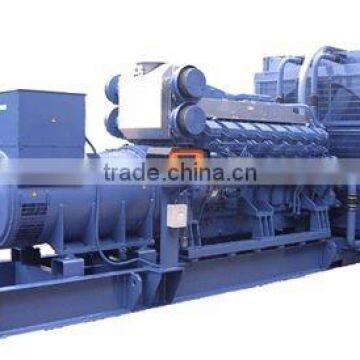

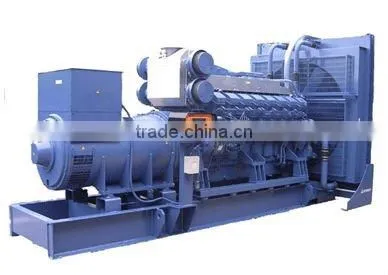

375kva to 2000kva Mitsubishi power generator
375kva to 2000kva Mitsubishi power generator375kva to 2000kva Mitsubishi power generator375kva to 2000kva Mitsubishi power generator
