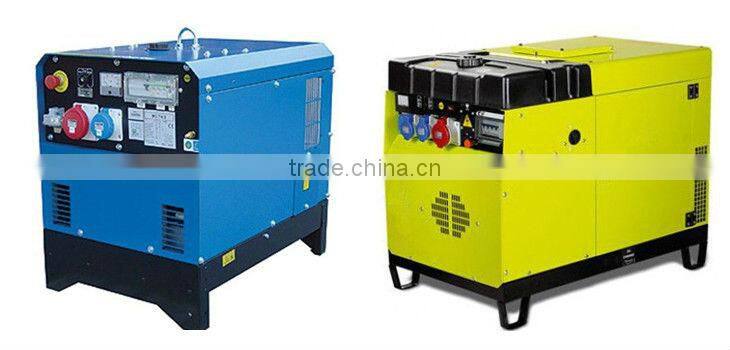

Super Silent ! 7kw Water Cooled Portable Diesel Generator

Specifications

Super Silent ! 7kw Water Cooled Portable Generator
1) Kubota OEM manufacturer
2) Stamford alternator
3) Water Cooled

Super Silent ! 7kw Water Cooled Portable Diesel  Generator



  Kubota  generator  widely used in the area of industry, railway and construction. The engine is imported from Japan. The global service net of Superwatt and Kubota can provide our customers with reliable and guaranteed service.





Genset Model	Prime Power (kva)	Engine Model	Cynlinder No.	Bore x Stroke	Displace -ment	Compression Ratio	Packing (mm) (L x W x H)
GNR-K10	10	V1505-E2BG-CHN-1	4	78 x 78.4	1.498	24:1	2000 x 960 x 1100
GNR-K13	12.5	D1703-E2BG-CHN-1	3	87 x 92.4	1.647	23:1	2000 x 960 x 1100
GNR-K18	17.5	V2203-E2BG-CHN-1	4	87 x 92.4	2.197	23:1	2000 x 960 x 1100
GNR-K20	20	V2003-T-E2BG-CHN-1	4	83 x 92.4	1.999	23:1	2000 x 960 x 1100
GNR-K28	27.5	V3300-E2BG2-CHN-1	4	98 x 110	3.318	22.6:1	2300 x 1100 x1300
GNR-K35	35	V3300-T-E2BG2-CHN-1	4	98 x 110	3.318	21.8:1	2300 x 1100 x1300



  Engine Features:

1. World most famous brand diesel engine: Kubota

2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler

4. Machinery or electronic governing

5. Fuel injection pump

6. Electric motor starting system

7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner

8. Low discharge, and low fuel consumption

9. Installed conveniently and maintain easily



Alternator Features:

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate:≤±1%



 Control system:

1.  Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current.

2. Operation display:

   a) Unit voltage, tri-phase load current and frequency display

   b) Water temperature, oil pressure display

   c) Fuel level, fuel temperature display

   d) Audible and visual alarm lamps and buzzers



Accessories

1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.

2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.



 Soundproof/Silent Box:

1. Excellent ventilation

2. Oil tank mounted on base frame for 12 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 1m<80DBA / 7m<70DBA



 Our Advantages:

1. Solve your technical problems in 24 hours and provide international warranty service for engines

2. Design the appearance form according to customers’ request

3. Polyester varnish for appearance protecting for shining and raining

4. Four hours testing before out factory

5. ISO9001 and CE certification
