Specifications
Mini Electric Generator1)Kubota Diesel Engine
2)Stamford Brushless Alternator
3)Smartgen Controller
4)220V/380V,50Hz
6kva to 10kva Super Silent Portable Mini Electric Generator
Kubota Electric generator widely used in the area of industry, railway and construction. The engine is imported from Japan. The global service net of Superwatt and Kubota can provide our customers with reliable and guaranteed service.
| Genset Model | Prime Power (kva) | Engine Model | Cynlinder No. | Bore x Stroke | Displace -ment | Compression Ratio | Packing (mm) (L x W x H) |
| GNR-K10 | 10 | V1505-E2BG-CHN-1 | 4 | 78 x 78.4 | 1.498 | 24:1 | 2000 x 960 x 1100 |
| GNR-K13 | 12.5 | D1703-E2BG-CHN-1 | 3 | 87 x 92.4 | 1.647 | 23:1 | 2000 x 960 x 1100 |
| GNR-K18 | 17.5 | V2203-E2BG-CHN-1 | 4 | 87 x 92.4 | 2.197 | 23:1 | 2000 x 960 x 1100 |
| GNR-K20 | 20 | V2003-T-E2BG-CHN-1 | 4 | 83 x 92.4 | 1.999 | 23:1 | 2000 x 960 x 1100 |
| GNR-K28 | 27.5 | V3300-E2BG2-CHN-1 | 4 | 98 x 110 | 3.318 | 22.6:1 | 2300 x 1100 x1300 |
| GNR-K35 | 35 | V3300-T-E2BG2-CHN-1 | 4 | 98 x 110 | 3.318 | 21.8:1 | 2300 x 1100 x1300 |

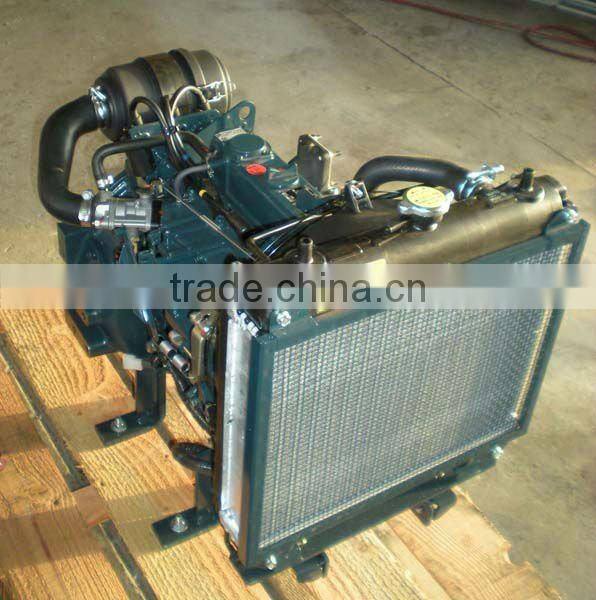

Engine Features:
1. World most famous brand diesel engine: Kubota
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate:≤±1%

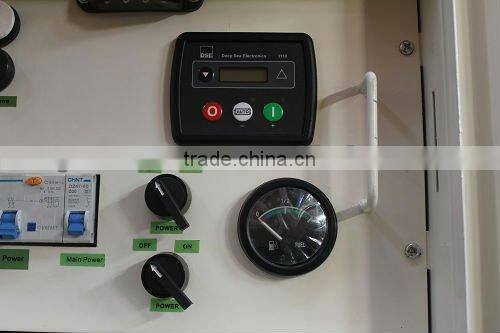

Control system:
1. Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current.
2. Operation display:
a) Unit voltage, tri-phase load current and frequency display
b) Water temperature, oil pressure display
c) Fuel level, fuel temperature display
d) Audible and visual alarm lamps and buzzers
Accessories
1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.

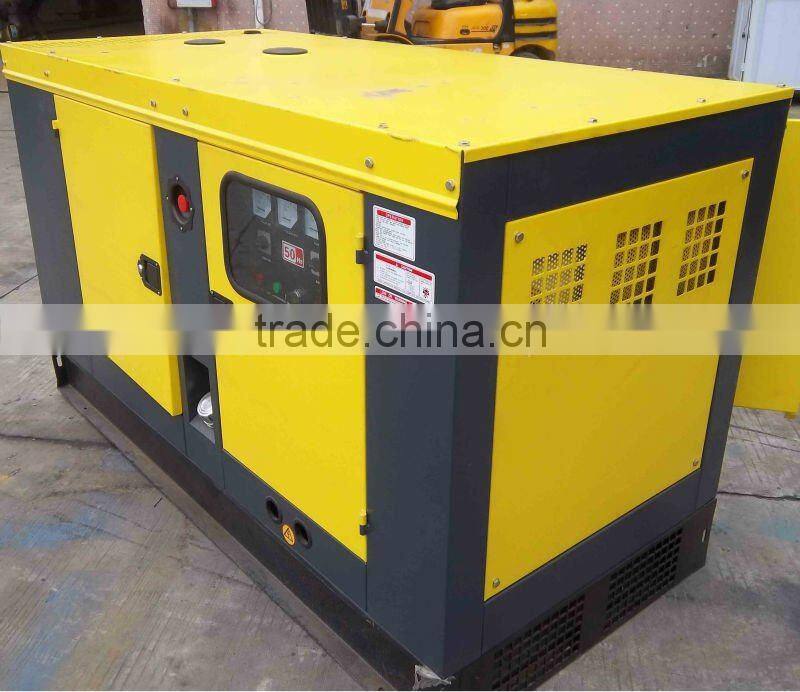

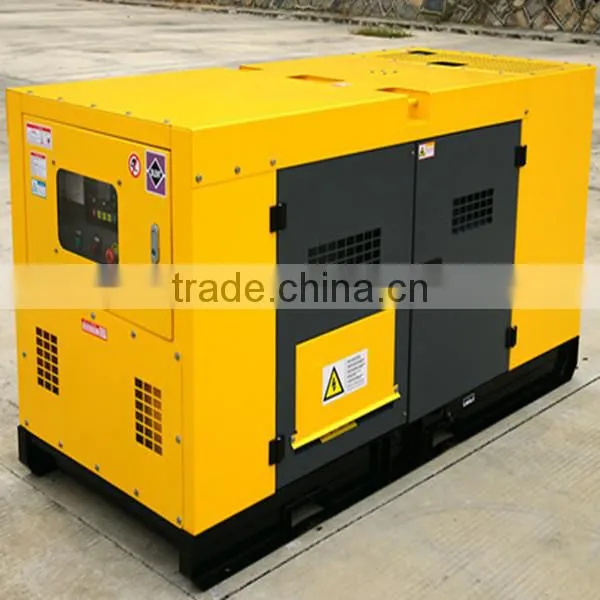

Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA
Silent Kubota Electric Geneator
