Specifications
Generator Portable1)Yanmar Generator With AC Alternator
2)High performance
3)one year warranty
4)ISO9001:2008

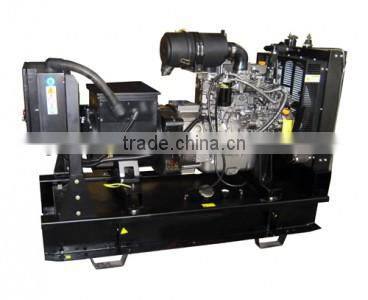

Japan Brand ! Yanmar Engine Silent Diesel Generator Portable
Japan Yanmar Diesel Generators install original Yanmar diesel engine from Japan, with Stamford or Marathon alternator and Auto-start controller.
| Genset Model | Prime Power | Standby Power | Engine Model | NO. of Cylinders | Dimension (mm) | Net Weight | ||
| KW | KVA | KW | KVA | L x W x H | (kg) | |||
| GNR7YM | 7 | 8.8 | 7.7 | 9.6 | 3TNV76 | 3 | 1580*810*930 | 300 |
| GNR8.5YM | 8.5 | 11 | 9.4 | 12 | 3TNV82A | 3 | 1580*810*930 | 320 |
| GNR10YM | 10 | 13 | 11 | 14 | 3TNV88 | 3 | 1580*810*930 | 359 |
| GNR12YM | 12 | 15 | 13 | 17 | 3TNV84T | 3 | 1580*810*930 | 422 |
| GNR16YM | 16 | 20 | 18 | 22 | 4TNV84T | 4 | 1580*810*990 | 467 |
| GNR25YM | 25 | 31 | 28 | 34 | 4TNV98 | 4 | 1580*810*990 | 467 |
| GNR32YM | 32 | 40 | 35 | 44 | 4TNV98T | 4 | 1580*810*1165 | 667 |
| GNR40YM | 40 | 50 | 44 | 55 | 4TNV106 | 4 | 1580*810*1165 | 730 |
| GNR45YM | 45 | 56 | 50 | 62 | 4TNV106T | 4 | 1580*810*1165 | 730 |
Japan Brand ! Portable Generator
Gensets compliance with all main standards, such as :GB/T2820,ISO8528,IEC34,VDE0875-N
Prime output power: 7kw to 45kw
Rated voltage:400/230v, 440/254v, 220/127v, etc.
Phase/connecting method: 3 phase 4wire/Y type connection
Rated frequency: 50/60hz
Rated speed: 1500/1800rpm
Excited type: Brushless, self excited or PMG
Insulation: Class H
Protection: IP21~IP23
Voltage regulation: AVR automatic control
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%
Engine: Yanmar
a) 4-stroke
b) Water cooling
c) Direct combustion chamber
d) Supercharging internal cooling
e) Integrated high intensity cylinder
Alternator
Engine can be coupled with WT series A.C.synchronous brushless alternator( new-style designed by ourselves,with update international technology). It can also be matched with STAMFORD,LEORY SOMER, MARATHON alternator according to customers’ demand.

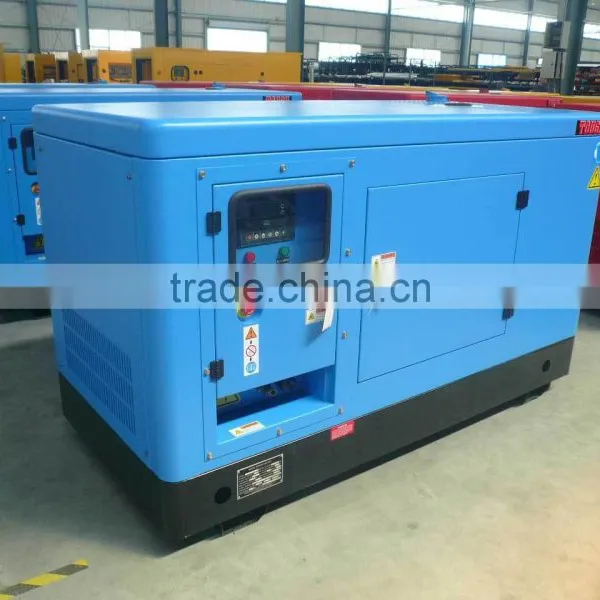

Gensets can be open type or soundproof (silent) type.
Controller system
1.Standard control panel, including voltmeter, fequency meter, ampere meter,water temperature gauge, oil temperature gauge, oil pressure gauge, AMF control module,oil level indicator, emergency button,preheating button, battery voltage gauge, hours running counter for protection and tranfering.
2.It can be with ATS electric control cabinet, including circuit breaker, LCD or LED auto controller, indicating lamp, transfer switch,etc.. Automatic transfer switch (ATS) uses update technology, which can be automatic control for on-off electricity, remote monitoring, automatic parallel operation,etc…
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
Our Advantages:
a)Solve your technical problems in 24 hours and provide international warranty service for engines
b) Design the appearance form according to customers’ request
c) Polyester varnish for appearance protecting for shining and raining
d)Two hours testing before out factory
e)ISO9001 and CE certification
