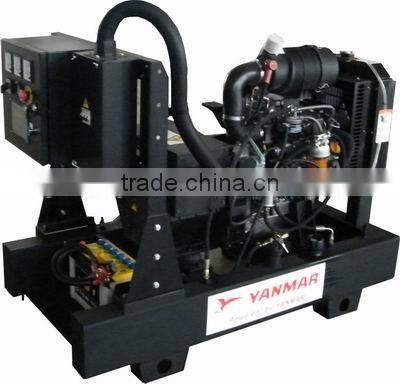

12kw to 45kw Japanese with Yanmar Engine Diesel Generator
| Genset Model | Prime Power | Standby Power | Engine Model | NO. of Cylinders | Dimension (mm) | Net Weight | ||
| KW | KVA | KW | KVA | L x W x H | (kg) | |||
| GNR7 | 7 | 8.75 | 7.7 | 9.625 | 3TNV776 | 3 | 1580*810*930 | 300 |
| GNR8.5 | 8.5 | 10.625 | 9.35 | 11.7 | 3TNV82A | 3 | 1580*810*930 | 320 |
| GNR10 | 10 | 12.5 | 11 | 13.75 | 3TNV88 | 3 | 1580*810*930 | 359 |
| GNR12 | 12 | 15 | 13.2 | 16.5 | 3TNV84T | 3 | 1580*810*930 | 422 |
| GNR6 | 16 | 20 | 17.6 | 22 | 4TNV84T | 4 | 1580*810*990 | 467 |
| GNR25 | 25 | 31.3 | 27.5 | 34.375 | 4TNV98 | 4 | 1580*810*990 | 467 |
| GNR32 | 32 | 40 | 35.2 | 44 | 4TNV98T | 4 | 1580*810*1165 | 667 |
| GNR40 | 40 | 50 | 44 | 55 | 4TNV106 | 4 | 1580*810*1165 | 730 |
| GNR45 | 45 | 56.25 | 49.5 | 61.87 | 4TNV106T | 4 | 1580*810*1165 | 730 |
Specification:
1) Engine: YANMAR diesel engine , Water cooled
2) Alternator: 3 Phase 4 Wire, Brushless, H class Insulation, Self-Exited ,IP23 Protection, AVR regulation, Voltage deviation: ±0.5%, THF<5%,low radio interference.
3) Output range: 50 Hz power outputs: 8.75-56.25 KVA
60 Hz Power outputs: 10-62.5 KVA
4) Frequency: 50 & 60Hz
5)3 Phase 4 Wire & 1 Phase 2 Wire
6)Speed: 1500rpm1800rpm
Control system:
1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
4 Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C
5 Filter system: oil, fuel and air filter
6 Accessories: exhaust elbow, bellow, muffler
Supply standard configure:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) MCCB air conservation switch
Accessories:
1) Standard accessories: Standard 40 radiator mounted on skid ,Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit ,operation manual and document
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer
1. what is the warranty ?
the standard warranty is 12months or 1000 running hours, subject to the earlier mature term.
but we will offer life-time and free technological support and problem solutions.
During warranty , if any problem , the spare parts supplying will be free .
2. how do we install the generator in our place ?
before delivering the generators , our engineers have installed and checked everyhing well.
when you receive the generator , you just need to fill the cooling water ,lube oil and fuel ,
then you just push the start button ,the generator will be running automatically. your local technician also know it well .
3. What is the generator maintenance period ?
you should do the maintenances according to the manual book , your local technician can do it easily .
4.What is your MOQ, payment method, delivery time?
Our MOQ is only 1 set.
Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering. Or 100% L/C.
Welcome to place the order through the trade assurance of Alibaba.
Delivery period normally will be 15~20 days after receiving customers' deposit.
5. Can you offer OEM service and print our logo in your genertator ?
Yes. Please inform us formally before our production.
