Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 7kw to 35kw Silent Japan Yanmar Generator Set With CE

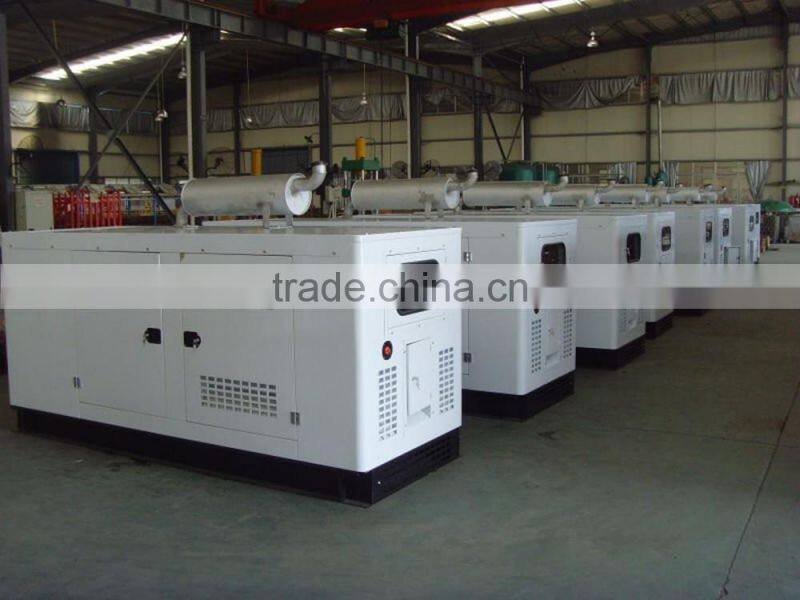

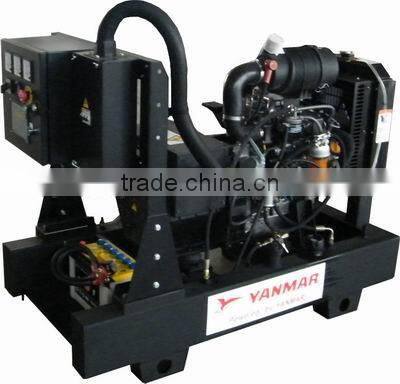

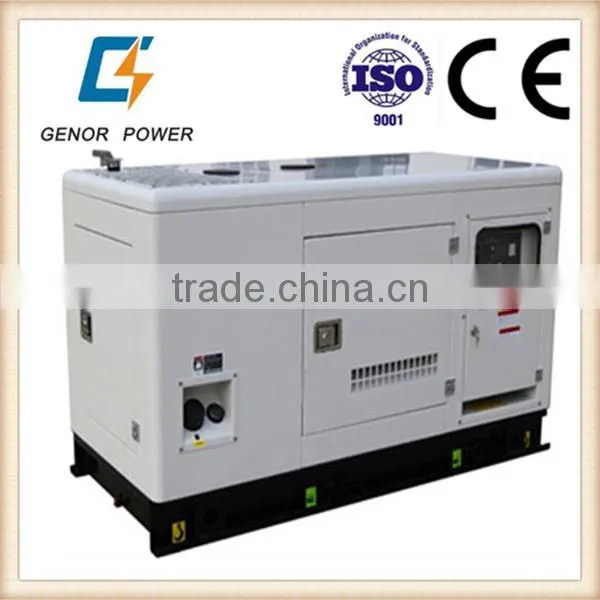

7kw to 35kw Silent Japan Yanmar Generator Set With CE

Name: 7kw to 35kw Silent Japan Yanmar Generator Set With CE
Brand: Yanmar
SKU: 140638714
Availability: InStock

7kw to 35kw Silent Japan Yanmar Generator Set With CE thumbnail-1

7kw to 35kw Silent Japan Yanmar Generator Set With CE photo-1

US$ 3,145 - 11,259 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Yanmar

Model Number:

GNR

Contact Supplier Request Quote Chat Now

Shenzhen Genor Power Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Yanmar

Model Number GNR

Output Type AC Three Phase

Speed 1500rpm or 1800rpm

Frequency 50Hz or 60Hz

Rated Power 7KW to 45KW

Rated Voltage 127V/220V, 220V/380V, 230V/400V, 240V/415V

Rated Current 10A to 90A

Specifications

Yanmar Generator Set
1) Yanmar Diesel Engine With Stamford
2) 1year warranty
3) engine imported from Japan
4) water Cool

7kw to 35kw Silent Japan Yanmar Generator Set With CE

Genset Model	Prime Power		Standby Power		Engine Model	NO. of Cylinders	Dimension (mm)	Net Weight
Genset Model	KW	KVA	KW	KVA	Engine Model	NO. of Cylinders	L x W x H	(kg)
GNR7YM	7	8.8	7.7	9.6	3TNV76	3	1580810930	300
GNR8.5YM	8.5	11	9.4	12	3TNV82A	3	1580810930	320
GNR10YM	10	13	11	14	3TNV88	3	1580810930	359
GNR12YM	12	15	13	17	3TNV84T	3	1580810930	422
GNR16YM	16	20	18	22	4TNV84T	4	1580810990	467
GNR25YM	25	31	28	34	4TNV98	4	1580810990	467
GNR32YM	32	40	35	44	4TNV98T	4	15808101165	667
GNR40YM	40	50	44	55	4TNV106	4	15808101165	730
GNR45YM	45	56	50	62	4TNV106T	4	15808101165	730

Specification:

1) Engine: YANMAR diesel engine , Water cooled

2) Alternator: 3 Phase 4 Wire, Brushless, H class Insulation, Self-Exited ,IP23 Protection, AVR regulation, Voltage deviation: ±0.5%, THF<5%,low radio interference.

3) Output range: 50 Hz power outputs: 8.75-56.25 KVA
60 Hz Power outputs: 10-62.5 KVA

4) Frequency: 50 / 60Hz

5) 3 Phase 4 Wire / 1 Phase 2 Wire

6) Speed: 1500rpm / 1800rpm

7) Three Phase Voltage Available: 208V / 220V / 230V / 240V / 380V / 390V / 400V / 415V / 440V / 460V / 480V . Single Phase Voltage Available: 100-250V

Control system:

1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
   b) Operation display:
       i) Unit voltage, tri-phase load current and frequency display
       ii) Water temperature, oil pressure display
       iii) Fuel level, fuel temperature display
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
4 Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C
5 Filter system: oil, fuel and air filter
6 Accessories: exhaust elbow, bellow, muffler

Silent Box:

1. Excellent ventilation

2. Oil tank mounted on base frame for 12 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 1m<80 dB / 7m<70dB

Accessories:
1) Standard accessories: Standard 40 radiator mounted on skid ,Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit ,operation manual and document
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
