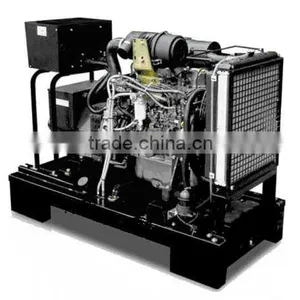

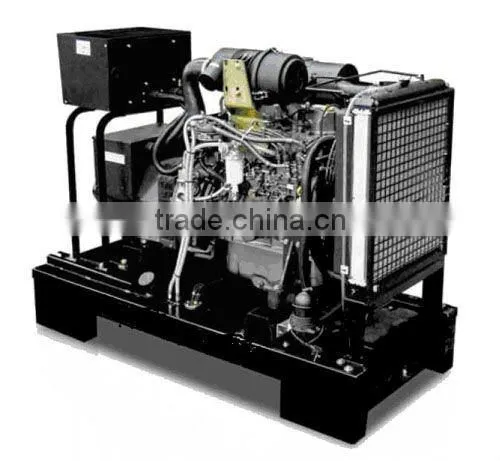

20kw Yanmar Generator Set Electric Generator
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Yanmar
Model Number:
GNR
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
7kw to 45kw Yanmar l GensetNegotiableMOQ: 1 Set -
Yanmar Diesel GensetNegotiableMOQ: 1 Set
-
8kw to 35kw Japan Engine Yanmar Silent Diesel GeneratorUS$ 3,785 - 14,595MOQ: 1 Set
-
7kw to 35kw Silent Japan Yanmar Generator Set With CEUS$ 3,145 - 11,259MOQ: 1 Set
-
7kw to 40kw Japanese Silent Yanmar Diesel Generator SetUS$ 3,145 - 14,595MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Yanmar
Model Number
GNR
Output Type
AC Three Phase
Speed
1500rpm or 1800rpm
Frequency
50Hz or 60Hz
Rated Power
7KW to 45KW
Rated Voltage
127V/220V, 220V/380V, 230V/400V, 240V/415V
Rated Current
10A to 90A
Specifications
Yanmar diesel generator1year warranty
engine imported from Japan
GNR-20 Diesel generator set adopted YANMAR(Made in China) engine, STAMFORD Alternator and the world famous brand controlling system, which has high quality and fit the standard system of GB/T2819, GB/T2820.
| SPECIFICATIONS | ||
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | GNR-20 |
| 1.2 | Prime at 50HZ, 40°C ambient | 15.8KW 19.8kVA |
| 1.3 | Standby at 50HZ, 40°C ambient | 17.4KW 21.8kVA |
| 1.4 | Rated Gen-set output | 230/400V 50Hz |
| 1.5 | Rated Relative humidity | ≤ 30 % |
| 1.6 | Dimension (L×W×H) | 1300×610×1160mm |
| 1.7 | Weight | 485kg |
| 1.8 | Fuel consumption 100% prime load | 5.570L/h |
| 1.9 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 1.10 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | YANMAR |
| 2.2 | Engine Model | 4TNV84T-GGE |
| 2.3 | Governor/Class | Mechanical |
| 2.4 | Cylinder NO. | 4 |
| 2.5 | Engine build | Line |
| 2.6 | start-up method | 12V, electric |
| 2.7 | Battery capacity | 100Ah |
| 2.8 | Fuel spray pattern | Direct Injection |
| 2.9 | Aspiration | Turbocharge |
| 2.10 | Cooling mode | Radiator cooled (enclose water) |
| 2.11 | Bore and stroke | 84 × 90mm |
| 2.12 | Compression ratio | 18.9:1 |
| 2.13 | Displacement | 1.995L |
| 2.14 | Engine Prime Power at 1500rpm | 19.1kWm |
| 2.15 | Engine Standby Power at 1500rpm | 21kWm |
| 2.16 | Fuel type | #0 Diesel (Natural temperature) |
| 2.17 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.18 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTENATOR | ||
| 3.1 | Alternator Model | Stamford/PI 144D |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5% |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 32.4A |
| 3.12 | Efficiency | 84.20% |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1,NEMA1 |
| 3.17 | Max. Ambient Temperature | 40°C |
| 3.18 | Min. Ambient Temperature | - 20°C |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 120kg |
Test & Commissioning
Each generator has passed harsh test under 0%, 25%, 50%, 75%, 100% load as well as one hour long overload test.
Warranty Terms
12 months or 1000 hours (subject to which reaches earlier)
Certificates
ISO9001:2000, CE, ISO14001:2004
