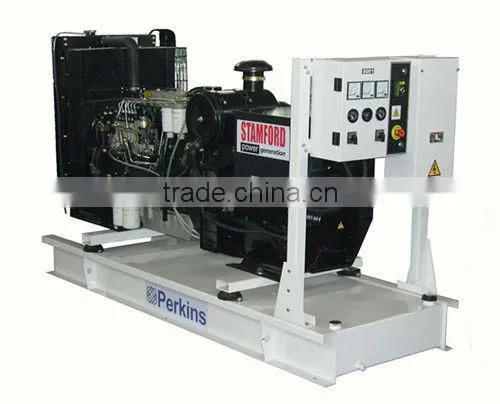

WIth Perkins Engine 320kw Diesel Power Generators
UK imported diesel generator have earned a reputation for ease of service along with low costs of maintenance and repair and all UK imported Power part products carry an unequivocal 12-months warranty from date of purchase.
The main parameters of the engine | |
Brand |
UK imported |
Model |
2206C-E13TAG3 |
Standby power |
350KW/437.5KVA |
Type |
four strokes, waste gas turbine boost,direct spurting type |
Cooling way |
water cooling |
With type |
Inline type |
Bore*Trip |
130mm*157mm |
Cylinder |
6cylinders |
Displacement |
12.5L |
Lubricating Capacity |
40L |
Speed adjustment way |
electronic speed |
Rotating speed |
1500r/min |
Starting way |
starting with electricity |
The main parameters of the generator | |
Brand |
Stamford |
Model |
UCD274J |
Type |
brushless (AVR automatic voltage regulating) |
The connecting way of the phase |
three phases four lines |
Insulation degree |
H degree |
TIF |
<50 |
THF |
<2% |
The factor of rated power |
≤±1% |
Grading Protection |
IP23 |
Unit parameters | |
Power |
320kw/400KVA |
Rated voltage |
400V/230V |
Rated current |
576A |
Rated frequency |
50 HZ |
The factor of rated power |
0.8 |
The regulating rate of instantaneous voltage |
≤-15%/ +20%
|
The regulating rate of steady voltage |
≤±1% |
The time of steady voltage |
≤3sec |
The waving rate of voltage |
≤0.5% |
Voltage waveform distortion degree |
≤8% |
The regulating rate of steady frequency |
≤5%
|
The regulating rate of instantaneous frequency |
≤-10%/+12% |
The time of steady frequency |
3sec |
The waving rate of frequency |
≤1.5% |
The waste of fuel with full load |
206g/kw.h |
Size(mm) |
3650*1200*2000 |
Weight(kg) |
3300 |
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
PMC System:
1. Standard 23 pitch windings avoid excessive neutral current
2. Permanent magnet generator system provides constant excitation under all condition
3. Optional accessories available for easy paralleling with mains or other generators
4. AVR auto voltage regulation, auto exciter, auto adjustment
