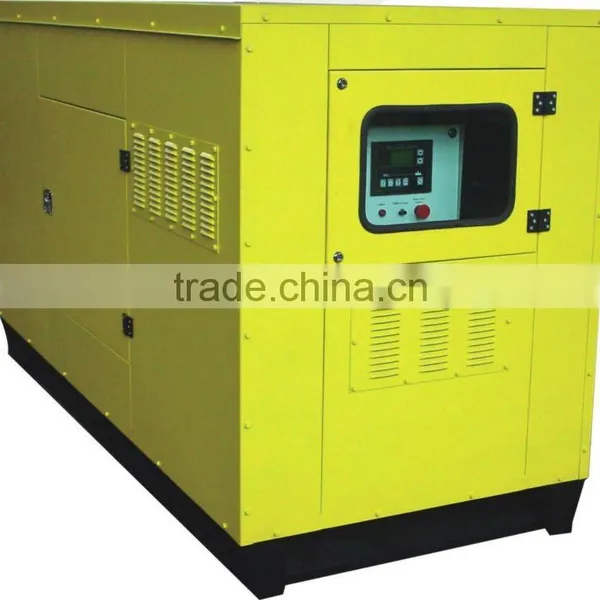

10KVA to 500KVA Silent diesel engine power station
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNRP10 | 7 | 9 | 8 | 10 | 403D-11 | 252 | 3 | 1.131 | 77*81 |
| GNRP15 | 11 | 13 | 12 | 15 | 403D-15 | 264 | 3 | 1.496 | 84*94 |
| GNRP33 | 24 | 30 | 26 | 33 | 1103A-33G | 210 | 3 | 3.3 | 105*127 |
| GNRP50 | 36 | 45 | 40 | 50 | 1103A-33TG1 | 212 | 3 | 3.3 | 105*127 |
| GNRP65 | 48 | 60 | 52 | 65 | 1103A-33TG2 | 211 | 3 | 3.3 | 105*127 |
| GNRP88 | 64 | 80 | 70 | 88 | 1104A-44TG2 | 213 | 4 | 4.4 | 105*127 |
| GNRP103 | 75 | 94 | 82 | 103 | 1006TG1A | 210 | 6 | 5.99 | 100*127 |
| GNRP150 | 110 | 138 | 120 | 150 | 1006TAG | 205 | 6 | 5.99 | 100*127 |
| GNRP165 | 120 | 150 | 132 | 165 | 1006TAG2 | 205 | 6 | 5.99 | 100*127 |
| GNRP225E | 165 | 206 | 180 | 225 | 1306C-E87TAG3 | 220 | 6 | 8.7 | 117*136 |
| GNRP250E | 180 | 225 | 200 | 250 | 1306C-E87TAG4 | 219 | 6 | 8.7 | 117*136 |
| GNRP275E | 200 | 250 | 220 | 275 | 1306C-E87TAG6 | 223 | 6 | 8.7 | 117*136 |
| GNRP344E | 250 | 313 | 275 | 344 | 2206C-E13TAG2 | 201 | 6 | 14.6 | 137*165 |
| GNRP450E | 320 | 400 | 360 | 450 | 2206C-E13TAG3 | 201 | 6 | 14.6 | 137*165 |
| GNRP500E | 360 | 450 | 400 | 500 | 2506C-E15TAG1 | 216 | 6 | 15 | 137*171 |
| GNRP550E | 400 | 500 | 440 | 550 | 2506C-E15TAG2 | 211 | 6 | 15 | 137*171 |
Gnset Features:
1. Genuine UK industrial diesel engine
2. Radiator 40°C max, fans are driven by belt, with safety guard
3. Genuine stamford. Leroy somer, marathonm, engga alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
9.Mould case circuit breaker
10. 24V DC start motor and storage battery
11. 24V charge alternator
12. 24V batteries, rack and cable
13. Rippl;e flex echaust pipe, exhaust siphon, flange, and muffler
14. Comply with ISO and CE standards
15. All generator sets are gone through rigorous testing before beging released to the market place, including 50% load, 75% load, 100% load and all protection function(over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Engine Features:
1. Genuine UK industrial diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA
Control Panel:
1. Automatic control panel (AMF), LCD display
2. Four protection systems
3. Emergency stop
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
PMC System:
1. Standard 23 pitch windings avoid excessive neutral current
2. Permanent magnet generator system provides constant excitation under all condition
3. Optional accessories available for easy paralleling with mains or other generators
4. AVR auto voltage regulation, auto exciter, auto adjustment
1. what is the warranty ?
the standard warranty is 12months or 1000 running hours, subject to the earlier mature term.
but we will offer life-time and free technological support and problem solutions.
During warranty , if any problem , the spare parts supplying will be free .
2. how do we install the generator in our place ?
before delivering the generators , our engineers have installed and checked everyhing well.
when you receive the generator , you just need to fill the cooling water ,lube oil and fuel ,
then you just push the start button ,the generator will be running automatically. your local technician also know it well .
3. What is the generator maintenance period ?
you should do the maintenances according to the manual book , your local technician can do it easily .
4.What is your MOQ, payment method, delivery time?
Our MOQ is only 1 set.
Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering. Or 100% L/C.
Welcome to place the order through the trade assurance of Alibaba.
Delivery period normally will be 15~20 days after receiving customers' deposit.
5. Can you offer OEM service and print our logo in your genertator ?
Yes. Please inform us formally before our production.
FOR MORE DETAILS AND QUOTES, CONTACT US!
