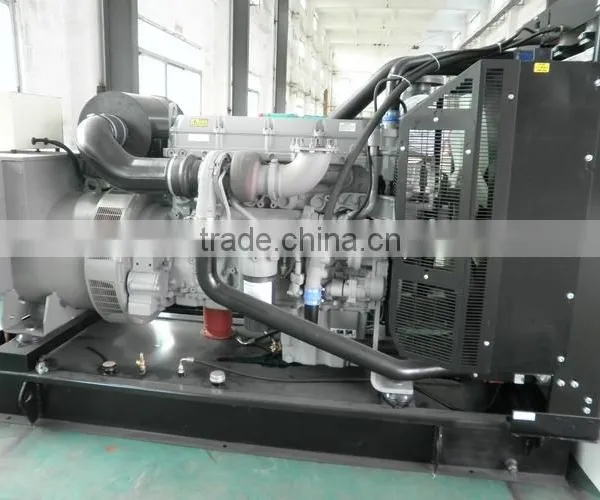

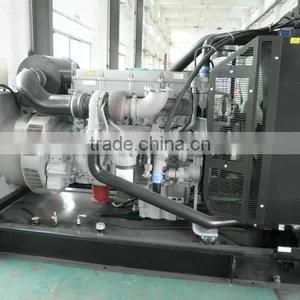

With Perkins Diesel Engine 600kva Generator
Our diesel generator have earned a reputation for ease of service along with low costs of maintenance and repair and all Power part products carry an unequivocal 12-months warranty from date of purchase.
Engine
Engine Model |
2806C-E18TAG1A |
Number of Cylinders |
6 |
Cylinder arrangement |
Vertical in-line |
Cycle |
Four stroke |
Aspiration |
Natural Aspiration |
Bore×Stroke (mm×mm) |
145X183 |
Displacement (Liter) |
18.1 |
Compression Ratio |
14.5:1 |
Prime Power/Speed (kW/rpm) |
480/1500 |
Standby Power/Speed (kW/rpm) |
520/1500 |
Speed Governor |
Electronic |
Cooling System |
Water-cooled , 40°C Radiator As Standard, 50°C Is Optional. |
Speed Stability (%) |
≤5% |
Total lubrication system capacity (L) |
68 |
Coolant capacity (without radiator) (L) |
71.6 |
Fuel Consumption at 100% Load (g/kWh) |
203(at 1500RPM) |
Starter Motor |
DC24V, |
Alternator |
AC24V |
Alternator
Alternator Model |
Stamford |
Phase/Connect |
3-phase 4-wire ,Y type connection |
Excition Model |
Self-excite,automatic voltage regulation, Insulation:H,Bruhless, Enclosure:IP21—IP23 |
Power Factor |
0.8 |
The regulating rate of instantaneous voltage: |
-15%~ +20% |
The time of steady voltage: |
≤1.5sec |
The waving rate of voltage: |
≤1.0% |
The regulating rate of steady frequency: |
≤5% |
regulating rate of instantaneous frequency: |
≤±10% |
The time of steady frequency: |
3sec |
The waving rate of frequency: |
≤1% |
Control system with ATS :
Auto start when power goes out
Auto stop when power comes back on
Worldwide technical support with programmable software download
Full online documentation
Trouble shooting symbols to assist owner on concerns with the generator
Safety shutdown feature to protect the engine and generator from damage
Totally digital with few points of contact to the engine to increase reliability
Exercise features and daily start and stop programmable
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80DBA / 7m<70DBA
