Specifications
10kva Diesel Generator Silent Compact1.UK Diesel Engine with stamford
2 Prime Power :10kw
3.Warranty:1 Year
4.CE

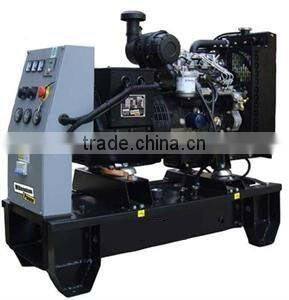

50Hz 3 Phase Water Cooled Engine 10kva Diesel Generator Silent Compact
Generator Model |
GNRP10 |
|
Prime |
Standby |
|
Generator power(KVA) |
12.5 |
13.75 |
Generator power(KW) |
10 |
11 |
Engine power(KW) |
13.2 |
|
Engine model |
403D-15G |
|
Engine type |
water-cooled, in line, 4-stroke, direct injection 3-cylinder, Nat. |
|
Bore x Stroke(mm) |
84x90 |
|
Displacement (L) |
1.5 |
|
Compression ratio |
23.5:1 |
|
Electric governing rate |
less 1% |
|
Noise Level (dBA) |
less95 |
|
Starting method |
Electrical |
|
Fuel consumptions (L/h) |
6.8 |
|
Lub oil Capacity (L) |
6 |
|
Alternator model |
PI044F |
|
Exciting method |
Brushless |
|
Rated power factor |
0.8 LAG |
|
Connect method |
three-phrase four-wire |
|
Regular |
AVR |
|
Insulation class |
H |
|
Protection class |
IP23 |
|
Dimensions(L* W*H)(mm) |
1550*720*1100 |
|
Gross weight(kg) |
660 |
|
Packed volume(CBM) |
1.3 |
|
Control Panel
1. Key switch control panel
Shock resist is fitted between control panel and generator set. Loose sheet is also fitted. The equipments of control panel are Meters with Voltmeter,Ammeter,Frequency list,Water thermometer,Oil pressure gauge,Hour meter.
2. Control parts
Start/stop key switch, start button, emergency stop button, voltage regulation
resistance, speed regulation resistance. Voltage phase switch ,Electric current phase selecting switch.
3. Protection setting for engine
For emergency shut down, overfeed, high water temperature, low oil pressure. ATS switch is optional components when some accidents appear, The digital Protector can shut dow
Automatic alarm system: the unit has the acousto-optics alarm system and
arrestor for any situation as the start defeat, the water is over temperature, the oil
pulls down, over speed, over load and over current
standard configuration of generator
1) Starting system: DC alternator is used to start engine
2) Short circuit protection: MCCB air switch
3) Cooling system: combined cooling water tank fitted to meet the requirement
of radiation at ambient temperature 40°C
4) Filter system: oil, fuel and air filter
5) Accessories: exhaust elbow, bellow, muffler

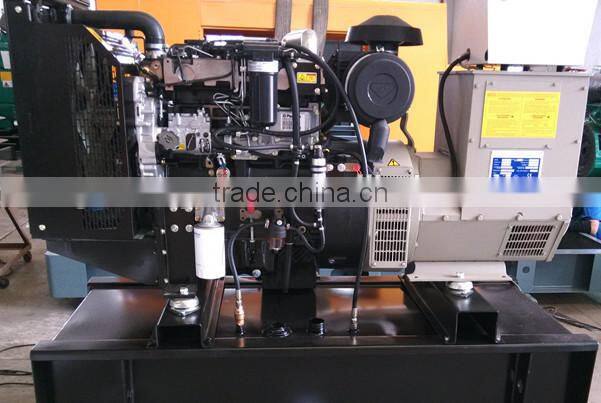

Open Type 10kw Generator
