Specifications
8kva best home power generators- Engine & Stamford Alternator
-ComAp controller
-Warranty:12 months
-Factory Price

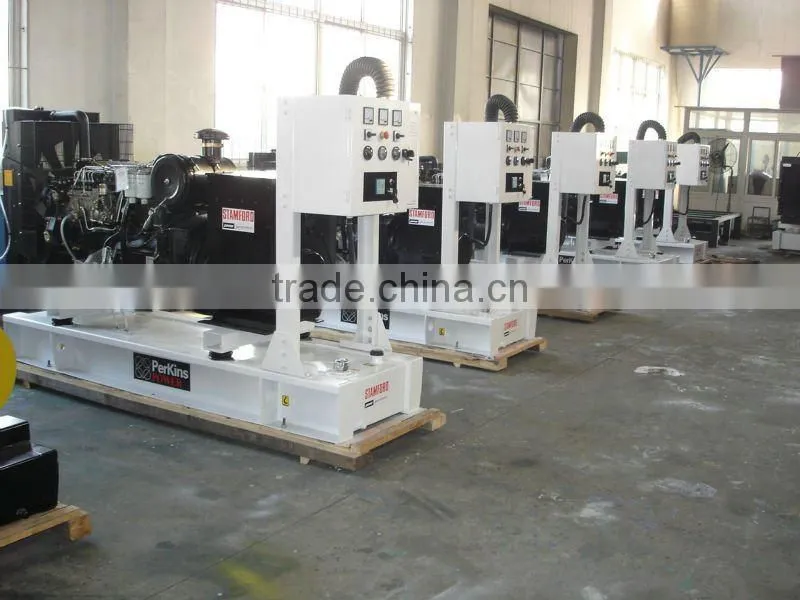

8kva best home power generators
General Features of 100kva generator:
*Powered by heavy duty industrial diesel engine, Cummins/Deutzor China brand engines
*Radiator 40°C max, fans are driven by belt, with safety guard
*12//24V DC start motor and storage battery
*Brushless, self-excited, IP22/23, insulation H alternator
*Absorber to reduce vibration
*Dry type air filter, fuel filter, oil filter
*Main line circuit breaker
*Control system: Key start control panel as standard, digital auto start or ATS system is optional
*8 hours operation base fuel tank
*High efficient muffler to reduce noise
*Ripple flex exhaust pipe, exhaust siphon and flange etc.
*Genset type: open type or soundproof/silent type, or trailer type
* Maintenance and operation manual, quality certificate, etc.
*Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110%
and all protection function(over speed stop, high water temperature, low oil pressure, battery
charging fail, emergency stop)
*Certificate: ISO9001:2000, CE (ESC/070119), BV
MAIN TECHNICAL DATA SHEET
GENERATOR SET | |
Genset model |
GNRP100 |
Prime power (KW/KVA) |
80/100 |
Standby power (KW/KVA) |
88/110 |
Net Wet(kg/Open) |
1550 |
Packing Size(L*W*H, mm, open type) |
2340*850*1400 |
DIESEL ENGINE | |
Engine brand & Model |
1006TG2A |
Rated output(kw/1500rpm) |
92.3 |
Max. output(kw/1500rpm) |
102 |
Rated Output(KW/1800rpm) |
108.4 |
Max. output(kw/1800rpm) |
119.2 |
Governing method |
Mechanical/electric |
Aspirated |
Turbocharged |
Cylinder number |
6 |
Bore*stroke |
100*127 |
Capacity of lubrication |
16.1L |
Fuel Consumption |
≤205g/kw.h |
Displacement |
5.98L |
Starting method |
Electric start |
Cooling method |
Closed water cooled |
ALTERNATOR | |
Alternator brand & model |
Stamford/Leroy Somer/Marathon/Engga |
Type |
Brushless & self-excited |
No. of phase |
3 |
Voltage |
230/400V |
Frequency |
50HZ |
Power Factor |
0.8 |
Insulation Grade |
H |
Protection Grade |
IP22/23 |
Altitude |
≤1000m |
| |
Engine Features:
1. Genuine UKindustrial diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Control system with ATS :
Auto start when power goes out
Auto stop when power comes back on
Worldwide technical support with programmable software download
Full online documentation
Trouble shooting symbols to assist owner on concerns with the 100kva generator
Safety shutdown feature to protect the engine and generator from damage
Totally digital with few points of contact to the engine to increase reliability
Exercise features and daily start and stop programmable
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
PMC System:
1. Standard 23 pitch windings avoid excessive neutral current
2. Permanent magnet generator system provides constant excitation under all condition
3. Optional accessories available for easy paralleling with mains or other generators
4. AVR auto voltage regulation, auto exciter, auto ajustment
