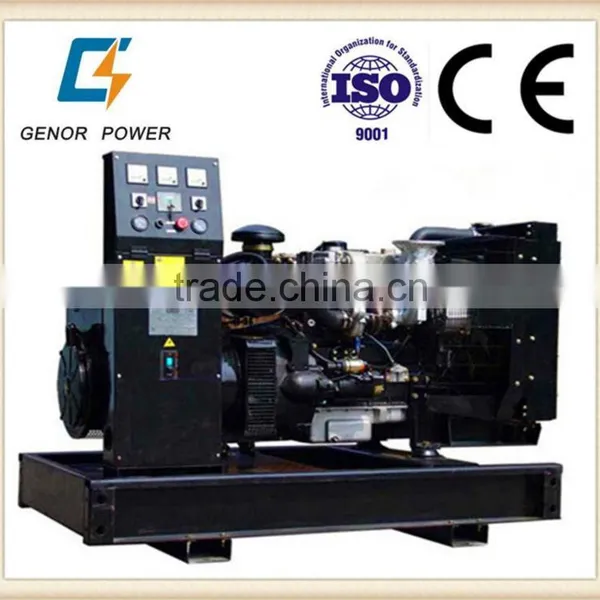

With Perkins Diesel Engine off-grid 50000 watt generator
UK imported power generator have earned a reputation for ease of service along with low costs of maintenance and repair and all Pekin Power part products carry an unequivocal 12-months warranty from date of purchase .
The engine are 4-cycle,cooled by fan radiator,adopt shelly fuel filter&oil filter cleaner,dry air cleaner,beautiful appearance,fine quality,reliable capability
Engine Features:
1. World most famous brand diesel engine: UK imported 1000 series engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
Soundproof/Silent Box:
1. Excellent ventilation
2. Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and Safety
6. 1m<80 dB / 7m<70dB
Control Panel:
1. Automatic control panel (AMF), LCD display
2. Four protection systems
3. Emergency stop
Optional:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
TECHNICAL DATA | |
GENSET MODEL |
GNRP50 |
Rated output |
50KW/62.5KVA |
Rated Voltage |
220/380V,230/440V;etc |
Frequency |
50HZ |
DIESEL ENGINE MODEL |
1004TG |
Rated ouput (kw) |
65.7kw |
Governing method |
Electrical/Mechanical |
Oil box volume(L) |
64L |
Bore x Stroke(mm) |
100*127mm |
Apirated |
Natural |
Cooling Starting Method |
Closed water cooled |
ALTERNATOR |
Stamford,LeroySomer, Marathon,Engga |
Rated power |
50 |
Rated frequency |
50HZ |
Rated speed (rpm) |
1500 |
Power factor |
0.8 lagging for 3-phase |
Phase connection |
3-phase |
Winding connection |
4 -wire connected(12-wire for 3-phase) |
Excitation method |
Brushless |
Insulation class |
H |
Voltage regulation |
AVR |
CONTROL PANEL |
V-meter, A-meter, Frequency meter, circuit breaker, transfer switch, temp. and pressure gauges, indicating lamp, hour meter, key starter, etc. |
