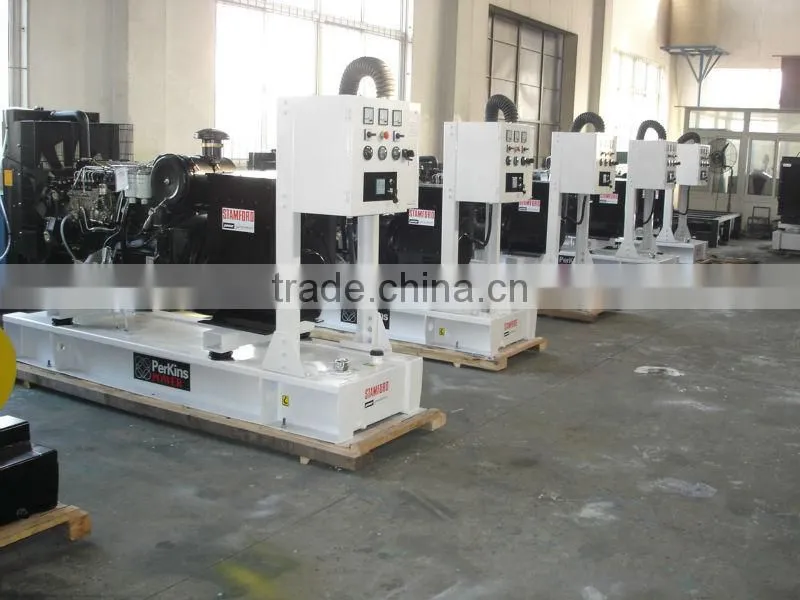

Help Center10KVA(8KW) to 500KVA(400KW) Diesel Engine Power Plant
Related Products
-
30kva to 800kva Electric Startr Diesel Generator SetUS$ 3,650 - 98,500MOQ: 1 Set -
28kva to 850kva UK Made GeneratorUS$ 2,599 - 35,655MOQ: 1 Set
-
UK Engine Diesel GeneratorUS$ 2,595 - 25,869MOQ: 1 Set
-
63kva Diesel Generator Canton FairUS$ 2,589 - 25,955MOQ: 1 Set
-
Best Price Sale 750 Kva Generator With Perkins Diesel EngineUS$ 3,599 - 25,659MOQ: 1 Set
Specifications
-OEM Stamford,Leroy Somer-66dB(A) @ 7m
-Warranty:12 months
-Deepsea controller,
diesel engine power plant
UK generator set specifications:
1) Output range: 8kw (10kVA) up to 400kW (500kVA),
2) Engine model: 1003G,1003TG,1004G,1004TG,1006TG1A,1006TG12A,1006TGA
3) Alternator: Stamford, Leroy Somer, Marathon series
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start

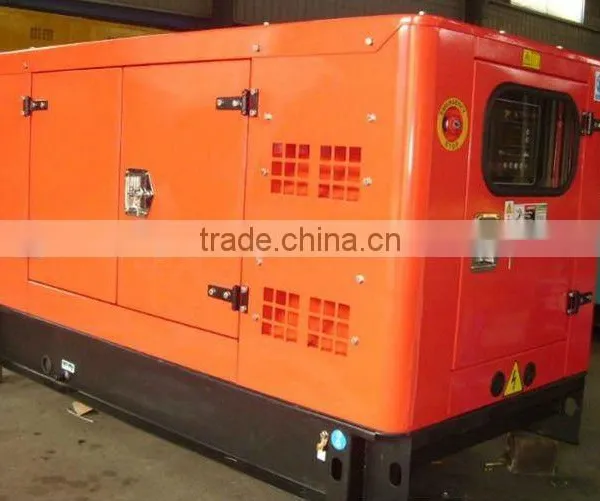

7) Sound-proof / weather-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤±1%
14) Voltage deviation at instantaneous state: ≤+20%
15) Voltage return time: ≤4s
16) Voltage modulation: ≤0.3%
17) Standard configuration of gensets:
a) Engine: Cummins diesel engine
b) Engine type: water-cooled, in line four-stoke, Humit cylinder liner, direct injection
c) Alternator: Marathon brushless alternator
18) Control system:
a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor
for any situation as the start defeat, the water is over temperature, the oil pulls down, over
speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
19) Starting system: DC alternator is used to start engine
20) Short circuit protection: MCCB air switch
21) Cooling system: combined cooling water tank fitted to meet the requirement of radiation at
ambient temperature 40°C
22) Filter system: oil, fuel and air filter
23) Accessories: exhaust elbow, bellow, muffler
24) Supply standard collocation:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) MCCB air conservation switch
j) 12 / 24V starting accumulator and Battery line
k) Set shock absorber
l) High-efficient silencer
