Silent Diesle Power 160kw Engine Generator With Cummins Engine

Silent Diesle Power 160kw Engine Generator With Cummins Engine thumbnail-1
Silent Diesle Power 160kw Engine Generator With Cummins Engine photo-1
US$ 5,000 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GENOR POWER
Model Number:
GNRC
Contact Supplier Request Quote Chat Now
Shenzhen Genor Power Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GENOR POWER
Model Number GNRC
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50Hz or 60Hz
Rated Power 160kw
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 290A

Silent Diesle Power 160kw Engine Generator With Cummins Engine



Our company is an approved OEM partner. So we can provide genuine engine genset with very competitive price and comprehensive technical support.

 Silent Diesle Power 160kw Engine Generator With Cummins Engine



1. Specification of genset
Gensets model GNRC160
Prime power 160KW/200Kva
Rated Voltage 400V
Rated frequency 50HZ
Rated Speed 1500rpm
Power Factor 0.8(lagging)
Genset Weight(kg) 2300kg
Dimensions (L*W*H) 2600*970*1672(mm)
Canopy Dimensions (L*W*H) 4000*1400*2100(mm)
2. Specification of diesel engine
Engine brand
Engine model 6CTAA8.3-G2
Cylinder arrangement 6 in line
Cycle Four stroke
Aspiration Turbocharged and Aftercooled
Bore*Stroke  114*135(mm*mm)
Displacement 8.3L
Max. Standby Power at Rated RPM 203Kw/276HP
Compression Ratio 16.0:1
Speed Governor Electronic
Cooling System Forced Water Cooling Cycle
Exhaust System
Exhaust Gas Flow 29.1m³/min
Exhaust Temperature 545°C
Max Back Pressure 10kPa
Air Intake Sysetem
Max Intake Restriction 6.35Kpa
Burning Capacity 11.2m³/min
Air Flow 300m³/min
Fuel System
100%(Prime Power) Load 205g/kw.h
75%(Prime Power) Load 206g/kw.h
50%(Prime Power) Load 211g/kw.h
Oil System
Total Oil Capacity 24L
Oil Consumption ≤4g/kw.h
Engine Oil Tank Capacity 18.9L
Oil Pressure at Rated RPM 276-414Kpa
Cooling System
Total Coolant Capacity 40L
Thermostat 83-95°C
Max Water Temperature 104°C
3. Specification of alternator
Number of Phase 3
Connecting Type 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class H/H
Telephone Influence Factor (TIF) <50
THF <2%
Voltage Regulation, Steady State <±1%
Alternator Capacity 200Kva
Alternator Efficiencies 86.60%
Air Cooling Flow 0.15m³/s
4. Specification of AMF Control Panel

The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature,
oil pressure. The genset with low oil pressure,high water temperature,over speed,

over load protection function



 Control Panel Features:

Controller Brand: Smartgen, Deepsea,ComAp

Control Panel: English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.

  Silent Diesle Power 160kw Engine Generator With Cummins Engine



Our Advantages:

1. Solve your technical problems in 24 hours and provide international warranty service for engines

2. Design the appearance form according to customers’ request

3. Polyester varnish for appearance protecting for shining and raining

4. Four hours testing before out factory and CCIB Inspection

5. ISO9001 and CE certification



Engine :

Silent Diesle Power 160kw Engine Generator With Cummins Engine

Original stamford alternator and certificate :

Silent Diesle Power 160kw Engine Generator With Cummins Engine



Open type Genset

Silent Diesle Power 160kw Engine Generator With Cummins Engine

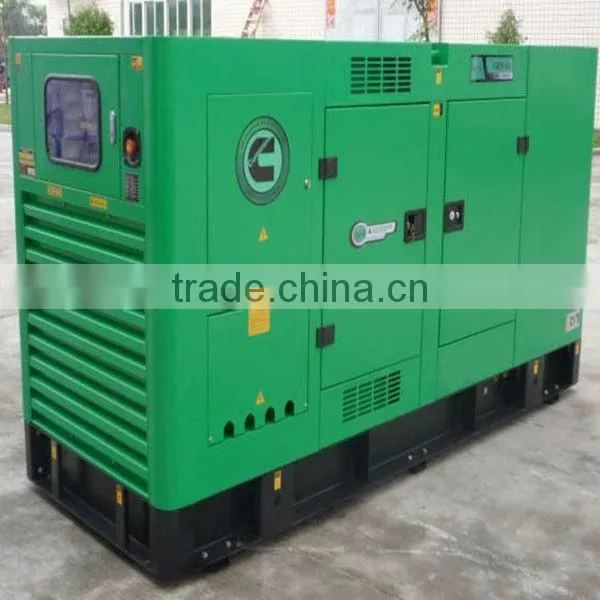

Silent Type Diesel Genset

Silent Diesle Power 160kw Engine Generator With Cummins EngineSilent Diesle Power 160kw Engine Generator With Cummins Engine
