Home > Products > Generator With Cummins engine > China Competitive Price Diesel Power Generator 35 kva

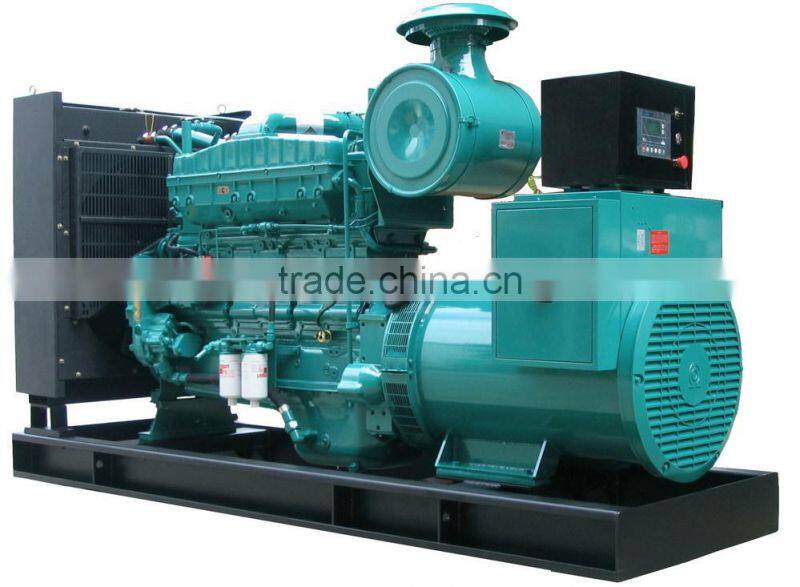

China Competitive Price Diesel Power Generator 35 kva
- 200 Set / Sets per Month
- Shenzhen
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | GENOR POWER | Model Number: | GNRC |
Output Type: | AC Three Phase | Speed: | 1500rpm or 1800rpm | Frequency: | 50Hz or 60Hz |
Rated Power: | 35 kva | Rated Voltage: | 220V/380V, 230V/400V, 240V/415V | Rated Current: | 50A |
Product Description
China Competitive Price Diesel Power Generator 35 kva
35kva generator Model | GNRC35 |
35kva generator Power | 35kva |
35kva generator Brand | USA brand |
with Cummins Engine | |
Prime Power (50HZ) | 30kw/38kva |
Standby Power (50HZ) | 33kw/41KVA |
Power Factor | 0.8 (Lagging) |
Phase Wires | 3-phases 4-Wires |
Start Model | Electric |
Protection | Low oil-pressure, High water temperature,Over-speed, Over-current |
Engine Model | Cummins 4BT3.9-G2 |
Cylinders | 4 |
Cylinder Arrangement | L |
Bore x Stroke(mm) | 102X 120 |
Compression Ratio | 16.5:1 |
Speed | 1500rpm |
Cooling Method | Water – cooled |
Starting Method | 24V DC electrical start |
Full Load Diesel Consumption (L/H) | 9 |
Engine Displacement (L) | 3.9 |
Inspiration (L) | Natural |
Lube Volume (L) | 9.5 |
Coolant Volume (L) | 20 |
Noise (Db) | ≤ 80 |
Alternator Model | PT144H |
Voltage | According to customers choice |
Protection | IP23 |
Voltage Regulation | ±4% |
Insulation Class | H |
Voltage Control | AVR |
Net Weigh (KGS) | 950 |
Dimensions (L x W x H) mm | 2100*1000*1200 |
Optional |
|
| ATS(auto transfer switch) |
| Battery Charger |
| Base Fuel Tank (for open type) |
Control Panel:
1. Automatic control panel , LCD display
2. Four protection systems
3. Emergency stop
Accessories
1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
Engine :
Original stamford alternator and certificate :

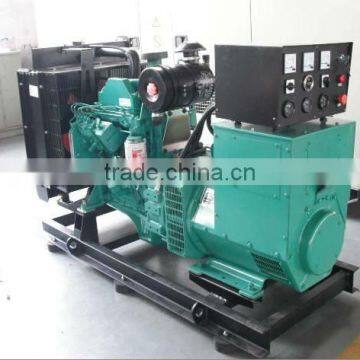

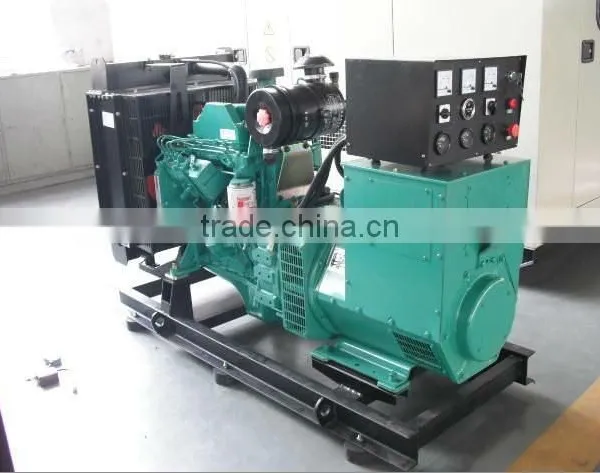

Open type Genset
Silent Type Diesel Genset
