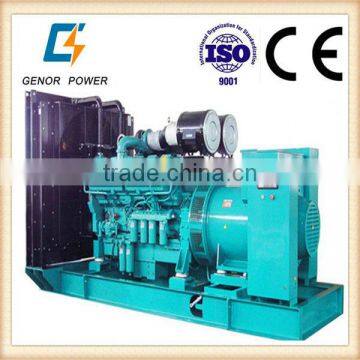

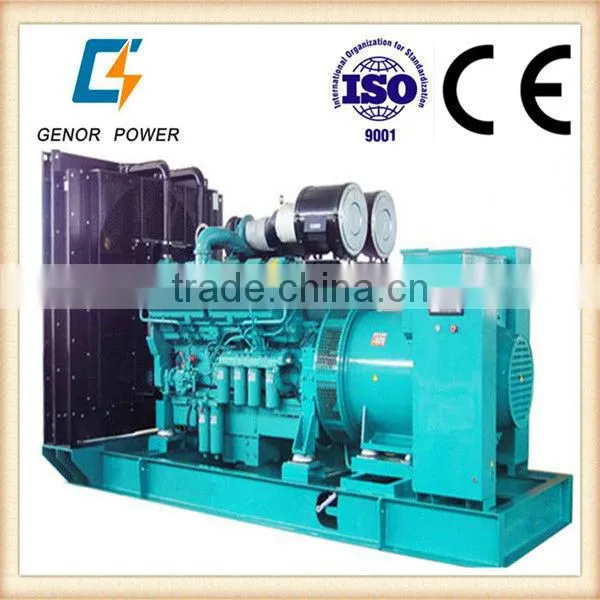

Importer Diesel Engine QST30-G4 Generator Set With Cummins Engine

Generator set

Open type

Silent type

Model

GNRC980

GNRC980S

Engine Model

QST30-G4

Alternator Brand

Engga,Stamford,Marathon

Prime power    (kva/kw)

1114  kva/ 891kw

Standby power ( kva/kw)

1225  kva/980kw

Output voltage

 400/230 or  380/220 v OR 220/127V

Power factor

COSΦ=0.8(lagging)

Phase/wires

3 phase 4 wires

Fuel consumption

 @ 100%prime power

240  L/h @ 100% prime power

Rated speed (r/min.)

1800R.P.M ,60HZ

Dimension(L*W*H)

4100*1750*2300mm

Canopy: 20GP

Weigh (kgs)

8000 kgs

10300 kgs

Noise level (at 7m)

98dba

80dba

Technical parameters of Engine:

 Engine model & Origial

Cummins USA  QST30-G4

Engine power prime

1007  kw

Cylinders

12  V- type,Four-stroke

Bore*stroke(mm)

140 ×165

Compression ratio

14:1

displacement

30.48  L

Aspiration

Turbocharged and Low Temperature Aftercooled

 type of cooling

Close type cooling With fan & radiator

Type of Governor

Electronic speed control (EFI)

Filters system

Easy replacement type ,whole lubricating oil, Fuel filter and air filter, air filter for the paper core type.

Muffler and exhaust pipe

By using of industrial high performance muffler with flexible bellows flexible connected exhaust pipe , the generators can be reduced 15 ~ 20dBA Noise

Start type

24V DC start, start motor comes with built-in battery

Technical parameters of Engine:

Alternator Brand

Engga

Marathon

Stamford

Alternator Model

EG400L-800N

MX-850-4

LVI634E

KW POWER

891  KW,60hz 1800 RPM

excited type

Brushless, self-excited(with auto voltage stability)

Grade for rotor, stator loop.

H GRADE

Protection Grade

IP21/IP22

Power quality

G3 Grade,GB/T2820

Rated Voltage

400/230 or  380/220 v OR 220/127V

The Voltage Fluctuation

≤0.5%

Instantaneous Regulation of Voltage

+20%~-15%
