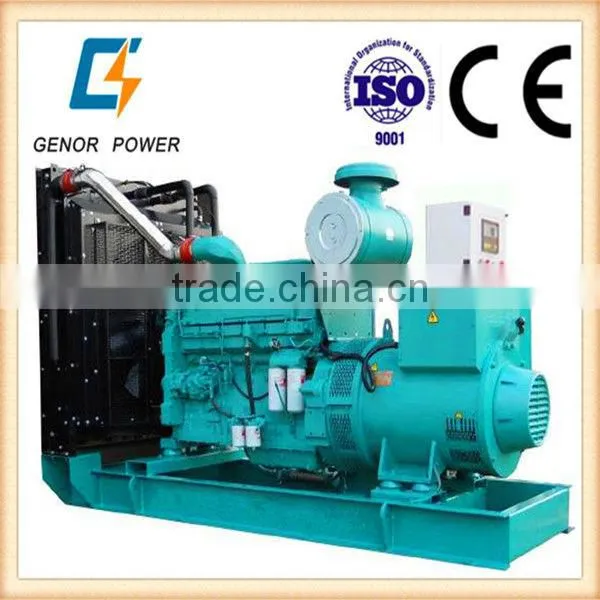

500kva KTA19-G4 Diesel Generator Set With Cummins Engine
Performance Feature
··Built-in damper for anti-vibration.
··World famous brand AC alternator: Stamford, Marathon, Leroy Somer, MVC.
·Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485
·Full range protect function and alarm shutdown feature.
Technical data
Generator set |
Genset Model |
GNRC |
|
Rating Power (KW/KVA) |
400KW/500KVA |
||
Standby Power(KW/KVA) |
440KW/563KVA |
||
Rating Ammeter(A) |
721.6A |
||
Diesel engine |
General data |
Engine model |
KTA19-G4 |
number of Cylinder & Configuration |
6L |
||
Bore X Stroke (mm) |
159X159 |
||
Displacement(l) |
19 |
||
Compression Ratio |
13:9:1 |
||
Governor type |
Electronic |
||
Rated speed (RPM) |
1500 |
||
Exhaust system |
Exhaust gas flow(m³/min) |
1138 |
|
Exhaust gas tempreature(°C) |
538 |
||
Air intake system |
Aspiration Type |
Turbocharged & Intercooled |
|
Fuel system |
Rating Fuel Consumption(L/H) |
100 |
|
Lubrication system |
Total oil capacity(l) |
50 |
|
Cooling system |
Total Coolant capacity(l) |
95 |
|
Starting method |
24V DC electric starting |
||
Alternator |
Alternator model |
Stamford/ ENGGA/ LEROY SOMER |
|
Exciting type |
Brushless self-exciter AVR |
||
Voltage regulation |
±1.0% |
||
No. of Phase |
3 phase 4 wire |
||
Power factor |
0.8 |
||
Enclosure Class |
IP21 |
||
Class of Insulation |
H |
||
Noise |
Within 7 meters db(A) |
≤105 |
|
Dimension |
Generator set dimension (LXWXH) |
3400x1300x2000mm |
|
Weight |
Generator set Net Weight (kg) |
3720Kg |
|
Control system:
1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
Standard Accessory
Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery and connecting wires, Operation manual and document.
Optional Accessory
Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, and Moving Trailer.
Engine :
Original stamford alternator and certificate :
Open type Genset
Silent Type Diesel Genset
