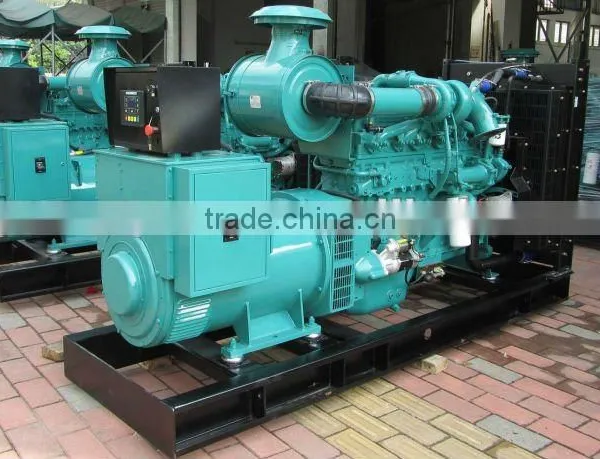

Remote Start 20KW(25KVA)-- 1600KW(2000KVA) Diesel Generator Set

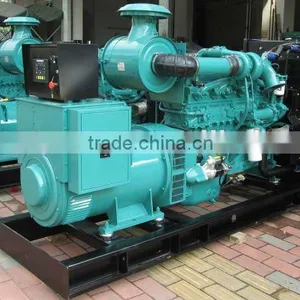

Remote Start 20KW(25KVA)-- 1600KW(2000KVA) Diesel Generator Set thumbnail-1
Remote Start 20KW(25KVA)-- 1600KW(2000KVA) Diesel Generator Set photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GENOR POWER
Model Number:
GNRC
Contact Supplier Request Quote Chat Now
Shenzhen Genor Power Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GENOR POWER
Model Number GNRC
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50Hz or 60Hz
Rated Power 25KV--2000KVA
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 35A-2880A

Remote Start 20KW(25KVA)-- 1600KW(2000KVA) diesel generator set

Remote Start 20KW(25KVA)-- 1600KW(2000KVA) diesel generator set



Parameters:
Genset Model Prime Powe Standby Power Engine Fuel Consumption Cylinder No. Displacement Bore X Stroke
KW KVA KW KVA (g/kwh)  (L ) (mm)
GNRC25 20 25 24 30 4B3.9-G ≤229 4 3.9 102*120
GNRC30 24 30 28 35 4BT3.9-G ≤214 4 3.9 102*120
GNRC50 40 50 45 56 4BTA3.9-G ≤215 4 3.92 102*120
GNRC56 45 56 50 63 4BTA3.9-G ≤215 4 3.92 102*120
 GNRC63 50 63  56  70 6BT5.9G1 ≤215 6 5.88 102*120
GNRC98 78 98 85 106 6BT5.9G ≤215 6 5.88 102*120
GNRC113 90 113 100 125 6BT5.9G2 ≤215 6 5.88 102*120
GNRC130 104 130 120 150 6BT5.9G2 ≤215 6 5.88 102*120
GNRC150 120 150 132 165 6CTA8.3-G2 ≤210 6 8.3 114*135
GNRC175 140 175 160 200 6CTA8.3-G2 ≤210 6 8.3 114*135
GNRC200 160 200 180 225 6CTAA8.3-G2 ≤210 6 8.3 114*135
GNRC250 200 250 220 275 6LTAA8.9-G2 ≤210 6 8.3 114*135
GNRC250 200 250 220 275 MTA11-G2A ≤210 6 10.8 125*147
GNRC313 250 313 275 350 MTAA11-G3 ≤210 6 10.8 125*147
GNRC250 200 250 220 275 NTA855-G1 ≤206 6 14 140*152
GNRC275 220 275 250 313 NTA855-G1A ≤206 6 14 140*152
GNRC313 250 313 275 350 NTA855-G2 ≤207 6 14 140*152
GNRC350 280 350 310 400 NTA855-G4 ≤208 6 14 140*152
GNRC375 300 375 330 413 NTAA855-G7 ≤206 6 14 140*152
GNRC400 320 400 360 450 NTAA855-G7A ≤206 6 14 140*152
GNRC375 300 375 330 413 KTA19-G2 ≤210 6 18.9 159*159
GNRC450 360 450 400 500 KTA19-G3 ≤203 6 18.9 159*159
GNRC1250  1000  1250  1100  1375  KTAA38-G9A  ≤202 12 37.8 159*159
GNRC1250 1000 1250 1100 1375 KTA50-G3  ≤215 16 50.3 159*159
GNRC1375 1100 1375 1310 1650 KTA50-G8  ≤215 16 50.3 159*159
GNRC1500 1200 1500 1340 1675 KTA50-GS8  ≤215 16 50.3 159*159
GNRC1688 1350 1688 1500 1875 QSK60-G3  ≤215 16 60 159*190
GNRC1875 1500 1875 1650 2063 QSK60-G3  ≤215 16 60 159*190
GNRC2000 1600 2000 1800 2250 QSK60G4  ≤215 16 60 159*190



diesel generator set performance:

1) Output power range:25kva-2000kva
2) Control Panel , Automatical control,
 Optional with Deepsea (option) brand control panel;
3) Protection provided for short, over-current, over-speed, high water
temperature and low oil pressure;
4) Standard parts: industrial type muffler, exhaust pipes, flexible exhaust
bellows, vibration-damping devices, lead-acid batteries, connective cables, user
manual and technical papers
5) Small volume, light weight, low noise, low fuel consumption, water-cooling
with water tank and fan
6) Soundproof / weatherproof canopy optional



Alternator:
a) Brushless, self-excited, 4-pole, single bearing
b) AVR self-regulated, voltage regulation rate ≤± 1%
c) IP21-IP23 protection grade
d) Class H insulation
e) Radio interference restraining accords with stipulation of VDE0875-N and ISO8528
f) Alternator brand:Engga, Marathon; Stamford etc;

 Remote Start 20KW(25KVA)-- 1600KW(2000KVA) diesel generator set

Electrical Parameters:
1) Mode of connection: 3 phase 4 line
2 Rated power factor: 0.8 (lagging)
3) Wave distortion: below 10%
4) Power supply voltage: 24V
5) Volt fluctuation: below 0.5%
6) Voltage / frequency fluctuation: ≤0.5
