Specifications
50kw permanent magnet generator-OEM Daewoo
-Increase efficiency 15%
-8 hours operation base tank
-Warranty:1 year

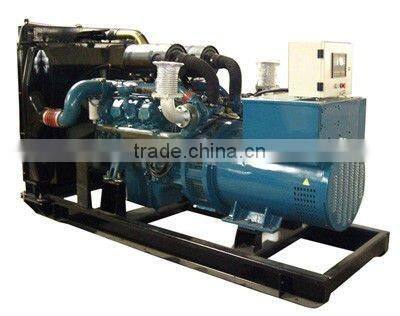

50kw Permanent Magnet Generator
Our company is an approved Doosan OEM partner. So we can provide Permanent Magnet Generator
with very competitive price and comprehensive technical support.
Genset Model | GNR50 |
Prime Power(kw/kva) | 50/63 |
Standby Power(kw/kva) | 55/69 |
Rated Current(A) | 90 |
Rated Speed(rpm) | 1500 |
Rated Frequency(Hz) | 50 |
Rated Voltage(V) | 220V/380V, 230V/400V, 240V/415V |
Phase Number | 3 phase 4 line |
Power Factor | 0.8(Laging) |
Voltage Regulation | AVR |
Genset Structure | Open Type |
Noise Decibel(dB(A)) | 93.7 |
Engine data | |
Engine Brand | DOOSAN |
Engine Model | DB58 |
Fuel consumption(L/h) | 12.9 |
Cylinder Number | 6L |
Bore * Stroke(mm*mm) | 102*118 |
Displacement(L) | 5.8 |
Exhaust Temp(°C) | 470 |
Lub. Capacity(L) | 19 |
Coolant Capacity(L) | 36 |
Starting Voltage(V) | 24 |
Governor | Electronic |
Base Fuel Tank | 8 hour |
Alternator Features:
1. World famous brand AC alternator: Stamford, Leroy Somer, Marathon, Engga
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
Soundproof/Canopy:
1. Excellent ventilation
2. Base Fuel Tank on base frame for 8 Hours working
3. Highly Corrosion Resistant construction
4. New design according to customers' request.
5. Sprayed outdoor powder.
6. 1m<85dBA / 7m<75dBA
7. Super Silent 1m<65dBA
Controller:
1. Optional Brand: Smartgen, Deepsea,ComAp ,
2. Automatic control panel, LCD display
3. Four protection systems
4. Emergency stop
Optional:
1. Trailer type, Silent Type, Open Type, Container, Automobile
2. ATS (automatic transfer switch)
3. Parallel system
4. Remote system
