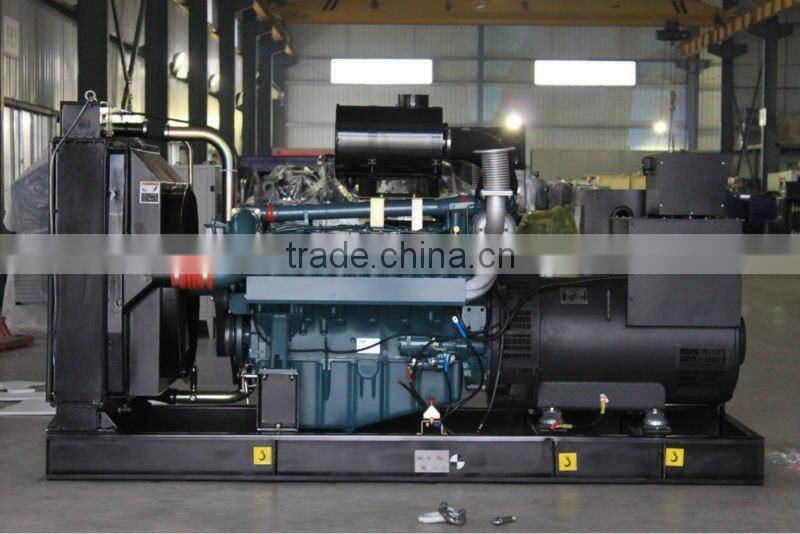

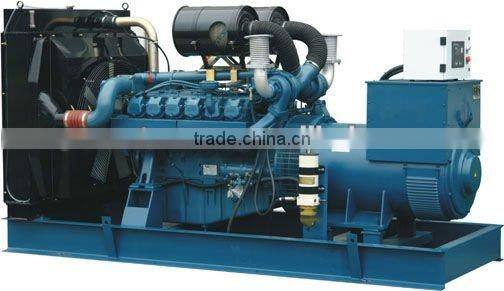

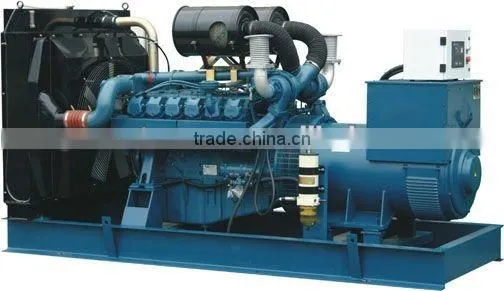

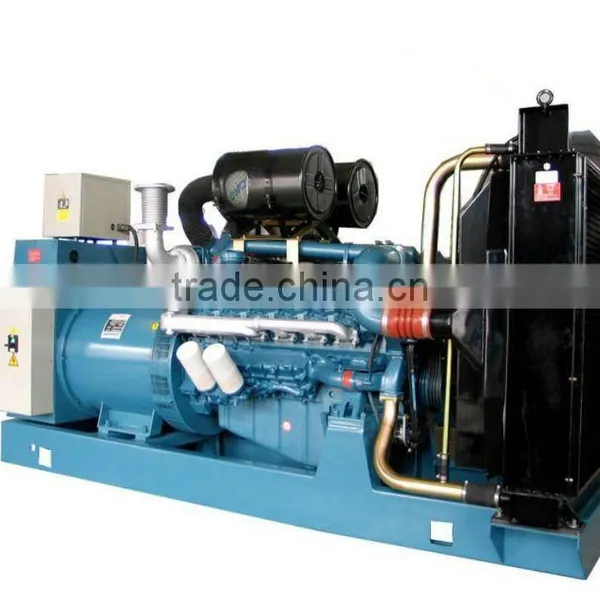

Low Price ! Used Diesel Generator 50hz

Shenzhen Genor Power Equipment Co., Ltd.
Low Price ! Used Diesel Generator 50hz thumbnail-1
Low Price ! Used Diesel Generator 50hz photo-1
US$ 8,888 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DOOSAN
Model Number:
GNRDS
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name DOOSAN
Model Number GNRDS
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50Hz or 60Hz
Rated Power 62.5KVA to 625KVA
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 90A to 900A

Specifications

Used Diesel Generator 50hz
-OEM DOOSAN
-Increase efficiency 15%
-10 hours operation base tank

   Low Price ! Used Diesel Generator 50HZ



The Doosan series diesel generator sets which pushed out by Daewoo Heavy Industry from South Korea, they are widely used in national defence, aeronautics & space industry etc with the advantages of Small volume, less noise, economic as well as reliable performance.

  Technical parameters of diesel generator sets:

Genset ModelPrime PowerStandby PowerEngineFuel ConsumptionCylinder No.DisplacementBore X Stroke
KWKVAKWKVA(g/kwh) (L )(mm)
GNR70DS5062.55570DB58≤21668102*118
GNR94DS72908094D1146≤21668111*139
GNR138DS100125110138D1146T≤21668111*139
GNR200DS140175160200D086TI-1≤21668111*139
GNR225DS160200180225P086TI≤21668111*139
GNR275DS200250220275P126T1≤21688123*155
GNR310DS220275250310P126TI≤216611123*155
GNR350DS250310280350P126T11≤2156L11128*142
GNR413DS300375330413P158LE-1≤213V814.6128*142
GNR450DS320410360450P158LE≤212V814.6128*142
GNR500DS360450400500P158LE≤212V1018.3128*142
GNR550DS400500440550P180LE≤212V1018.3128*142
GNR625DS450560500625P222LE-I≤211V1221.9128*142
GNR700DS500625560700P222LE-S≤211V1221.9128*142





General Technical Data

1. Engine: Doosan

2. Alternator: Genuine Leroy Somer, Stamford, Marathon, or Hopow alternator

3. Output range:62.5kva to  625kva

4. Frequency: 50 & 60Hz

5. Speed: 1500 or 1800rpm

6. Phase: 3 Phase 4 Wire & 1 Phase 2 Wire

7. Voltage: 220/380V, 230/400V, 240/415V, etc

8. Automatic digital control panel, auto start with AMF function



Genset Features:

1. Genuine Doosan industrial diesel engine

2. Radiator 40°C max,belt, with safety guard

3. Genuine Leroy Somer, Stamford, Marathon, or ENGGA alternator

4. Choice of manual/auto and AMF control panels and protection systems

5. Digital auto-start panel

6. Anti Vibration Suspension Absorber

7. Dry type air filter, fuel filter, oil filter

8. 10-hour operation base tank

9. Mould case circuit breaker

10. 24V DC start motor and storage battery

11. 24V charge alternator

12. 24V batteries, rack and cable

13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler

14. Comply with ISO and CE standards.

15. All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)



Optional Accessories of  Diesel generator set

1. ATS:Automatic Transfer switch, which can start the diesel generator when the main power is off; when the main power comes back,

it will shut down generator.  And ATS have the function of AMF (automatic Main power failure)

2. MCCB (molded case circuit breaker), which can protect the loading machine and the diesel generator.

3. Battery charger (float charger): when you haven’t used the generator for a long time, the batteries will be no power, in that way, you can’t start the generator.

If you have battery charger, you can charge the batteries by the charger from main power.

4. Base fuel tank; daily fuel tank;

5. Paralleling system; This system can make several generators work together and automatically distribute the load according to set.

6. Remote Control Panel; we can control the generator by computer, if we use a RS484 or RS232 digital cable to connect the generator to our computer.

7. Water separate;If the ambient temperature is too high, it will be harmful to our the diesel generator. Fan and water cooling is not enough for radiate.

If we use water separate system, the life of generator will be much longer.



Low Price ! Used Diesel Generator 50hzLow Price ! Used Diesel Generator 50hzLow Price ! Used Diesel Generator 50hzLow Price ! Used Diesel Generator 50hz
