50KW - 500KW Doosan Silent Diesel Generator Set With ATS

Specifications

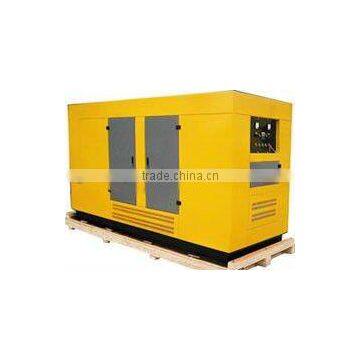

Doosan Silent Diesel Generator Set
1.Doosan Engine & Stamford
2.AC 3 Phase
3.Smartgen Controller
4.Noise Level:70dB at 7m

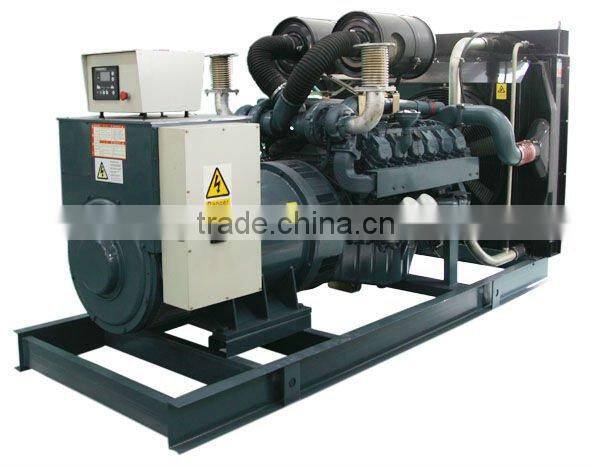

50KW - 500KW Doosan Silent Diesel Generator Set With ATS



The Doosan series diesel generator sets which pushed out by Daewoo Heavy Industry from South Korea, they are widely used in national defence, aeronautics & space industry etc with the advantages of Small volume, less noise, economic as well as reliable performance.







Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
	KW	KVA	KW	KVA		(g/kwh)		(L )	(mm)
GNR94DS	72	90	80	94	D1146	≤216	6	8	111*139
GNR138DS	100	125	110	138	D1146T	≤216	6	8	111*139
GNR200DS	140	175	160	200	D086TI-1	≤216	6	8	111*139
GNR225DS	160	200	180	225	P086TI	≤216	6	8	111*139
GNR275DS	200	250	220	275	P126T1	≤216	8	8	123*155
GNR310DS	220	275	250	310	P126TI	≤216	6	11	123*155
GNR350DS	250	310	280	350	P126T11	≤215	6L	11	128*142
GNR413DS	300	375	330	413	P158LE-1	≤213	V8	14.6	128*142
GNR450DS	320	410	360	450	P158LE	≤212	V8	14.6	128*142
GNR500DS	360	450	400	500	P158LE	≤212	V10	18.3	128*142
GNR550DS	400	500	440	550	P180LE	≤212	V10	18.3	128*142
GNR625DS	450	560	500	625	P222LE-I	≤211	V12	21.9	128*142
GNR700DS	500	625	560	700	P222LE-S	≤211	V12	21.9	128*142



 Engine: DOOSAN diesel engine

Rated voltage:  220V/380V, 230V/400V, 240V/415V

Cooling method: closed water cooling

Starting method: electric start

Noise level:   68dB at 7m away



Alternator:

Brand: Stamford,LeroySomer, Marathon,Engga

Rated output: 50KW(62.5KVA) - 500KW(625KVA)

Rated voltage: 400/230V

Rated frequency: 50/60Hz

Phase: 3-phase, 4-wire

Rated speed: 1,500rpm/1,800rpm

Excitation: harmonic excitation or phase compound or brushless

Voltage regulation: automatic

1.0% voltage regulation (maximum) in static conditions

Protection class:  IP21-23



Control panel

The generator control panel is manufactured locally

Standard engine instrumentation

Voltmeter with selector switch

Ammeter with selector switch

Frequency meter

Current transformers

With AMF control panel or with ATS (automatic transfer system)



Accessories

1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.

2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.



Warranty policy

Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets
