Specifications

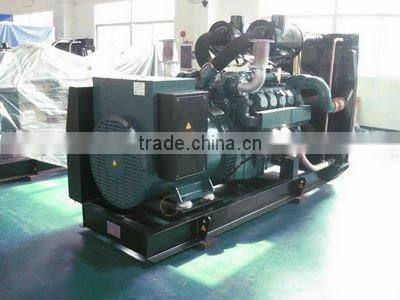

Doosan Diesel Generator-OEM Daewoo
-Increase efficiency 15%
-10 hours operation base tank
-Warranty:1 year
The Doosan series diesel generator sets which pushed out by Daewoo Heavy Industry from South Korea, they are widely used in national defence, aeronautics & space industry etc with the advantages of Small volume, less noise, economic as well as reliable performance
1. Characteristic & specification of Diesel power generation
Electric specification of power Generation
Voltage Regulation (%): Steady state≤±1 Transient state-15~ +20
Frequency Regulation (%): Steady state≤±1 Transient state-7~ +10
Voltage Fluctuation ratio (%): ≤0.5
Frequency Fluctuation ratio (%): ≤0.5
Voltage stabilization time (When the load changes suddenly): ≤1S
Frequency stabilization time (When the load changes suddenly): ≤3S
Waveform Distortion (%): ≤5
Structure of power Generation

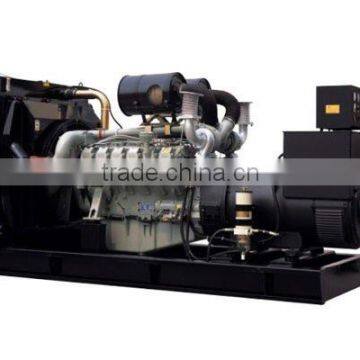

The power generation have an integrative structure. The engine & Alternator - Block with fan radiator are mounted on a standard welded channel base frame which is made of high strength steel, add incabloc at the base of engine and alternator. Cooling fan and battery charge machine are protected by canopy.
------------------------------------------------------------------------------------------
DIESEL ENGINE- Doosan Daewoo
Brand name: Doosan Daewoo (Korea)
Model: P126-TI
Cylinder NO / Arrangement: 6/L
Cooling system: Water cooling radiator with fan
Speed: 1500RPM
Spray style of fuel pump: Direct injection
Filter system: Use the unitary replaceable lubrication oil filter, fuel filter and air filter
Exhaust system: Use the industrial noise reduction silencer and bellow with flexible connection parts.
Startup mode: 24V DC Startup
Speed controller: Electronic speed controller
Fuel consumption: 204.9 glkw.h
Fuel type: NO.0 (Made in China)(Under normal term.)
-------------------------------------------------------------------------------------------
ALTERNATOR
Brand name: Stamford
MODEL: HCI444D1
Characteristics: Brushless & self-excited Alternator,automatism voltage regulation ,automatism heat driving off,single bearing generator
Voltage: 400V/230V
Power factor: 0.8(lag)
Phase NO & connection: 3 phase 4 wires ,style Y
Insulation rank: H
Protection rate: IP21(orIP23)
Control System: CP620 (ComAp MRS10 Auto Start Control Panel)
--------------------------------------------------------------------------
Optional choice: Different types power generation:
- Soundproof, weatherproof, automobile, trailer etc;
- Control box: Manual control box, Automatic control box, Remote control box, ATS control box, Parallel or synchronous control box for your choices;
- Frenquency: 50HZ , 60HZ
- Voltage: 110V~13.8KV
- Prime use or Standby use or Continuous use
--------------------------------------------------------------------------------
II. Quality guarantee: Certification of ISO9001: 2000
---------------------------------------------------------------------------------
Note:
1. The above data is only for the customers reference.
2. Those above data are for 50Hz, 1500 rpm, 400V/230V, 3 phase 4 wires. Please
contact with us if you need 60Hz specification Or else.
3. We reserve the rights to amend the technical specification here without prior notice
