High Quality ! Germany D226B-3D Deutz Genset

High Quality ! Germany D226B-3D Deutz Genset thumbnail-1
High Quality ! Germany D226B-3D Deutz Genset photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Deutz
Model Number:
GNRD
Contact Supplier Request Quote Chat Now
Shenzhen Genor Power Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Deutz
Model Number GNRD
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50Hz or 60Hz
Rated Power 15KVA to 1000KVA
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 10A to 1440A

Specifications

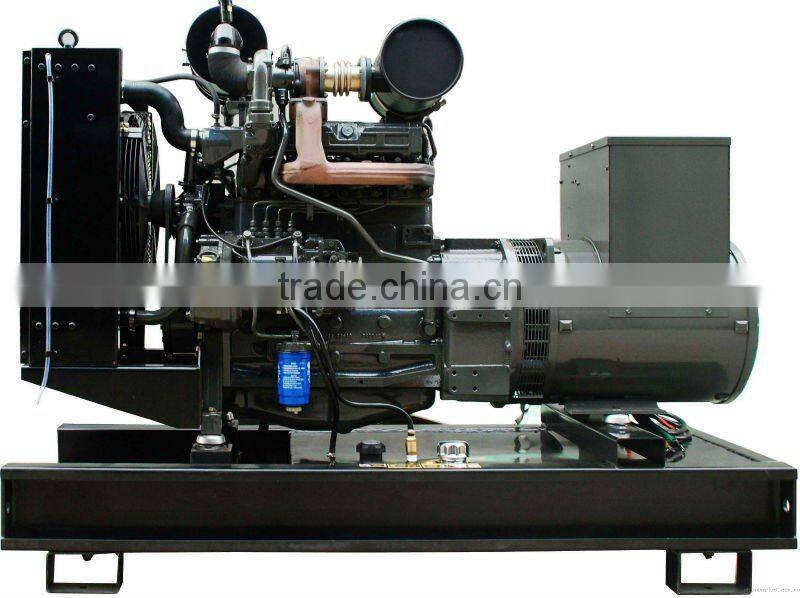

Germany D226B-3D Deutz Genset
1.Deutz Engine :D226B-3D
2.Stamford Alternator
3.low fuel consumption
4.high reliability

   High Quality !   Germany D226B-3D Deutz Genset



Genor Power Deutz series diesel generator setd adopt DEUTZ 226B series low power diesel engine made by Sino-Germany Joint-Venture Company in China.The DEUTZ engines are 4-cycle,water cooled, 24DVC working voltage for conrol system,adopt circumvolve fuel fiter&oil filter cleaner, Dry air cleaner,compact structure,fine quality,reliable capability







Genset ModelPrime PowerStandby PowerEngineFuel ConsumptionCylinder No.DisplacementBore X Stroke
KWKVAKWKVA(g/kwh) (L )(mm)
GNRD18A12151418F2L912≤23821.88100*120
GNRD37A28353037F3L912≤23232.82100*120
GNRD41A31393341F3L913≤22833100*125
GNRD52A38474252F4L912T≤22843.77102*125
GNRD55A40504455F4L913≤22844.08100*120
GNRD65A48605265F4L912T≤22844.08102*125
GNRD75DA50626075BF4L912≤22144.08102*125
GNRD77A55696277F6L912≤22865.65100*120
GNRD85A64806885F6L913≤22866.12102*125
GNRD96A72907796F6L912T≤22866.12100*120
GNRD102A789782102BF6L913≤22866.12102*125
GNRD144A105131115144BF6L913C≤22866.12102*125
GNRD5037464050D226B-3D≤21533105*120
GNRD7051645670TD226B-3D≤21533105*120
GNRD9569867695TD226B-4D≤21544105*120
GNRD150100125120150TD226B-6D≤21566105*120
GNRD185135169148185TBD226B6D≤21566105*120
GNRD200150188165200TBD234V6≤210V610.8128*140











Genset Features:



1. Genuine Detuz diesel engine



2. Radiator 40°C max,fans are driven by belt, with safety guard



3. Original Leroy Somer, Stamford, Marathon, or ENGGA alternator



4. Choice of manual/auto and AMF control panels and protection systems



5. Digital auto-start panel



6. Anti Vibration Suspension Absorber



7. Dry type air filter, fuel filter, oil filter



8. 10-hour operation base tank



9. Mould case circuit breaker



10. 24V DC start motor and storage battery



11. 24V charge alternator



12. 24V batteries, rack and cable



13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler



14. Comply with ISO and CE standards.



15. All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)



General Technical Data



1. Frequency: 50 & 60Hz



2. Phase: 3 Phase 4 Wire & 1 Phase 2 Wire



3. Voltage: 120/207V,127/220V,220/380V, 230/400V, 240/415V, etc



4. Small volume, light weight, low noise, low fuel consumption, water cooling with water tank



5. Monitoring meters and control switches



6. Protection provided for short, over-current, over-speed, high water temperature and low oil pressure



Control Panel:



1. Automatic control panel (AMF), LCD display



2. Four protection systems



3. Emergency stop





Optional:



1. Trailer type



2. Soundproof / open type



3. ATS(automatic transfer switch)



High Quality ! Germany D226B-3D Deutz Genset
