Specifications
50kva Deutz Diesel Generator Set1.OEM Deutz & Stamford alternator
2.Water cooled
3.low fuel consumption
4.CE & ISO 9001

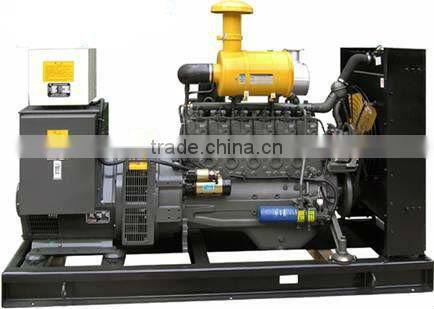

AC Three Phase Prime 50kva Deutz Diesel Generator Set With ATS
Genor Power Deutz series diesel generator setd adopt DEUTZ 226B series low power diesel engine made by Sino-Germany Joint-Venture Company in China.The DEUTZ engines are 4-cycle,water cooled, 24DVC working voltage for conrol system,adopt circumvolve fuel fiter&oil filter cleaner, Dry air cleaner,compact structure,fine quality,reliable capability
Genset Data:
Genset Model | GNRD50 |
Rated Output | 40Kw/50Kva |
Standby Output | 44Kw/55Kva |
Voltage | 220/230/240/380/400/440V |
Frequency | 50Hz/60Hz |
Speed | 1500/1800rpm |
Type | 3 phase 4 wire |
Protect Class | IP23 |
Starting System | Electric Starting |
Engine:
Diesel Engine Model | TD226B-3D |
Engine speed | 1500rpm |
Prime Power | 45Kw |
Standby Power | 49.5Kw |
Air intake way | Turbocharged |
Cylinder No. | 3 |
Bore*Stroke | 105*120mm |
Displacement | 3.12L |
Governor | Mechanical |
Fuel Consumption | 208g/kw.h |
Cooling way | Water-cooled |
Starting System | Electric Starting |
Genset Features:
1. Genuine Detuz diesel engine
2. Radiator 40°C max,fans are driven by belt, with safety guard
3. Original Leroy Somer, Stamford, Marathon, or ENGGA alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank
9. Mould case circuit breaker
10. 24V DC start motor and storage battery
11. 24V charge alternator
12. 24V batteries, rack and cable
13. Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
14. Comply with ISO and CE standards.
15. All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
General Technical Data
1. Frequency: 50 & 60Hz
2. Phase: 3 Phase 4 Wire & 1 Phase 2 Wire
3. Voltage: 120/207V,127/220V,220/380V, 230/400V, 240/415V, etc
4. Small volume, light weight, low noise, low fuel consumption, water cooling with water tank
5. Monitoring meters and control switches
6. Protection provided for short, over-current, over-speed, high water temperature and low oil pressure
Control Panel:
1. Automatic control panel (AMF), LCD display
2. Four protection systems
3. Emergency stop
Open Type Deutz Generator
Silent Type Genset
