Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > China Weifang Silent 20kw Weichai Generator Set With ATS

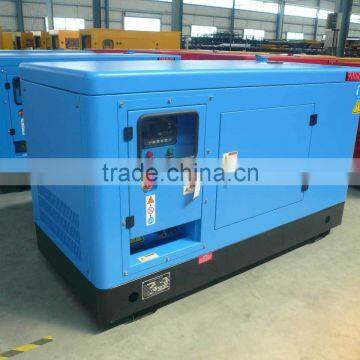

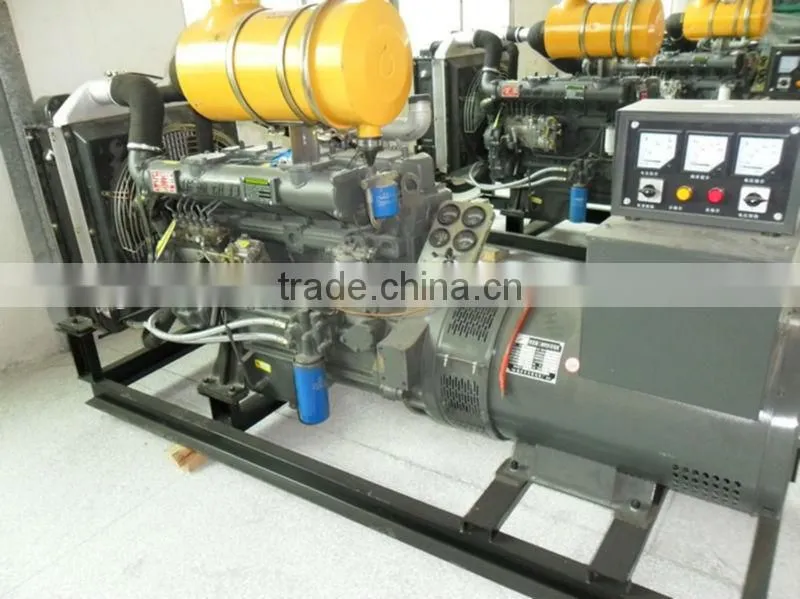

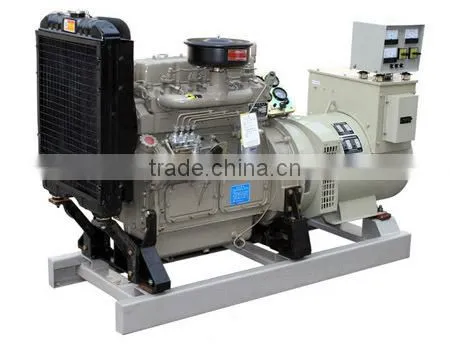

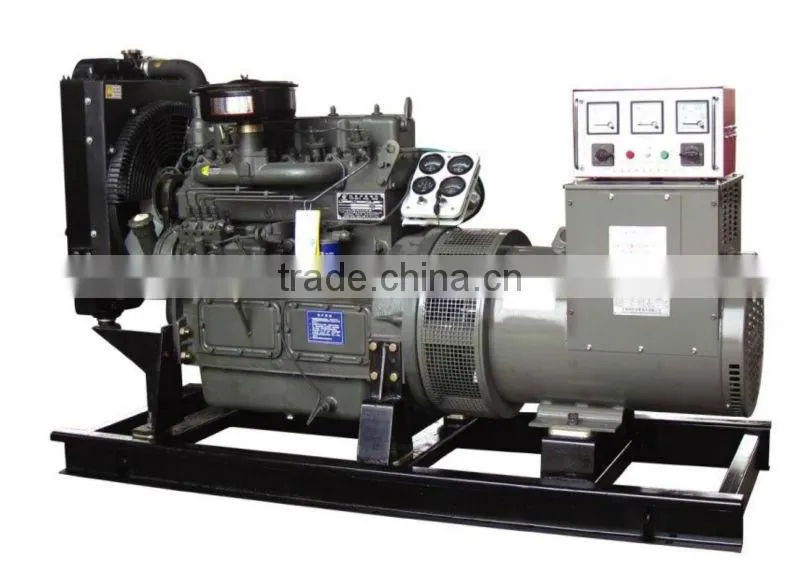

China Weifang Silent 20kw Weichai Generator Set With ATS

Name: China Weifang Silent 20kw Weichai Generator Set With ATS
Brand: China weichai
SKU: 140637668
Availability: InStock

China Weifang Silent 20kw Weichai Generator Set With ATS thumbnail-1

China Weifang Silent 20kw Weichai Generator Set With ATS photo-1

US$ 2,415 - 3,649 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

China weichai

Model Number:

GNRW

Contact Supplier Request Quote Chat Now

Shenzhen Genor Power Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name China weichai

Model Number GNRW

Output Type AC Three Phase

Speed 1500rpm or 1800rpm

Frequency 50Hz or 60Hz

Rated Power 20kw to 150kw

Rated Voltage 220V/380V, 230V/400V, 240V/415V

Rated Current 36A to 270A

Specifications

20kw Weichai Generator Set
1 Weichai Diesel Engine
2.Copy Brushless Stamford
3.One year warranty
4.ISO9001

China Weifang Silent 20kw Weichai Generator Set With ATS

Weichai series small power diesel generator has four stroke, direct inject with small volume and large power station. The generator adopt STC or Brushless series, which has third-harmonic, self-excited and constant voltage. It can bitterly stimnated the generator with nice outline and the reliable performance. This kind of product is suitable for the customer who likes good quality but cheap price. But we can also couple LEROY SOMER generator to meet the customers requirement as their better options. About listed generating sets are all 50HZ, rated voltage is 400/230V, power factor is 0.8 lag, and the connecting is 3 phase & 4 wires. 60HZ generating sets can be supplied according to the customers requirements.

Genset Model	Prime Powe		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
Genset Model	KW	KVA	KW	KVA	Engine	(g/kwh)	Cylinder No.	(L )	(mm)
GNRW-28	20	25	22	28	K4100D	236	4	3.6	100*115
GNRW-34	24	30	27	34	K4100D	236	4	3.6	100*115
GNRW-41	30	38	33	41	K4100D	236	4	3.6	100*115
GNRW-55	40	50	44	55	K4100ZD	238	4	3.6	100*115
GNRW-69	50	63	55	69	R4105ZD	238	4	4.3	105*115
GNRW-104	75	94	83	104	R6105ZD	238	6	6.5	105*115
GNRW-125	90	113	100	125	R6105ZLD	238	6	6.5	105*115
GNRW-138	100	125	110	138	R6105AZLD	238	6	6.7	105*115
GNRW-165	120	150	132	165	R6105IZLD	238	6	6.7	105*115
GMRW-206	150	188	165	206	6113AZLD	238	6	7.5	113*115

Alternator Specification

Alternator Brand	Stamford,Engga,Mecc-alte,Marathon ...
Exciter Type	Brushless, Self-excited
Rated Speed	1500/1800rpm
Rated Frequency	50/60hz
Phase	three or single
Rated Voltage	400V (Available with customer requirements)
Power	0.8
Voltage Adjust Range	≥5%
Protection Grade	IP22
Insulation Grade	H

Digital Control Panel

Controller Brand: Smartgen, Deepsea,ComAp

Control Panel: English interface,LED screen nd touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown

Optional:

1. Trailer type

2. Soundproof / water proof

3. ATS (automatic transfer switch)

4. Parallel system

5. Remote system

Accessories

1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.

2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.

Our Factory
