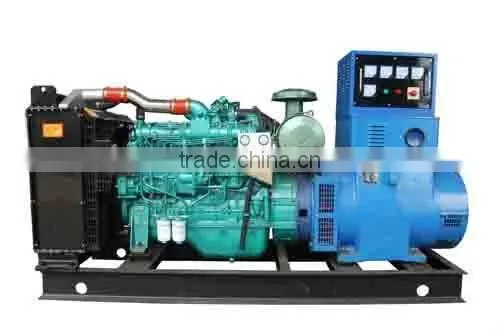

China yuchai diesel engine electric generator 350kva
YUchai the full range of products with high power ,torque,high reliability,low fuel consumption,low emission ,low noise ,adaptation sex strong characteristic .
| Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
| KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
| GNR-23YC | 16 | 20 | 18 | 23 | YC2108D | ≤235 | 2 | 2.199 | 108*120 |
| GNR-34YC | 24 | 30 | 27 | 34 | YC2115D | ≤235 | 2 | 2.493 | 115*120 |
| GNR-55YC | 40 | 50 | 44 | 55 | YC4108D | ≤199 | 4 | 4.21 | 108*115 |
| GNR-63YC | 45 | 56 | 50 | 63 | YC4D70Z-D20 | ≤197 | 4 | 4.214 | 108*115 |
| GNR-69YC | 50 | 63 | 55 | 69 | YC4D75Z-D20 | ≤199 | 6 | 6.494 | 105*125 |
| GNR-88YC | 64 | 80 | 70 | 88 | YC6108D | ≤199 | 6 | 6.871 | 108*125 |
| GNR-104YC | 75 | 94 | 83 | 104 | YC6108ZD | ≤197 | 6 | 6.871 | 108*125 |
| GNR-125YC | 90 | 113 | 100 | 125 | YC6108ZLD | ≤195 | 6 | 6.871 | 108*125 |
| GNR-138YC | 100 | 125 | 110 | 138 | YC6B150D | ≤195 | 6 | 6.871 | 108*125 |
| GNR-165YC | 120 | 150 | 132 | 165 | YC6A190D | ≤195 | 6 | 7.252 | 108*132 |
| GNR-206YC | 150 | 188 | 165 | 206 | YC6112ZLD | ≤195 | 6 | 7.8 | 112*132 |
| GNR-275YC | 200 | 250 | 220 | 275 | YC6M320L-D20 | ≤189 | 6 | 9.84 | 120*145 |
| GNR-481YC | 350 | 438 | 385 | 481 | YCT550L-D20 | ≤192 | 6 | 15.6 | 140*155 |
| GNR-550YC | 400 | 500 | 440 | 550 | YC6T600L-D20 | ≤194 | 6 | 16.35 | 145*165 |
The specification of engine:
1) engine model: china yuchai
2) engine part :water tower,fan,fuel tank
3) governor system:electrical or mechanical governor
4) aspiration mode:natural, turbocharged
5) start method: 12V/24V DC electric starting
6) low fuel cnsumption,low noise,small volume,light weight
7)3 filter( air cleaner,fuel cleaner,oil cleaner),quality certification, Garantiekarte, using instructions
The specification of alternator:
1)alternator model: stamford, Leroy, Marathon.Engga
2)regulator: AVR automatic voltage regulating
3)insulation degree: H degree
4)power factor:3 phase 4 wire
5)Motor: bronze brushless
6) IP21-23 enclosure
Control System
Manual/Automatic start & stop controller
Various Monitor Meter and Optional Switch
Remote control interface and Remote monitor/Remote Sense/Remote Meter (Optional)
MCCB for Short circuit & Overload (optional)
High water temperature alarm, Low oil pressure alarm, over speed alarm and other kind of alarm
Accessories
1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
