Product Details
Place of Origin: | Shandong, China | Brand Name: | JDHB | Model Number: | 5090/6090/7090 |
Product Description
2017 new model evaporative cooling pad for poultry farm
Technical parameter
Thickness | Wind speed | 0.60 | 0.80 | 1.00 | 1.20 | 1.40 | 1.60 | 1.80 | 2.00 |
100mm | Pressure drop | 7.0 | 8.0 | 11.0 | 16.0 | 20.0 | 24.0 | 28.0 | 35.0 |
Efficiency | 82.0 | 80.0 | 78.3 | 76.5 | 74.9 | 73.3 | 72.0 | 70.8 | |
150mm | Pressure drop | 10.0 | 13.0 | 18.0 | 23.0 | 30.0 | 38.0 | 45.0 | 54.4 |
Efficiency | 92.5 | 91.3 | 90.0 | 88.7 | 87.5 | 86.5 | 85.4 | 84.5 |
7090 | 7060 | 5090 | |
H*(height)mm | 1500/1800/2000 | 1500/1800/2000 | 1500/1800/2000 |
L*(length)mm | 600/300 | 600/300 | 600/300 |
D(thickness)mm | 100/150/200/300 | 100/150/200/300 | 100/150/200/300 |
α | 45° | 15° | 45° |
β | 45° | 45° | 45° |
Hp mm | 7 | 7 | 5 |
Jindun’s evaporative cooling pad is used in systems where high efficiency cooling is required. It can be used for many different cooling purposes but is particularly suitable for cooling of livestock buildings and greenhouses when higher air velocity is required.

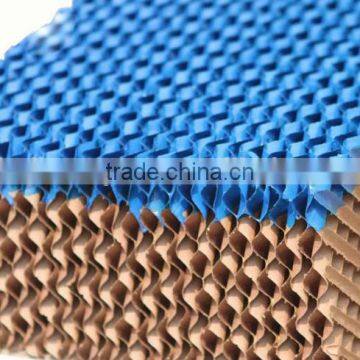

The evaporative cooling pad consists of specially impregnated and corrugated cellulose paper sheets with different flute angles, that have been bonded together. This unique design yields a cooling pad with high evaporation efficiency while still operating at a very low pressure drop.
The water flows down the corrugated surface of the evaporative cooling pad. Part of the water is evaporated by the warm and dry air that passes through the pad. The rest of the water assists in washing the pad, and is drained back to the pump station through a gutter system.
The heat that is needed for the evaporation is taken from the air itself. The air that leaves the pad is therefore cooled and humidified simultaneously without any external energy supply for the evaporation process. This is nature’s own cooling process.
Shandong JINDUNEnergy Conservation & Environmental Protection Equipment Co., Ltd., located in Dongxia industry estate of Qingzhou city, with 20,000m2area, is a professional manufacturer of temperature control equipment for agriculturial and industrial ventilation, cooling or heating system, such as exhaust fan, cooling pad, air condition generator and boiler.
Since 2005, as the market leader in manufacturer exhaust fan, evaporative cooling pad, air condition generator, hot air stoven and hot water boiler, we provide not only high quality goods but also more additional benefits for our clients and partners.
With advanced production equipment, superb manufacturing process, strict management and with good quality product, we have gotten the certificate of ISO9001 and CE
Under our business ideas "Mutual benefit is based on sincerity ", our goods are sold better and better. Now we are exporting more than 100 countries and areas all over the world. Our annual output is more than 20 million US DOLLAR.
Facing the market, our company will rely on a strong unity, forge ahead with determination and a leadership and workforce to meet the challenge, in fierce competition in the market ahead waves.
JINDUN will be your best business partner.
