Home > Agriculture & Food > Protected Animal Husbandry > Beekeeping Equipment > YDZ-50 50L Self-pressurized Liqud Nitrogen Storage Dewar for Cryogenic Use/liquid Nitrogen Cylinders/vessels

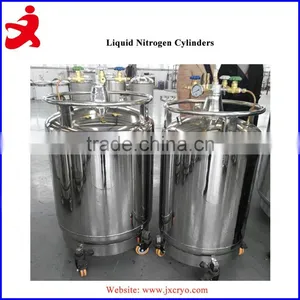

YDZ-50 50L Self-pressurized Liqud Nitrogen Storage Dewar for Cryogenic Use/liquid Nitrogen Cylinders/vessels

YDZ-50 50L Self-pressurized Liqud Nitrogen Storage Dewar for Cryogenic Use/liquid Nitrogen Cylinders/vessels thumbnail-3

YDZ-50 50L Self-pressurized Liqud Nitrogen Storage Dewar for Cryogenic Use/liquid Nitrogen Cylinders/vessels thumbnail-4

YDZ-50 50L Self-pressurized Liqud Nitrogen Storage Dewar for Cryogenic Use/liquid Nitrogen Cylinders/vessels thumbnail-5

YDZ-50 50L Self-pressurized Liqud Nitrogen Storage Dewar for Cryogenic Use/liquid Nitrogen Cylinders/vessels thumbnail-6

YDZ-50 50L Self-pressurized Liqud Nitrogen Storage Dewar for Cryogenic Use/liquid Nitrogen Cylinders/vessels photo-1

YDZ-50 50L Self-pressurized Liqud Nitrogen Storage Dewar for Cryogenic Use/liquid Nitrogen Cylinders/vessels photo-2

YDZ-50 50L Self-pressurized Liqud Nitrogen Storage Dewar for Cryogenic Use/liquid Nitrogen Cylinders/vessels photo-3

YDZ-50 50L Self-pressurized Liqud Nitrogen Storage Dewar for Cryogenic Use/liquid Nitrogen Cylinders/vessels photo-4

YDZ-50 50L Self-pressurized Liqud Nitrogen Storage Dewar for Cryogenic Use/liquid Nitrogen Cylinders/vessels photo-5

YDZ-50 50L Self-pressurized Liqud Nitrogen Storage Dewar for Cryogenic Use/liquid Nitrogen Cylinders/vessels photo-6

US$ 1,048 - 1,052 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

Model Number:

YDZ-50

Contact Supplier Request Quote Chat Now

Xinxiang Jinxin Import And Export Machinery Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai Guangzhou Tianjin or any port of China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name JX

Model Number YDZ-50

YDZ-30 Details

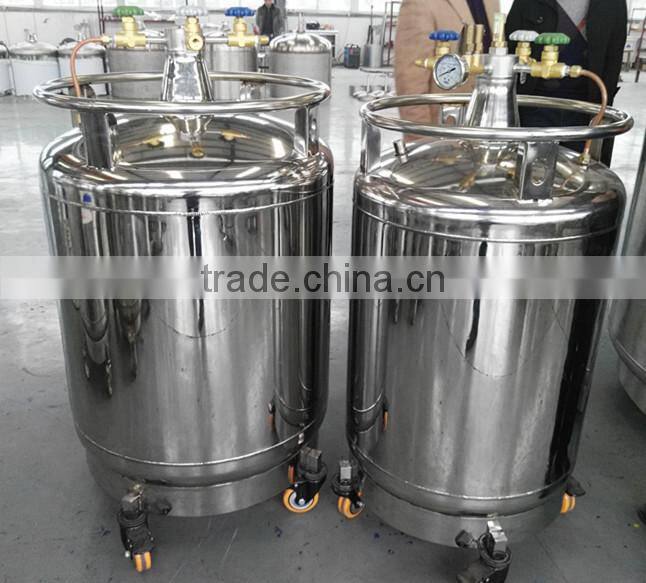

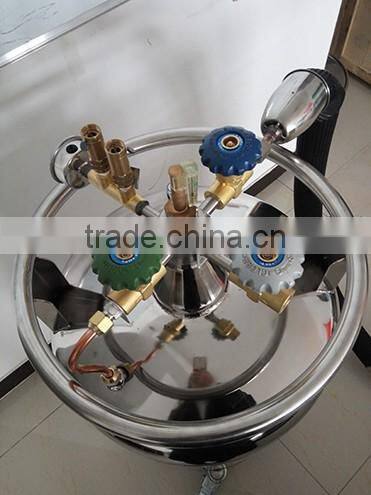

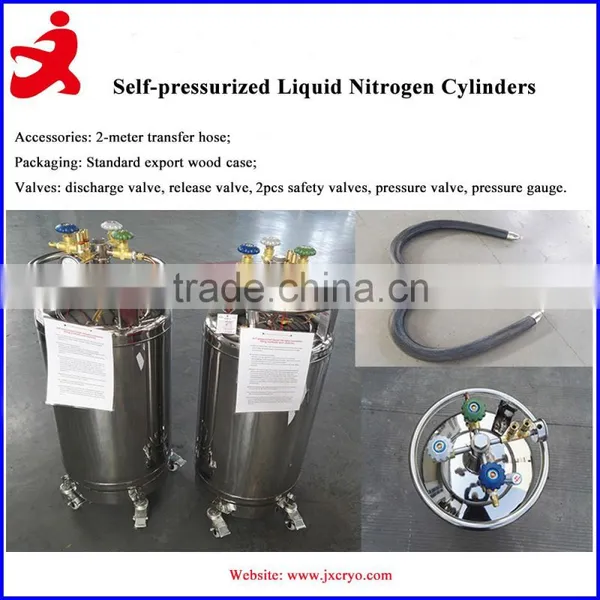

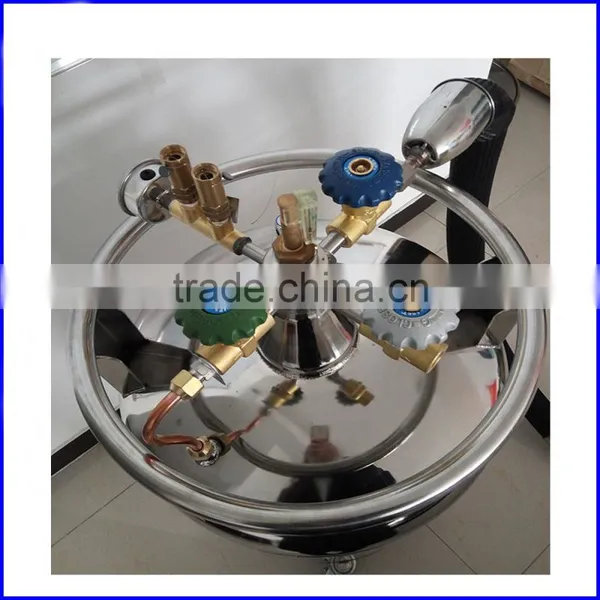

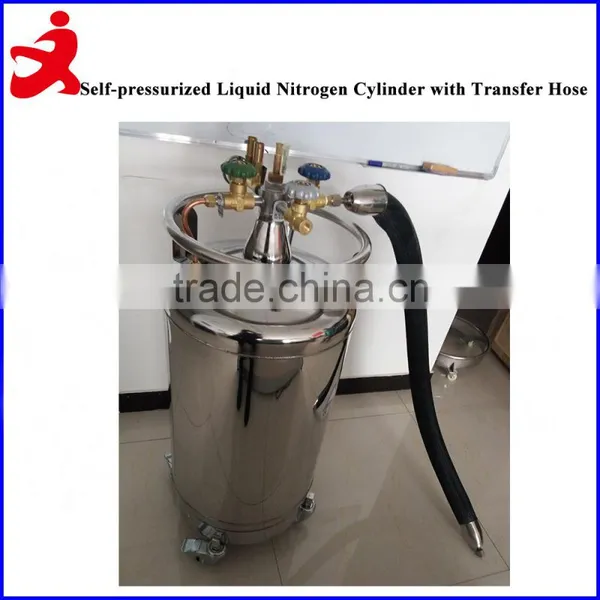

As you have seen below, our self-pressure liquid nitrogen cylinder can be equipped : a standard 2-meter vacuum hose for transferring liquid nitrogen use; double safety valves for relieving pressure in the inner tank and protect the stability of tank; a release valve; a discharging valve; a pressure building valve for easily discharging liquid nitrogen; a pressure gauge.

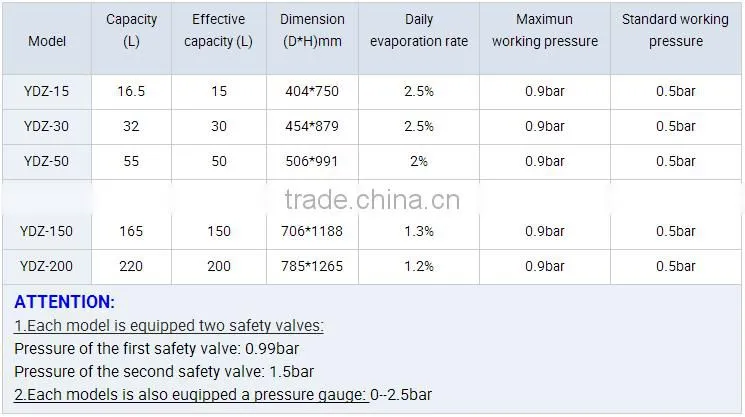

Important specifications for normally working
Standard working pressure: 0.5bar when the data in pressure gauge reaches 0.5bar, open the discharging valve, then the cylinder will automatically discharging liquid nitrogen itself. This is an economic way to transfer LN2 at pressure 0.5bar
Maximun working pressure: 0.9bar Generally, for safety use, our cylinders usually are set at the range of 0.5bar--0.9bar, which is a safe and economic operating way. Because we should take the pressure of safety valves into consideration Or the pressure can be set according to your request, then we will provide you a suitable and safe solution about operating.
The pressure of safety valves: there are double safety valves to keep the stability of inner tank Pressure of the first safety valve: 0.99bar Pressure of the second safety valve: 1.5bar
Indication of pressure gauge: 0--2.5bar

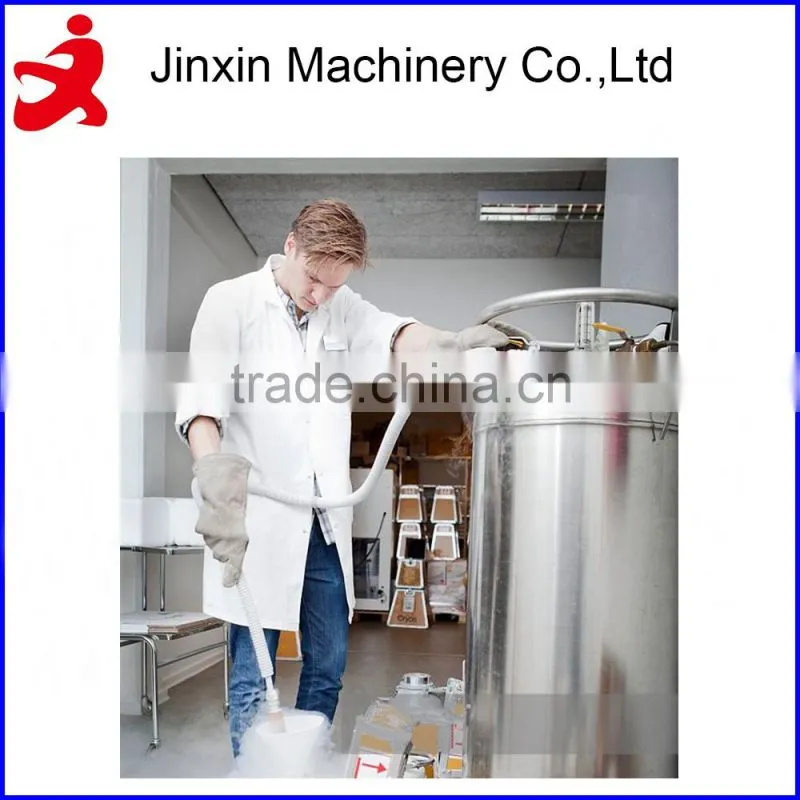

Whatever you want to fill liquid nitrogen to this cylinder, or discharge liquid nitrogen from this cylinder to another one, we can provide you a professional filling methods and discharging instruction.
WhatsApp/Mobile: +86 18336073803; Skype: miracle-vicky; Website:

YDZ Introduction

This is kind of self-pressure liquid nitrogen cylinder is designed for storing and transporting liquid nitrogen for lan use. It is widely used in laboratory research, industry, animal breeding for filling liquid nitrogen to small dewars.

Packing & Delivery

Packing: Standard Fumigation free export wooden case
Delivery: By sea; by air; by air express; by land, we need provide you more suitable shipping way according to your quantity

Other Cryogenics

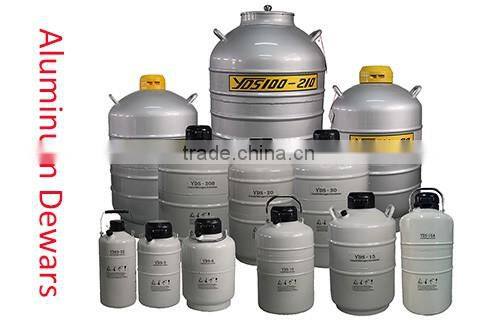

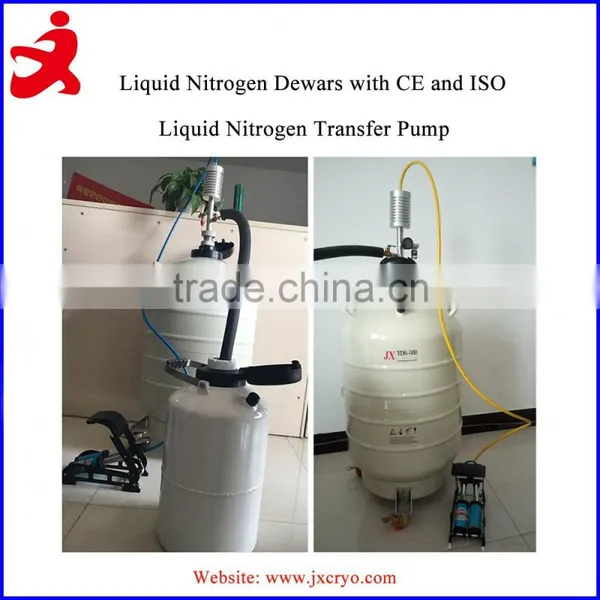

Aluminum liquid nitrogen dewar

Click here, view more>>>

Cryobiobank

Click here, view more>>>

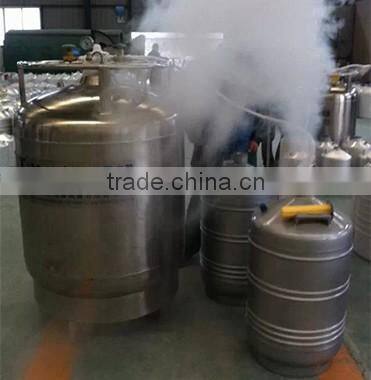

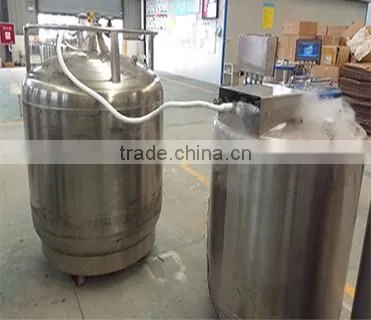

Through YDZ series to fill liquid nitrogen to dewars & cryobanking

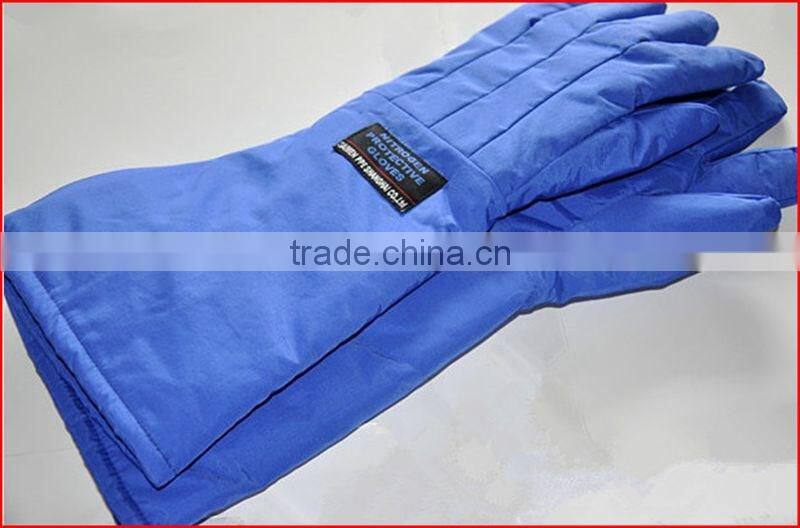

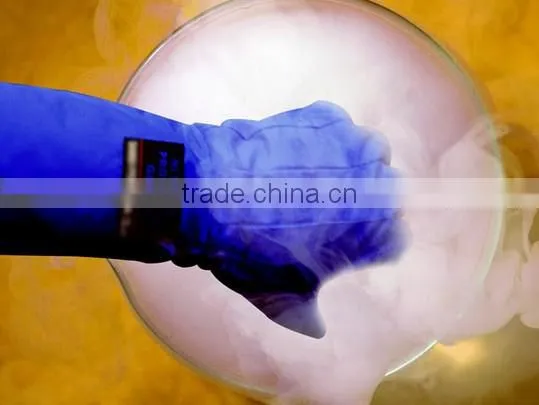

Cryogernic Gloves

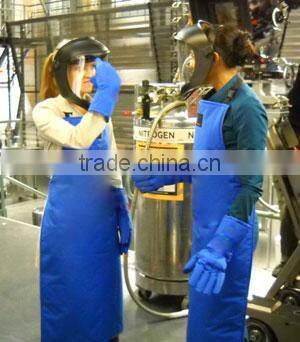

Whatever ice cream making methods you prefer to, please pay attention to prevent the liquid nitrogen from freezing your hands. Maybe you need cryogenic gloves/apron against the low temperature.
Click here, view more>>>
