A. Brief Introductions:
Cooling Pad, also called wet pad, made of hydroscopicity kraft paper, is mainly used for the cooling system, humidification system and filter system. The process includes gluing, drying, corrugating, shaping, solidifying, cutting and polishing. Common specifications are 7090, 6090 and 5090 with 45 * 45 angle. Special sizes or dimensions need made or required individually.
Jindun Cooling Pad is made of water absorbing kraft paper. It boasts a series of superior quality, such as strong hydroscopicity, high wet stiffness, corrosion resistance and long usable life etc. It absorbs the water naturally and the water absorbing capacity is 60-70mm/5min or 200mm/1.5h. The cooling efficiency is by up to 80%.
Our products contain no surfactant and harmful chemicals like phenol and no harmful to health during installation and application. It belongs to green and environmental products, meanwhile, it has approved "RoHS" certified.

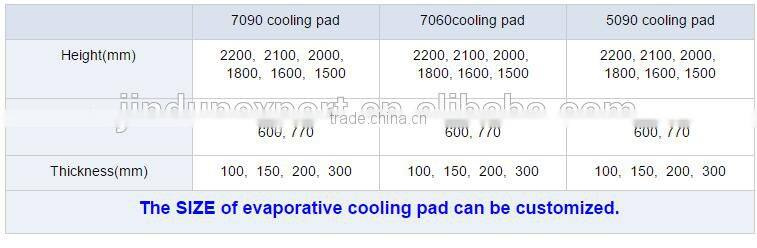

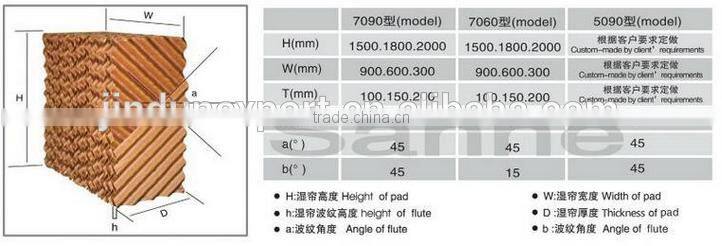

B. Specification and Dimensions:
Model |
7090 |
6090 |
5090 |
Height (mm) |
1500, 1800, 2000 |
1500, 1800, 2000 |
1500, 1800, 2000 |
Width (mm) |
300, 600 |
300, 600 |
300, 600 |
Depth (mm) |
100,150,200,300 |
100,150,200,300 |
100,150,200,300 |
Flute Height |
7mm |
6mm |
5mm |
Angle (o) |
45*45 |
45*45 |
45*45
|
