Paper egg/fruit/beer tray making machine/egg tray forming machine/egg box making machine
Popular pulp molding egg tray making machine/ chicken egg tray making machine price
The major equipment of the machine are three parts include: Pulp Making System, Molding System,
Drying system and Stacking system
1. Pulping system
Pulper,2M3,22kw; vibration screen, 0.9,3kw; consistency controller;mixer; pulp pump;water pump,control cabinet for pulping system,etc.
2. Forming system
Consist of 8pcs of forming platens and 1 pc of transfering platen. Platen size: 1450 x 450mm. 4pcs of 30cell egg
tray molds can be mounted on each forming platen There are 32pcs of forming molds and 4pcs of transfering
molds in total. Forming efficiency:13to15cycles/min;equipped with vacuum auto drain system, preheating system,
auto cleaning system for the forming mold and auto control cabinet..
3. Drying system
Outline dimension:14000x2130x3700mm;6 layers conveying chain;heated concentratedly;one burner with
international famous brand;The energy for option: LPG,GAS,diesel oil,Equipped with auto control cabinet.
4.Stacking system
The finished products will be counted and stacked automatically after drying.
5. Height limit pressor
paremeter of pulp molding egg tray making machine,
1, | Egg tray mould quantity | 1pcs | 2pcs | 3pcs | 4pcs | 6pcs |
2, | Raw material | Waste paper | Waste paper | Waste paper | Waste paper | Waste paper |
3, | Output for egg tray | 350pcs/hour | 700pcs/hour | 1000pcs/hour | 1300pcs/hour | 2000pcs/hour |
4, | Net weight per piece (gram) | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g |
5, | The volume of waste paper consumed | 0.025ton / hour | 0.06ton / hour | 0.1ton / hour | 0.13ton / hour | 0.2ton / hour |
6, | The volume of water consumed | 0.05ton / hour | 0.12tons | 0.15ton / hour | 0.2ton / hour | 0.4ton / hour |
7, | Operators number | 2-3workers | 3-4workers | 4-6workers | 4-6workers | 5-7workers |
8, | Area of workshop | More than 100M² | More than 140M² | More than 140M² | More than 140M² | More than 200M² |
9, | Capacity of power | 25KW | 40KW | 50KW | 60KW | 100KW |
the photos of pulp molding egg tray making machine
The loading container photos

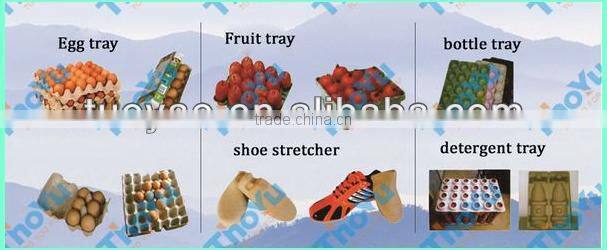

different egg trays:
during the operate.
To Ensure your priority, you can contact Nancy by Instant Messenger shown in the Signature:
