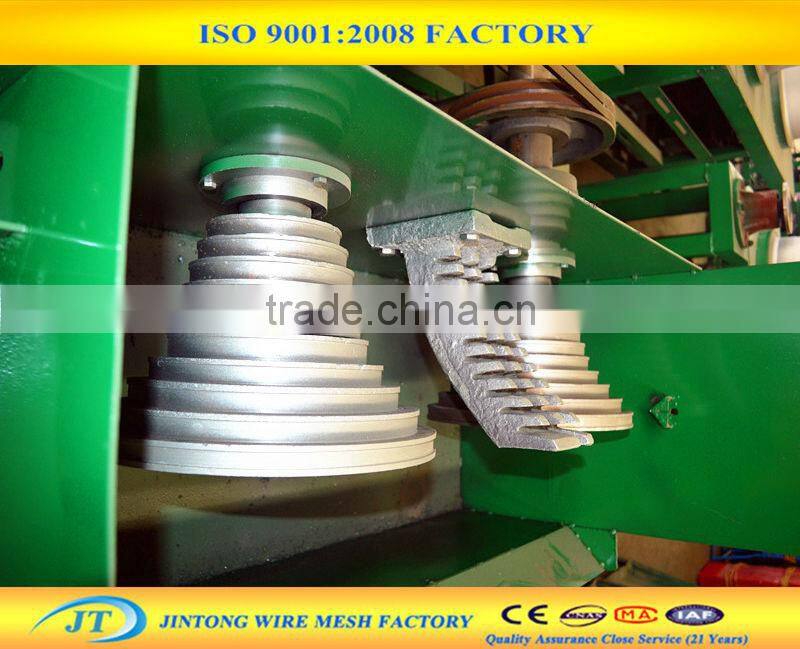

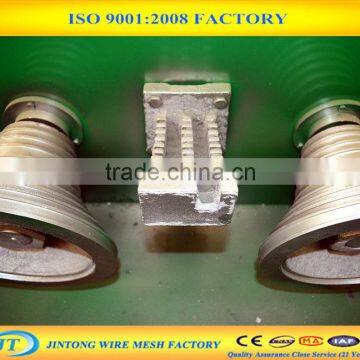

2.0mm to 0.5mm Water Tank Type Used Wire Drawing Machine
|

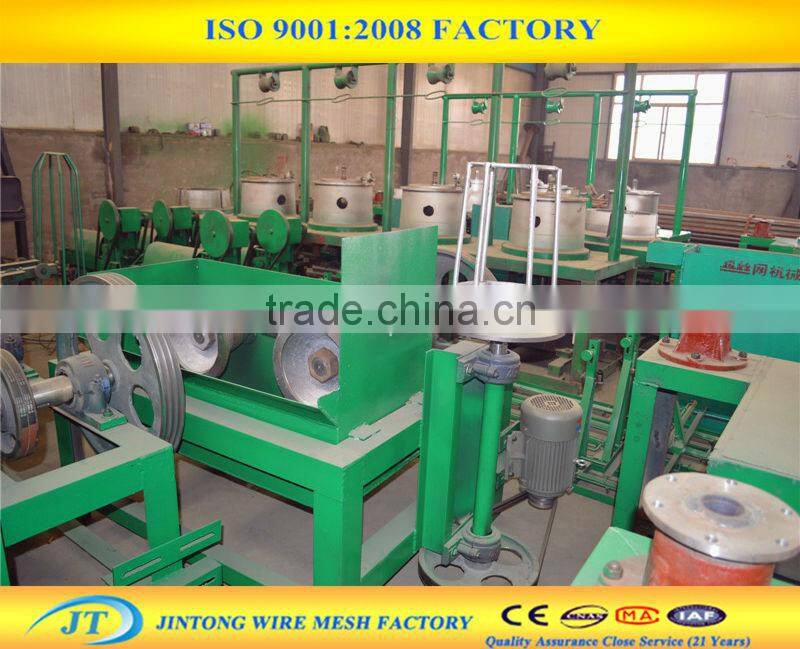

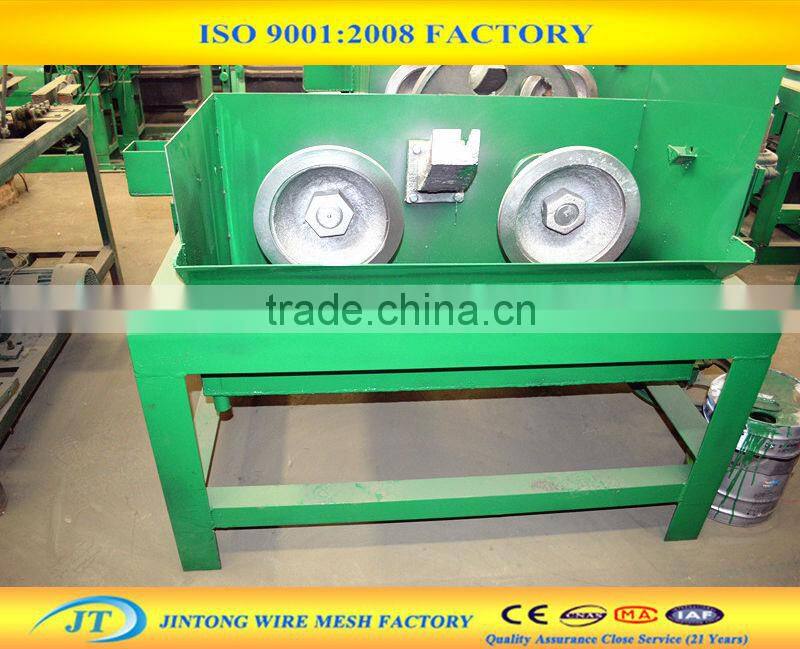

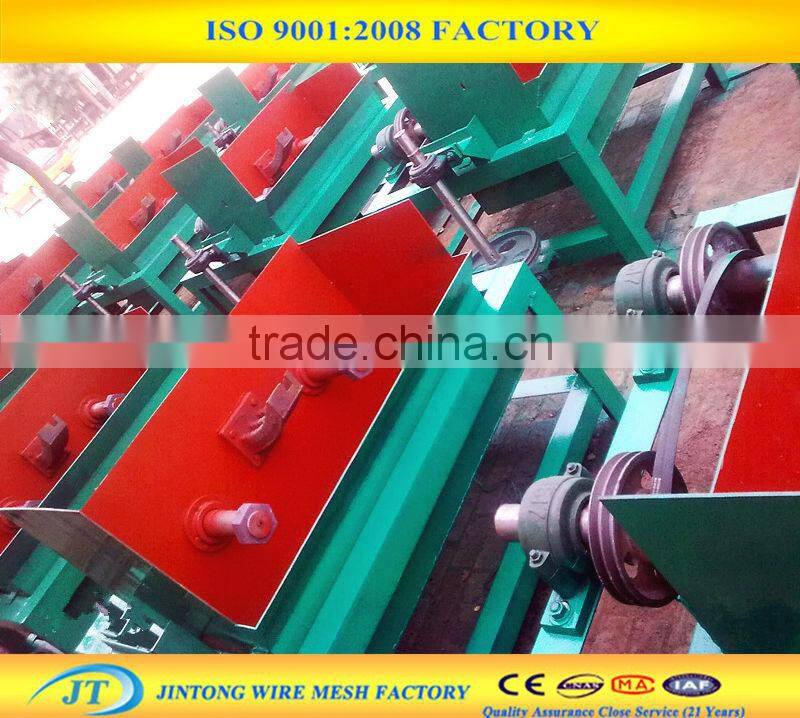

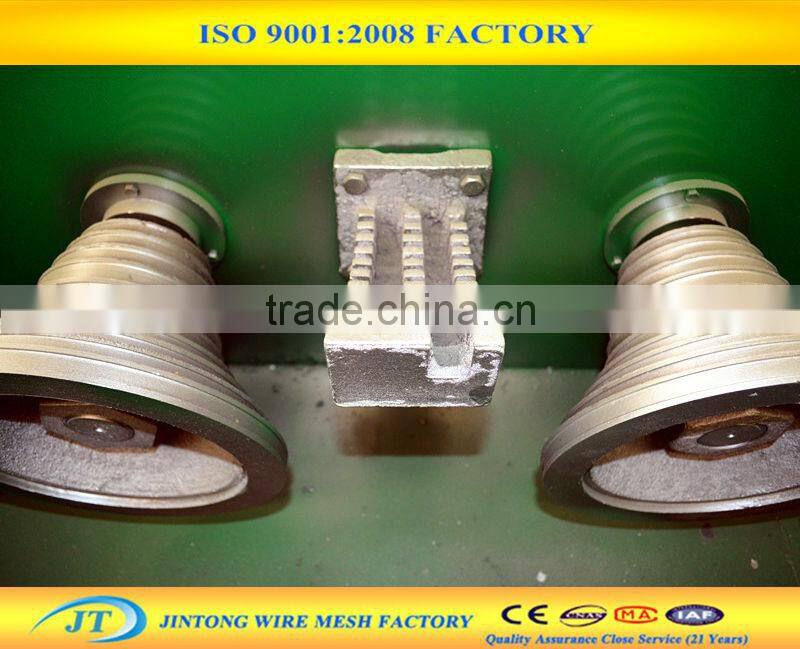

Feature of wire drawing machine: Water tank type wire drawing machine the production of the water tank type wire drawing machine is used in wire-drawing of low, medium and high carbon steel wire, stainless steel wire, prestressed steel wire, alloy steel and so on.
The equipment for steel cord, hose wire, spring steel, tempered steel wire tires, gas protection welding wire, and stainless steel wire. |
|
Main Parameter:
Item |
Type 1 |
Type 2 |
Max. wire coming |
6.5mm |
3.5mm |
Mini. Wire outing |
3.5mm |
1.4mm |

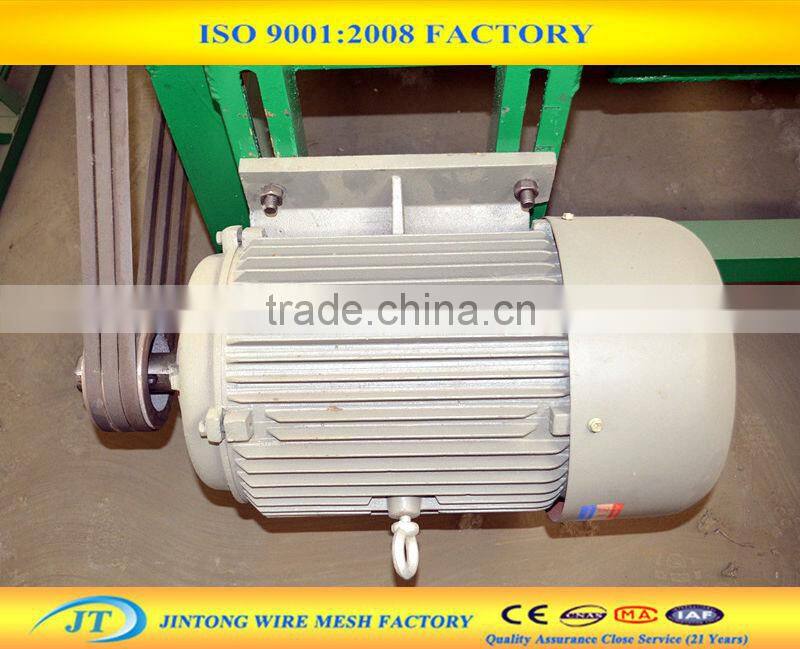

Unit Motor Power |
90Kw 6class slip ring motor |
55Kw 6class slip ring motor |
Total weight |
6T |
3T |
Speed |
5m/second |
5m/second |
Total compression ratio |
80% |
75% |
Average compression ratio |
15% |
15% |
Item |
Type 3 |
Type 4 |
Max. wire coming |
4.0mm |
2.0mm |
Mini. Wire outing |
1.4-1.8mm |
0.5-0.7mm |
Motor power |
39KW |
13.2KW |
Total weight |
2T |
700kg |
Out put |
5-7tons/24hours |
0.8-1.2tons/24hours |
Free fumigation safe Wood case package. or as customer's detail request.
Inquiry response: will be replied in 24hours
We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our technician to help install the machines in your country, and also could supply all the spare parts with cost price if customer need.
- OEM and ODM: changing on design , color , acceptable(welcome )
- develop on artwork and sketch : acceptable
- Delivery time: 1 week for our own design. 15-25days for cusmoized model.
- Payment terms: T/T, L/C, Western Union
- MOQ: 1set can be acceptable for trail order.
- Over 3sets can have wholesale price. Welcome to join us as our sales agent in your market.
Who you are?
1. We are JINTONG WIRE MESH FACTORY .
2. Mainly products are: perforated mesh series, farm products series, fencing products series, and machine series, etc.
3. Occupied area:7,000 square meters.
Why choose us?
Professional wire mesh factory since 1992 years.
Reasonable Price with Quality assurance. Timely delivery; Close service.
Sophisticated production equipment.
Professional staff and the management of the production workers Strictly quality control inspection system.
QA/QC Introduction:
We have passed the ISO 9001:2008 in the year of 2011 and also have quality supervision staff to monitor
the production process.
- QA/QC Introduction-- JINTONG FACTORY Strictly control quality inspection.
- Quality inspection department work is to inspect quality each day in production workshop.
- We must ensure that every product to attain to the quality requirements of the customers.
- We can pass the third party to test the product quality, and ensure that the quality meet the customers' requirements.
With the development in production technology, All kinds of wire mesh and wire that we produced have
reached advanced level, the products are exported to Southeast Asia, the Middle East, Canada, the United States
and other countries and regions, Our company rely on the high quality, good reputations, the high quality after
sale service,we get the best reputations from most of our customers.
Following are some photos which shown our meeting with customers.
